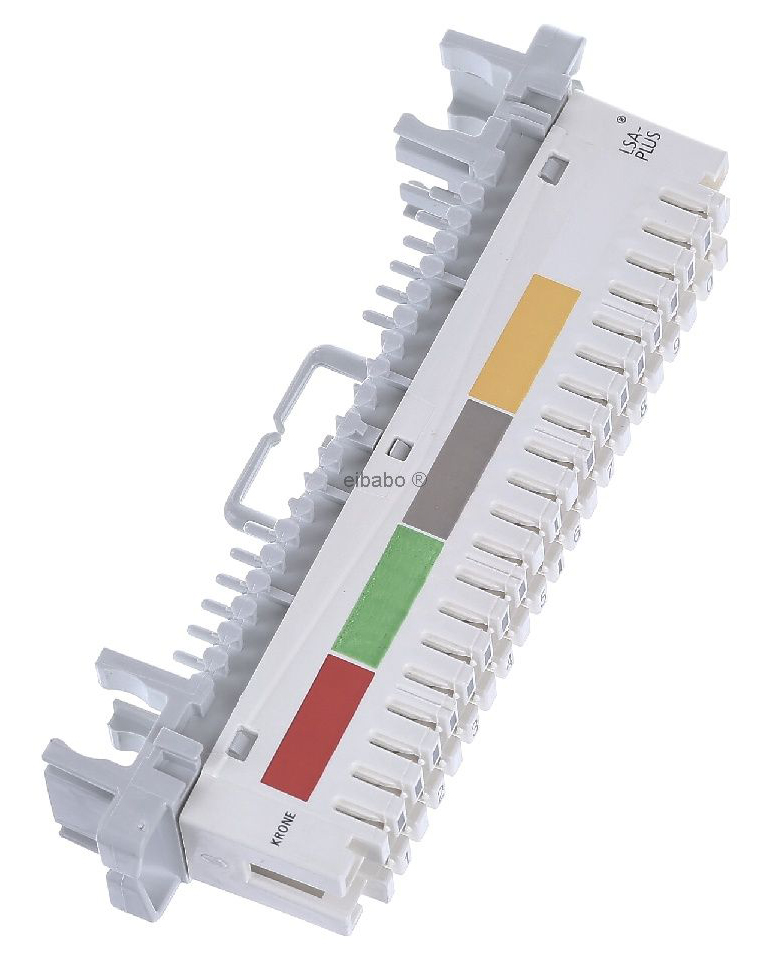

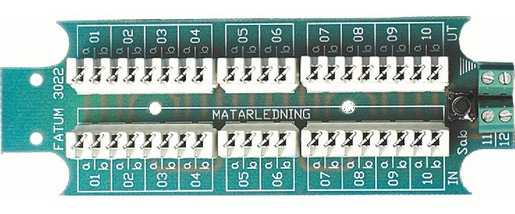

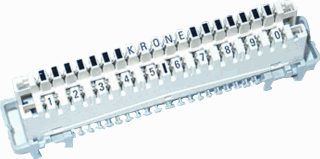

Telecommunication terminal strip EC000371
A terminal block or connector strip used in telecommunication or data transmission systems to establish connections between single conductors or cable cores. Telecommunication strips support a variety of connection technologies, including but not limited to insulation displacement (IDC), screw terminals, and soldering.
Features 14
- 1
ModelEF000010
Choose one value
Connection stripEarthing stripSwitch stripSeparating stripDistribution stripOther - 2
Connection typeEF000124
Choose one value
ID3000Solder/solderSolder/plug-inScrew/solderScrew/screwScrew/solder - screw/solderLSA PlusLSA-Plus/screwLSA ProfileLSA Profile/screw - 3
Built-in possibility for overvoltage protectionEF000392
Yes or no
YesNo - 4
With strip codeEF000391
Yes or no
YesNo - 5
Type of codingEF015104
Choose one value
1-001-10Colour codeOther - 6
ColourEF000007
Choose one value
BrownGreyRedWhiteOther - 7
LengthEF001438
A number in mm
- 8
WidthEF000008
A number in mm
- 9
HeightEF000040
A number in mm
- 10
Mounting sizeEF020751
A number in mm
- 11
Max. number of dual coresEF003664
A number
- 12
Conductor diameterEF004211
A range, from and to, in mm
- 13
Min. AWG-sizeEF012178
Choose one value
2500 kcmil2000 kcmil1600 kcmil1575 kcmil1250 kcmil1000 kcmil750 kcmil600 kcmil500 kcmil400 kcmil - 14
Max. AWG-sizeEF012179
Choose one value
2500 kcmil2000 kcmil1600 kcmil1575 kcmil1250 kcmil1000 kcmil750 kcmil600 kcmil500 kcmil400 kcmil
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
