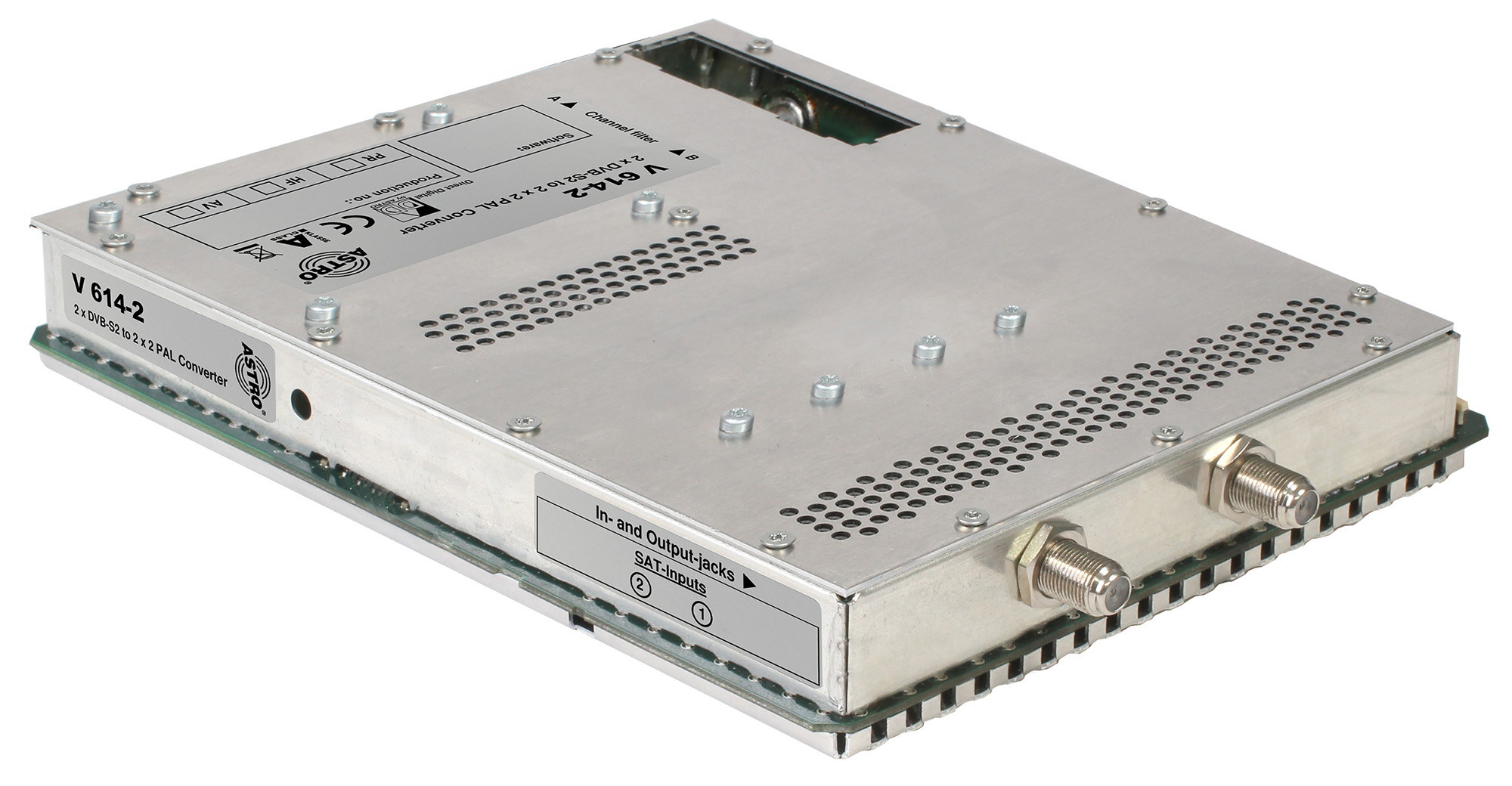

Module for head end station EC000419

A component used to expand or enhance the functionality of a head-end station.

Published
Antenna and satellite technique EG000033

Features 2

  1. 1

    Input signalEF000505

    Choose one value

    ADRAudio/Video (AV)Cable-digital-TV (QAM, DVB-C)SAT-analogue-TV (PAL)SAT-digital-TV (QPSK, DVB-S)SAT audio sub carriersTerrestrial-analogue TV (PAL)Terrestrial-digital TV (COFDM, DVB-T)FM
  2. 2

    Output signalEF000506

    Choose one value

    Audio/Video (AV)Cable-digital-TV (QAM, DVB-C)SAT-analogue-TV (PAL)SAT-digital-TV (QPSK, DVB-S)Terrestrial-analogue TV (PAL)Terrestrial-digital TV (COFDM, DVB-T)FM

Codes after each name are ETIM feature codes. Use them, not the names, in product data.

Find an ETIM class

Search by

  • Class code for the fastest match, such as EC002738
  • Description: words from the class name, in the selected language
  • Synonym: another name the class is known by

Product or modelling class?

Product classes (EC) describe products you can buy, such as luminaires, cables or valves. Modelling classes (MC) describe components for CAD and BIM design, with drawings and connection points.
