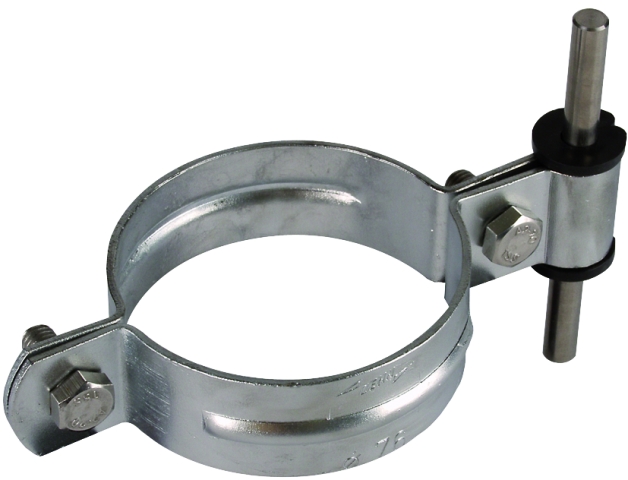

Conductor fixing for lightning protection EC000508

A device used to fasten lightning conductors along surfaces.

Features 13

  1. 1

    Mounting type conductorEF004183

    Choose one value

    With grip clampWith screw clampWith snap clampOther
  2. 2

    Suitable for diameter round conductorEF004195

    A range, from and to, in mm

  3. 3

    Suitable for width flat conductorEF012268

    A range, from and to, in mm

  4. 4

    Material of holderEF004251

    Choose one value

    AluminiumBrassCopperCopper/bronzeCopper/red bronzeCopper/plasticMalleable cast ironPlasticStainless Steel 304Stainless steel 304 coppered
  5. 5

    Mounting type holderEF004185

    Choose one value

    Bore holeBore hole with M threadRain pipeScrewedTension bandWith hammer-drive pinWith plugWith pointed wood screw threadOther
  6. 6

    Material of carrierEF004254

    Choose one value

    AluminiumCopperStainless Steel 304Stainless Steel 316Steel galvanisedZinc die-castOther
  7. 7

    Material of saddle clampEF008276

    Choose one value

    AluminiumBrassCopperRed cast ironMalleable cast ironPlasticStainless Steel 304Stainless Steel 316Steel galvanisedZinc die-castOther
  8. 8

    Material base partEF008277

    Choose one value

    AluminiumBrassCopperRed cast ironMalleable cast ironPlasticStainless Steel 304Stainless Steel 316Steel galvanisedZinc die-castOther
  9. 9

    Thread Size (Metric)EF003563

    A number

  10. 10

    Pipe chucking rangeEF004232

    A range, from and to, in mm

  11. 11

    Wall distanceEF005492

    A range, from and to, in mm

  12. 12

    Assembly height conductor holderEF012267

    A number in mm

  13. 13

    Suited for EX-applicationsEF001779

    Yes or no

    YesNo

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
