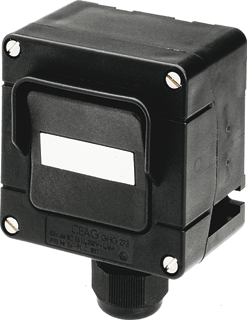

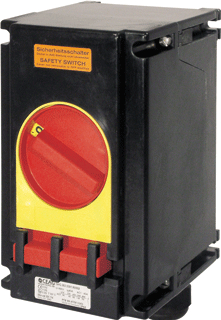

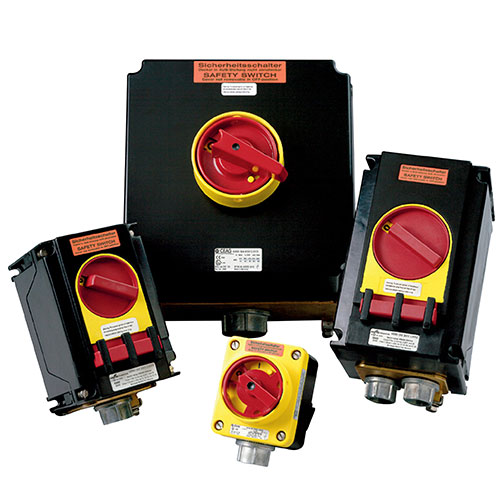

Explosion proof switch EC000522

Explosion-proof device which connects or disconnects an electrically conductive connection by means of two electrically conductive materials or a semiconductor device.

Ready for publication
Industrial sockets/plug applications EG000014

Features 33

  1. 1

    Housing materialEF001596

    Choose one value

    AluminiumBrassPlasticStainless steelSteelOther
  2. 2

    ModelEF000010

    Choose one value

    Dahlander switchEmergency StopLevel switchOff switchPole switchPush buttonReverserReversing Dahlander switchReversing pole-switchReversing switch
  3. 3

    Number of polesEF001391

    A number

  4. 4

    Suitable for Ex-zone gasEF005728

    Choose one value

    0, 1, 21, 22
  5. 5

    Suitable for Ex-zone dustEF008404

    Choose one value

    20, 21, 2221, 2222
  6. 6

    Degree of protection (IP)EF005474

    Choose one value

    IP00IP10IP12IP20IP21IP22IP23IP24IP2XIP30
  7. 7

    Ex-classEF000854

    Choose one value

    IIAIIBIIC
  8. 8

    Protection class according to IEC 61140EF000004

    Choose one value

    IIIIII
  9. 9

    Temperature class according to directive 94/9/ECEF001644

    Choose one value

    T1T2T3T4T5T6
  10. 10

    Ambient temperatureEF002386

    A range, from and to, in °C

  11. 11

    Housing colourEF000136

    Choose one value

    AluminiumBlackBlueBrownGreyRedStainless steelWhiteYellowOther
  12. 12

    Mounting methodEF000003

    Choose one value

    Built-inConductor barDIN railSurface mountingOther
  13. 13

    HeightEF000040

    A number in mm

  14. 14

    WidthEF000008

    A number in mm

  15. 15

    DepthEF000049

    A number in mm

  16. 16

    InterlockableEF006281

    Yes or no

    YesNo
  17. 17

    Padlock lockingEF001163

    Yes or no

    YesNo
  18. 18

    Voltage typeEF000187

    Choose one value

    ACDCAC/DC
  19. 19

    Rated voltageEF000228

    A number in V

  20. 20

    Rated currentEF000227

    A number in A

  21. 21

    Number of auxiliary contacts as normally open contact (NO)EF001376

    A number

  22. 22

    Number of auxiliary contacts as normally closed contact (NC)EF001377

    A number

  23. 23

    Connection typeEF000124

    Choose one value

    CrimpingFlat plug-in connectionInsulation displacement connectorPush-in clampScrew connectionSolderOther
  24. 24

    Type of control elementEF006976

    Choose one value

    Door coupling rotary driveKeyPush buttonRockerRocker leverWing knobTurn buttonOther
  25. 25

    Version as emergency stop installationEF006959

    Yes or no

    YesNo
  26. 26

    Connectable conductor cross section multi-wiredEF007343

    A range, from and to, in mm²

  27. 27

    Connectable conductor cross section solid-coreEF007337

    A range, from and to, in mm²

  28. 28

    Activating undervoltage releaseEF015790

    A range, from and to, in V

  29. 29

    Activation shunt tripEF015789

    A range, from and to, in V

  30. 30

    Number of cable feed-through M20EF016221

    A number

  31. 31

    Number of cable feed-through M25EF016222

    A number

  32. 32

    Number of cable feed-through M32EF016223

    A number

  33. 33

    Number of cable feed-through M40EF016225

    A number

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
