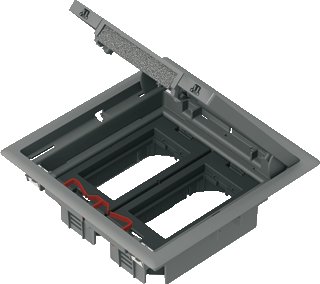

Service box for subfloor installation
Code
EC000893Version
5
Group
Subfloor electrical installation systems (EG000005)Release
ETIM-9.0
Features
01 | Nominal dimension (mm) EF000132 - Numeric | |
02 | Min. height finishing layer (mm) EF007935 - Numeric | |
03 | Levelling range (mm) EF005136 - Range | |
04 | Suitable for subfloor duct countersunk (closed) EF005792 - Logical | |
05 | Suitable for subfloor duct overhead closed EF006408 - Logical | |
06 | Duct height (mm) EF005459 - Range | |
07 | Duct width (mm) EF007884 - Range | |
08 | Built-in opening for floor column EF004641 - Logical | |
09 | Built-in opening for built-in unit EF007738 - Alphanumeric | |
10 | Number of appliances to build in EF000219 - Numeric | |
11 | Material side wall EF008133 - Alphanumeric | |
12 | Suitable for placing of sealing EF004594 - Logical | |
13 | Decoupling possibility cover from base unit EF007745 - Logical | |
14 | With bottom plate EF004544 - Logical | |
15 | Degree of protection (IP) EF005474 - Alphanumeric |
Synonyms
Outlet box for underfloor installation
Service box for subfloor installation
Service box for underfloor installation
Terminal box
