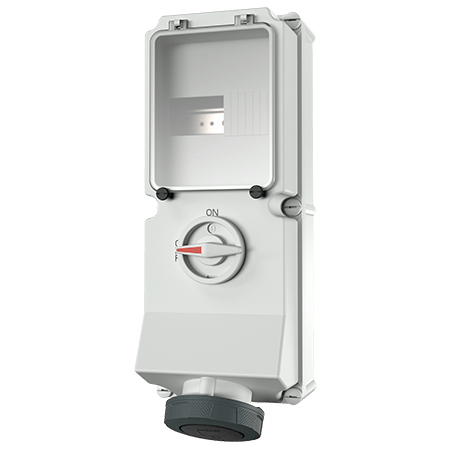

CEE socket outlet, disconnectable, with fuse (IEC 60309) EC001324
Features 18
- 1
IEC-amperageEF002647
A number in A
- 2
Amperage according to UL/CSA (for UL-version) (no longer used)EF002648
A number in A
- 3
Number of polesEF001391
A number
- 4
Voltage according to EN 60309-2EF006726
Choose one value
400 V (50+60 Hz) red230 V (50+60 Hz) blue110 V (50+60 Hz) yellow500 V (50+60 Hz) black200-250 V (50+60 Hz) blue380-415 V (50+60 Hz) red600-690 V (50+60 Hz) black400-440 V (50+60 Hz) red50-500 V (100-300 Hz) green50-500 V (> 300-500 Hz) green - 5

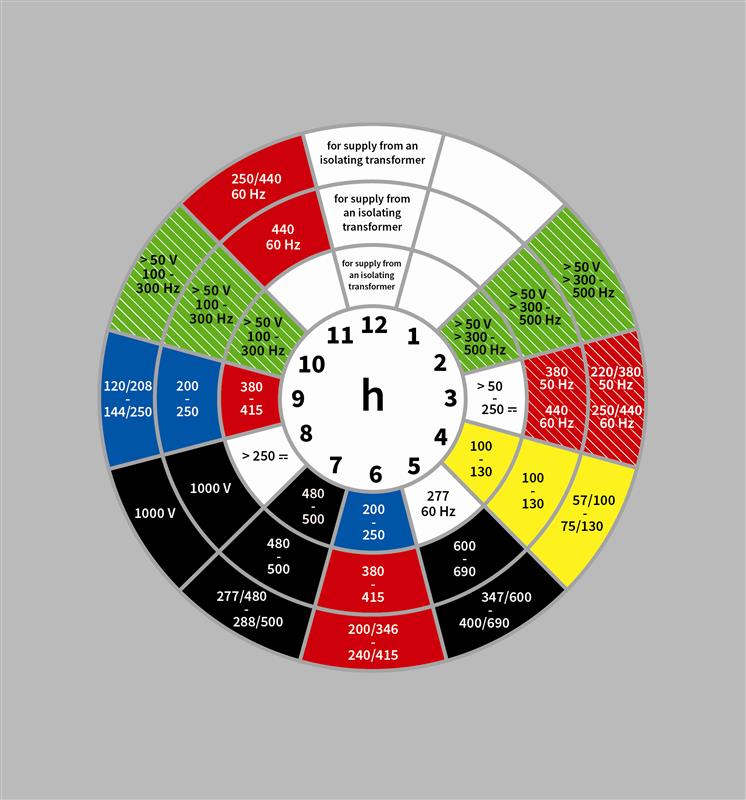

Clock hour positionEF006584
A number in h
- 6
Identification colourEF006725
Choose one value
BlueYellowGreyGreenRedBlackPurpleWhiteOther - 7
Power lossEF005387
A number in W
- 8
Degree of protection (IP)EF005474
Choose one value
IP00IP10IP12IP20IP21IP22IP23IP24IP2XIP30 - 9
SwitchEF000033
Choose one value
Electrical lockingElectronic lockingMechanical lockingWith on/off switch, without lockingWithout on/off switch - 10
Type of switchEF003496
Choose one value
Auxiliary contactsSpecial switchNone - 11
With earth leakage switchEF005047
Yes or no
YesNo - 12
Empty locations on mounting railEF002658
Yes or no
YesNo - 13
Housing materialEF001596
Choose one value
AluminiumSteelBrassPlasticRubberOther - 14
ModelEF000010
Choose one value
Top coverBase unitBase unit and cover - 15
ProtectionEF000781
Choose one value
Mini circuit breakerD-systemD0-systemNHIsolating transformerCylindrical fuseOtherMixedNone - 16
Contact materialEF004019
Choose one value
CuSnCuZnOther - 17
Surface coating contactsEF002558
Choose one value
GalvanisedTinnedNickel-platedChromatedBichromatedSilver-platedGiltAg/Sn20OtherUntreated - 18
Military modelEF006050
Yes or no
YesNo
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
