EC001443

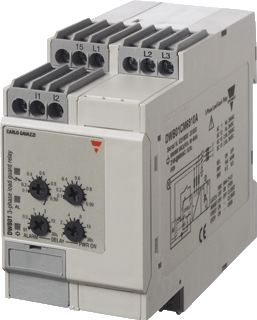

Relays. Effective power (cos phi) monitoring relay; Power factor monitoring relay (cos φ); Relay

Code:

Version:

Group:

Relays

EG000019

Release:

DYNAMIC, ETIM-9.0, ETIM-10.0

Features

	01		Type of electrical connection EF003961 - Alphanumeric
	02		With detachable clamps EF003340 - Logical
	03		External power supply required EF003292 - Logical
	04		Supply voltage type EF002991 - Alphanumeric
	05		Supply voltage AC 50 Hz (V) EF007532 - Range
	06		Supply voltage AC 60 Hz (V) EF007533 - Range
	07		Supply voltage DC (V) EF007534 - Range
	08		Voltage measuring range (V) EF002486 - Range
	09		Current measuring range (A) EF000417 - Range
	10		Rated operating frequency (Hz) EF007024 - Range
	11		Number of phases EF000351 - Numeric
	12		Adjustable setting value for Cos-Phi EF003418 - Range
	13		Minimum adjustable start delay when power is applied (s) EF008190 - Numeric
	14		Maximum adjustable start delay when power is applied (s) EF008189 - Numeric
	15		Minimum adjustable off-delay time (s) EF008192 - Numeric
	16		Maximum adjustable off-delay time (s) EF008191 - Numeric
	17		Number of contacts normally closed EF008255 - Numeric
	18		Number of contacts normally open EF008256 - Numeric
	19		Number of change-over contacts EF008257 - Numeric
	20		Voltage type (operating voltage) EF005294 - Alphanumeric
	21		Operating voltage at AC 60 Hz (V) EF008207 - Range
	22		Operating voltage at AC 50 Hz (V) EF008206 - Range
	23		Operating voltage at DC (V) EF008208 - Range
	24		Rated switch current (A) EF006706 - Numeric
	25		Width (mm) EF000008 - Numeric
	26		Height (mm) EF000040 - Numeric
	27		Depth (mm) EF000049 - Numeric

Synonyms

Effective power (cos phi) monitoring relay

Power factor monitoring relay (cos φ)

Relay

Power factor monitoring relay (cos φ)
