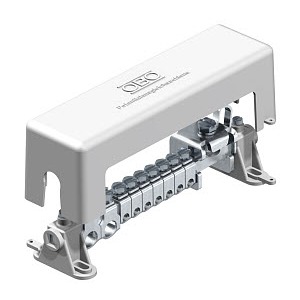

Equipotential bonding bar EC001470

Published Earthing, lightning and surge protection EG000021

Features 20

  1. 1

    Construction typeEF000767

    Choose one value

    Surface mounting fixSurface mounting modular
  2. 2

    ModelEF000010

    Choose one value

    With covering capWithout covering capIn housingOnly clamp
  3. 3

    InsulatorEF004200

    Yes or no

    YesNo
  4. 4

    HeightEF000040

    A number in mm

  5. 5

    WidthEF000008

    A number in mm

  6. 6

    LengthEF001438

    A number in mm

  7. 7

    Number of connections round conductor totalEF008278

    A number

  8. 8

    Number of connections round conductor 8 mmEF004178

    A number

  9. 9

    Number of connections round conductor 10 mmEF004177

    A number

  10. 10

    Number of connections round conductor 8-10 mmEF004179

    A number

  11. 11

    Number of connections flat conductor 30 mmEF004171

    A number

  12. 12

    Number of connections flat conductor 40 mmEF004172

    A number

  13. 13

    Number of connections conductor to 6 mm² fixedEF004175

    A number

  14. 14

    Number of connections conductor to 16 mm² fixedEF004173

    A number

  15. 15

    Number of connections conductor to 25 mm² fixedEF004174

    A number

  16. 16

    Number of connections conductor to 95 mm² fixedEF004176

    A number

  17. 17

    Material of contact railEF004253

    Choose one value

    SteelStainless steel 304 (V2A)Stainless steel 316 (V4A)CopperBrass
  18. 18

    Surface of the contact railEF004227

    Choose one value

    Galvanic/electrolytic zinc platedGalvanic tinnedHot-dip galvanisedNickel-platedOtherUntreated
  19. 19

    Material of clampEF004252

    Choose one value

    SteelStainless steel 304 (V2A)Stainless steel 316 (V4A)CopperBrass
  20. 20

    Surface of the clampEF004226

    Choose one value

    Galvanic/electrolytic zinc platedGalvanic tinnedHot-dip galvanisedNickel-platedOtherUntreated

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
