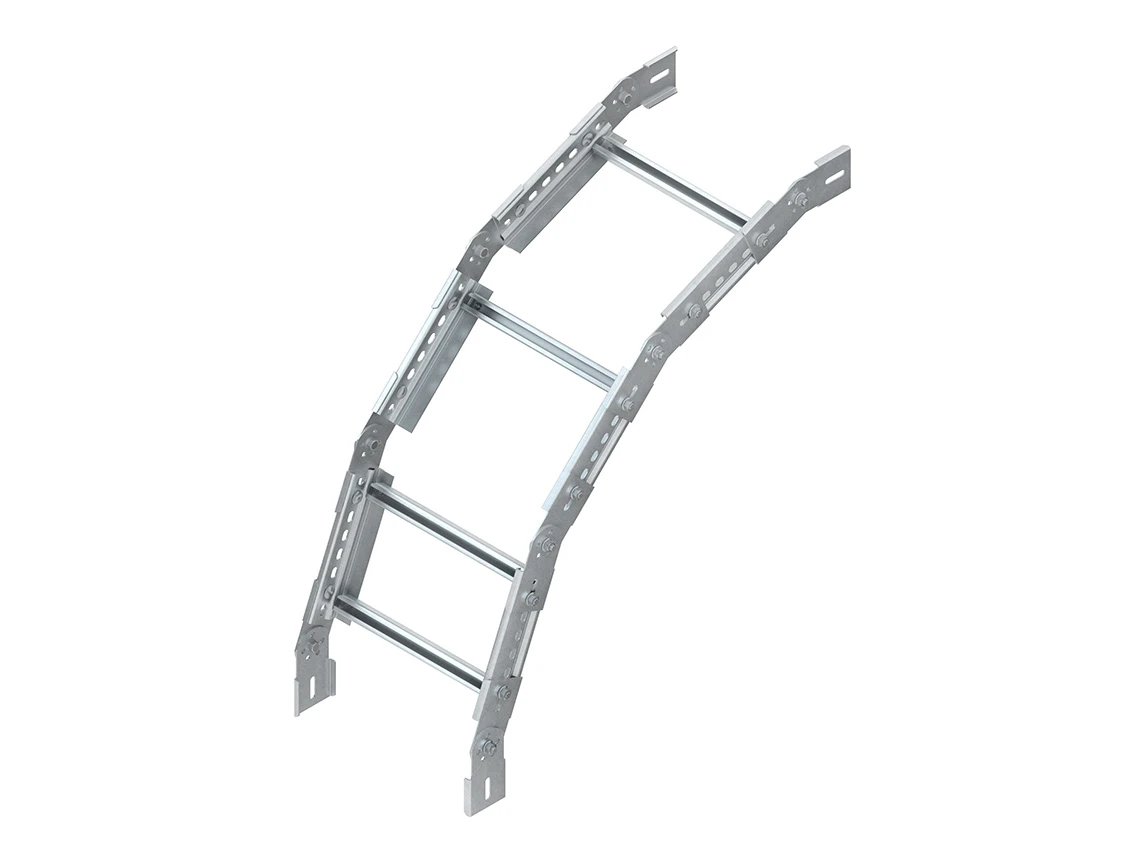

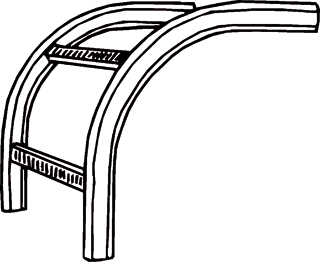

Bend for cable ladder EC001535
Features 18
- 1
Change of directionEF005210
Choose one value
HorizontalRising/descendingVertically risingVertically descending - 2
Type of side joistEF007666
Choose one value
Profile (open)Tube shape (closed)Flat profile - 3
Side perforationEF001122
Yes or no
YesNo - 4
Type of rungEF001060
Choose one value
Perforated profileImperforated profileTube shape (closed)Flat profile - 5
AngleEF001218
Choose one value
22.5°30°45°60°90°AdaptableOther - 6
Bend modelEF020423
Choose one value
Smooth bendSegmental bendOther - 7
HingingEF001076
Yes or no
YesNo - 8
Suitable for cable ladder heightEF004818
A number in mm
- 9
Suitable for cable ladder widthEF004817
A number in mm
- 10
ModelEF000010
Choose one value
Integrated connectorIncluded connectorWithout connector - 11
Inner radiusEF004793
A number in mm
- 12
Wide span model (no longer used)EF006397
Yes or no
YesNo - 13
Suitable for circuit integrityEF007806
Yes or no
YesNo - 14
MaterialEF002169
Choose one value
AluminiumPlasticStainless steelSteelOther - 15
Material qualityEF001257
Choose one value
GRP (Glass fibre reinforced plastic)Polyvinyl chloride (PVC)Stainless steel 304 (1.4301)Stainless steel 316 (1.4401)Stainless steel 316 Ti (1.4571)Other - 16
Surface protectionEF000139
Choose one value
UntreatedRed-leadedGalvanic/electrolytic zinc platedGalvanic/electrolytic zinc plated and coatedGalvanic/electrolytic zinc plated zinc-nickelContinuously galvanisedContinuously galvanised and coatedContinuously galvanised zinc-aluminiumHot-dip galvanisedHot-dip galvanised and coated - 17
ColourEF000007
Choose one value
AluminiumAnthraciteBlueGreyRedStainless steelWhiteYellowZincOther - 18
RAL-numberEF000116
A number
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
