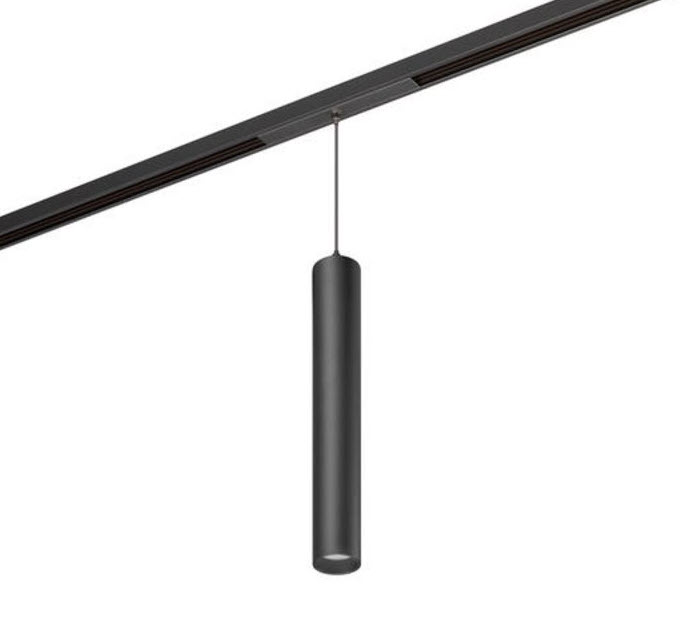

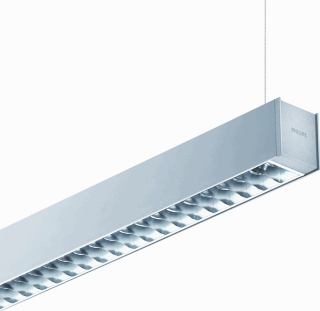

Pendant luminaire EC001743
Features 87
- 1
Suitable for light line configurationEF004274
Yes or no
YesNo - 2
Suitable for workplace according to EN 12464-1EF007694
Yes or no
YesNo - 3
Lamp typeEF002423
Choose one value
Incandescent lampFluorescent lamp D=7 mmFluorescent lamp D=16 mmFluorescent lamp D=26 mmFluorescent lamp D=38 mmCompact fluorescent lampHV halogen lampLV halogen lampMetal halide lampHigh pressure sodium-vapour lamp - 4
With light sourceEF005905
Yes or no
YesNo - 5
Suitable for number of light sourcesEF006436
A number
- 6
Lamp holderEF000048
Choose one value
2G72G102G112G132GX13B15dB22dBA9sE10E14 - 7
Housing materialEF001596
Choose one value
AluminiumGlassPlasticStainless steelSteelWoodOther - 8
Housing colourEF000136
Choose one value
AluminiumAnthraciteBeigeBlackBlueBrassBronzeBrownChromeColourless - 9
Cover materialEF004284
Choose one value
Glass, opalGlass, structuredGlass, transparentGlass, matt/satinizedPlastic, opalPlastic, structuredPlastic, transparentPlastic, matt/satinizedOtherWithout cover - 10
Type of gridEF000282
Choose one value
High-glossMattWhiteOtherNone - 11
Voltage typeEF000187
Choose one value
ACDCAC/DC - 12
Nominal voltageEF005127
A range, from and to, in V
- 13
Nominal currentEF009345
A range, from and to, in mA
- 14
Type of control gearEF000381
Choose one value
Electronic transformerElectronic ballastLow-loss ballast inductiveLow-loss ballast compensatedLED operating device voltage-controlledLED operating device current-controlledMagnetic transformerNot required - 15
With control gearEF007556
Yes or no
YesNo - 16
Exchangeable control gearEF016286
Yes or no
YesNo - 17
Dimming 0-10 VEF012152
Yes or no
YesNo - 18
Dimming 1-10 VEF012153
Yes or no
YesNo - 19
Dimming DALIEF012154
Yes or no
YesNo - 20
Dimming DALI-2EF015824
Yes or no
YesNo - 21
Dimming DMXEF012155
Yes or no
YesNo - 22
Dimming programmableEF012163
Yes or no
YesNo - 23
Dimming DSIEF012188
Yes or no
YesNo - 24
Dimming RFEF012164
Yes or no
YesNo - 25
Dimming potentiometer (integrated)EF012156
Yes or no
YesNo - 26
Dimming LineSwitchEF012158
Yes or no
YesNo - 27
Dimming manufacturer's proprietary systemEF012159
Yes or no
YesNo - 28
Dimming mains voltage modulationEF012160
Yes or no
YesNo - 29
Dimming phase cut-off (trailing edge)EF012161
Yes or no
YesNo - 30
Dimming phase cut-on (leading edge)EF012162
Yes or no
YesNo - 31
Dimming Sine Wave ReductionEF012165
Yes or no
YesNo - 32
Dimming Touch and DimEF012166
Yes or no
YesNo - 33
Dimming ZigbeeEF012167
Yes or no
YesNo - 34
Dimming with push-buttonEF012168
Yes or no
YesNo - 35
No dim functionEF012169
Yes or no
YesNo - 36

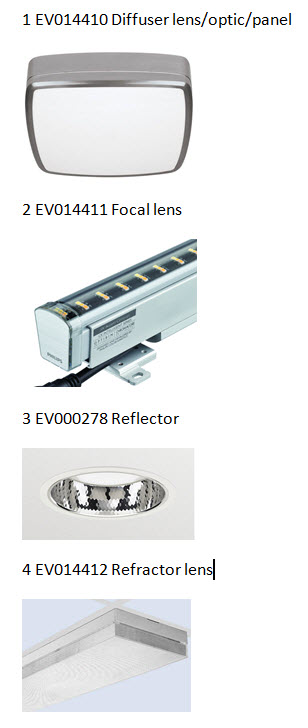

Light distributorEF012170
Choose one value
Diffuser lens/optic/panelFocal lensReflectorRefractor lensOtherNone - 37
ReflectorEF000036
Choose one value
WhiteMattHigh-glossOtherNone - 38
Light distributionEF004283
Choose one value
AsymmetricSymmetricSymmetric/asymmetricDouble asymmetric - 39
Colour consistency (McAdam ellipse)EF011946
Choose one value
SDCM1SDCM2SDCM3SDCM4SDCM5SDCM6SDCM7 - 40
Light outletEF004282
Choose one value
DirectIndirectDirect/indirect - 41
Direct-/indirect proportion separately controllableEF004264
Yes or no
YesNo - 42
Energy efficiency class of the light source according to 2019/2015/EUEF016835
Choose one value
ABCDEFGNot required - 43
Rated lifetime L70/B50 at 25 °CEF011870
A number in h
- 44
Max. number of luminaires per miniature circuit breaker B16 (MCB)EF015534
A number
- 45
Max. number of luminaires per miniature circuit breaker C16 (MCB)EF015533
A number
- 46
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)EF015687
A number in %
- 47
Lumen maintenance at median useful life of 75,000 h at 25 °C ambient (tq)EF015688
A number in %
- 48
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)EF015691
A number in %
- 49
Failure rate at median useful life of 75,000 h at 25 °C ambient (tq)EF015692
A number in %
- 50
Degree of protection (IP)EF005474
Choose one value
IP00IP10IP12IP20IP21IP22IP23IP24IP2XIP30 - 51
Degree of protection (NEMA)EF011959
Choose one value
1233R44X1213Other - 52
Impact strengthEF004293
Choose one value
IK00IK01IK02IK03IK04IK05IK06IK07IK08IK09IK10 - 53
Protection class according to IEC 61140EF000004
Choose one value
IIIIIINone - 54
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24EF006420
Yes or no
YesNo - 55
Suitable for emergency lightingEF004275
Yes or no
YesNo - 56
Emergency power supply integratedEF005138
Yes or no
YesNo - 57
Glow-wire test according to IEC 60695-2-11EF012091
Choose one value
550 °C - 30 s650 °C - 30 s750 °C - 30 s850 °C - 30 s960 °C - 30 sNone - 58
Suitable for lamp powerEF000280
A range, from and to, in W
- 59
Max. system powerEF009347
A number in W
- 60
Rated luminous flux according to IEC 62722-2-1 (no longer used)EF009349
A number in lm
- 61
Colour of lightEF009350
Choose one value
BlueRedAmberGreenYellowRGBRGBWWhiteMulti-colouredOther - 62
Luminaire efficacyEF012172
A number in lm/W
- 63
Colour temperatureEF009346
A range, from and to, in K
- 64
Colour rendering index CRIEF000442
Choose one value
20-3940-5960-6970-7980-8990-100 - 65
Unified Glare Ratio (UGR)EF013735
A number
- 66
Power factorEF025740
A number
- 67
Flickering value Pst LMEF015827
A number
- 68
Constant light output (CLO)EF009482
Yes or no
YesNo - 69
Stroboscope effect value SVMEF015828
A number
- 70
Colour of light adjustableEF016261
Choose one value
NoContinuously variablePositions - 71
Luminous flux adjustableEF016262
Choose one value
NoContinuously variablePositions - 72
Beam angle adjustableEF016263
Choose one value
NoContinuously variablePositions - 73
WidthEF000008
A number in mm
- 74
Height/depthEF001456
A number in mm
- 75
LengthEF001438
A number in mm
- 76
DiameterEF000551
A number in mm
- 77
With suspensionEF007566
Yes or no
YesNo - 78
Pendant lengthEF004286
A range, from and to, in mm
- 79
Type of wiringEF011868
Choose one value
Suitable for loop-through wiringLoop-through wiring includedEnding - 80
Number of polesEF001391
A number
- 81
Conductor cross sectionEF000085
A number in mm²
- 82
Connection typeEF000124
Choose one value
CrimpingBlade terminalSolderInsulation displacement connectorScrewed terminalPush-in clampBusbar adaptorOther - 83
Compatible with Apple HomeKitEF014925
Yes or no
YesNo - 84
Compatible with Google AssistantEF014926
Yes or no
YesNo - 85
Compatible with Amazon AlexaEF014927
Yes or no
YesNo - 86
IFTTT support availableEF011072
Yes or no
YesNo - 87
Operation by BluetoothEF013759
Yes or no
YesNo
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
