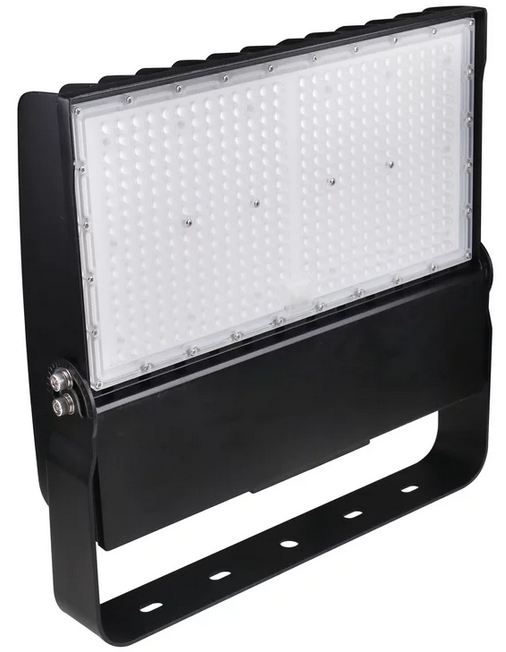

Downlight/spot/floodlight EC001744

Published
Luminaires EG000027

Features 114

  1. 1

    Suitable for surface mountingEF007793

    Yes or no

    YesNo
  2. 2

    Suitable for built-in mountingEF006760

    Yes or no

    YesNo
  3. 3

    Suitable for wall mountingEF000664

    Yes or no

    YesNo
  4. 4

    Suitable for suspended mountingEF001265

    Yes or no

    YesNo
  5. 5

    Suitable for ceiling mountingEF021180

    Yes or no

    YesNo
  6. 6

    Suitable for traverse mountingEF009352

    Yes or no

    YesNo
  7. 7

    Suitable for pedestal/floor mountingEF009353

    Yes or no

    YesNo
  8. 8

    Suitable for light-track mountingEF009354

    Yes or no

    YesNo

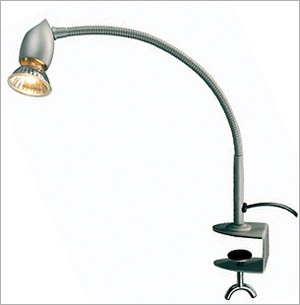

  9. 9

    Suitable for clamp-mountingEF009470

    Yes or no

    YesNo
  10. 10

    Suitable for low voltage cable systemEF012176

    Yes or no

    YesNo
  11. 11

    AdjustabilityEF009351

    Choose one value

    RotatableSwivellingRotating and swivellingNot adjustable
  12. 12

    With movement sensorEF000197

    Yes or no

    YesNo
  13. 13

    With light sensorEF001203

    Yes or no

    YesNo
  14. 14

    Lamp typeEF002423

    Choose one value

    Incandescent lampMetal halide lampMetal halide/sodium lampHV halogen lampInduction lampCompact fluorescent lampLED exchangeableLED not exchangeableFluorescent lampMixed light lamp
  15. 15

    With light sourceEF005905

    Yes or no

    YesNo
  16. 16

    Suitable for number of light sourcesEF006436

    A number

  17. 17

    Lamp holderEF000048

    Choose one value

    2G102G112G72GX13BA15dB15dB22dBA9sE10E14
  18. 18

    Housing materialEF001596

    Choose one value

    AluminiumGlassWoodPlasticStainless steelCopperSteelZamacOther
  19. 19

    Surface protectionEF000139

    Choose one value

    LacqueredPlastic-coatedPowder coatingGalvanisedOtherUntreated
  20. 20

    Housing colourEF000136

    Choose one value

    AluminiumAnthraciteBeigeBlueBrownBronzeChromeColourlessStainless steelYellow
  21. 21

    Cover materialEF004284

    Choose one value

    Glass, opalGlass, structuredGlass, transparentGlass, matt/satinizedPlastic, opalPlastic, structuredPlastic, transparentPlastic, matt/satinizedOtherNone
  22. 22

    Surface brushedEF008705

    Yes or no

    YesNo
  23. 23

    Voltage typeEF000187

    Choose one value

    ACDCAC/DC
  24. 24

    Nominal voltageEF005127

    A range, from and to, in V

  25. 25

    LED nominal current at constant current (no longer used)EF012150

    A range, from and to, in mA

  26. 26

    Type of control gearEF000381

    Choose one value

    Electronic transformerElectronic ballastLow-loss ballast inductiveLow-loss ballast compensatedLED operating device voltage-controlledLED operating device current-controlledMagnetic transformerNot required
  27. 27

    With control gearEF007556

    Yes or no

    YesNo
  28. 28

    Exchangeable control gearEF016286

    Yes or no

    YesNo
  29. 29

    Dimming depending on control gearEF012171

    Yes or no

    YesNo
  30. 30

    Dimming 0-10 VEF012152

    Yes or no

    YesNo
  31. 31

    Dimming 1-10 VEF012153

    Yes or no

    YesNo
  32. 32

    Dimming DALI-2EF015824

    Yes or no

    YesNo
  33. 33

    Dimming DALIEF012154

    Yes or no

    YesNo
  34. 34

    Dimming DMXEF012155

    Yes or no

    YesNo
  35. 35

    Dimming DSIEF012188

    Yes or no

    YesNo
  36. 36

    Dimming potentiometer (integrated)EF012156

    Yes or no

    YesNo
  37. 37

    Dimming GPRS (no longer used)EF012157

    Yes or no

    YesNo
  38. 38

    Dimming LineSwitchEF012158

    Yes or no

    YesNo
  39. 39

    Dimming manufacturer's proprietary systemEF012159

    Yes or no

    YesNo
  40. 40

    Dimming mains voltage modulationEF012160

    Yes or no

    YesNo
  41. 41

    Dimming phase cut-off (trailing edge)EF012161

    Yes or no

    YesNo
  42. 42

    Dimming phase cut-on (leading edge)EF012162

    Yes or no

    YesNo
  43. 43

    Dimming programmableEF012163

    Yes or no

    YesNo
  44. 44

    Dimming RFEF012164

    Yes or no

    YesNo
  45. 45

    Dimming Sine Wave ReductionEF012165

    Yes or no

    YesNo
  46. 46

    Dimming Touch and DimEF012166

    Yes or no

    YesNo
  47. 47

    Dimming ZigbeeEF012167

    Yes or no

    YesNo
  48. 48

    Dimming with push-buttonEF012168

    Yes or no

    YesNo
  49. 49

    No dim functionEF012169

    Yes or no

    YesNo
  50. 50

    ReflectorEF000036

    Choose one value

    High-glossMattWhiteOtherNone
  51. 51

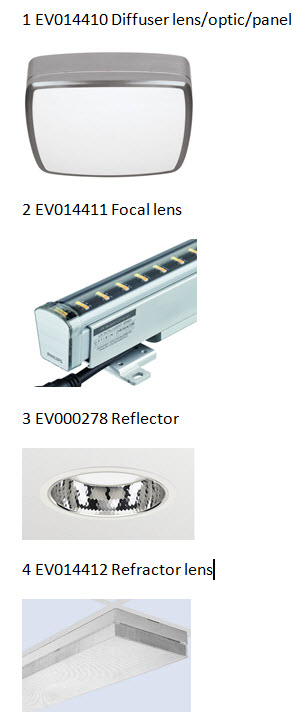

    Light distributorEF012170

    Choose one value

    Diffuser lens/optic/panelFocal lensReflectorRefractor lensOtherNone
  52. 52

    Light distributionEF004283

    Choose one value

    SymmetricAsymmetricSymmetric/asymmetricDouble asymmetric
  53. 53

    Beam angleEF008157

    Choose one value

    < 5° - Parallel beam5-10° - Extreme narrow beam11-20° - Narrow beam21-40° - Medium beam41-80° - Wide beam> 80° - Extreme wide beamVariable beam angleOpen beam/diffuse
  54. 54

    Light outletEF004282

    Choose one value

    DirectDirect/indirect
  55. 55

    Energy efficiency classEF000758

    Choose one value

    A++A+ABCOther
  56. 56

    Energy efficiency class of the built-in lampEF012487

    Choose one value

    A++, A+, A (LED)A++A+AOther
  57. 57

    Energy efficiency class of the provided exchangeable built-in lampEF012488

    Choose one value

    A++A+ABCDE
  58. 58

    Total harmonic distortion (no longer used)EF011947

    A number

  59. 59

    Rated lifetime L70/B50 at 25 °CEF011870

    A number in h

  60. 60

    Rated life time L80/B10 at 25 °C (no longer used)EF011871

    A number in h

  61. 61

    Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq)EF015686

    A number in %

  62. 62

    Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)EF015687

    A number in %

  63. 63

    Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq)EF015689

    A number in %

  64. 64

    Failure rate at median useful life of 35,000 h at 25 °C ambient (tq)EF015690

    A number in %

  65. 65

    Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)EF015691

    A number in %

  66. 66

    Failure rate at median useful life of 100,000 h at 25 °C ambient (tq)EF015693

    A number in %

  67. 67

    Constant light output (CLO)EF009482

    Yes or no

    YesNo
  68. 68

    Degree of protection (IP)EF005474

    Choose one value

    IP00IP10IP12IP20IP21IP22IP23IP24IP2XIP30
  69. 69

    Degree of protection (NEMA)EF011959

    Choose one value

    1233R44X1213Other
  70. 70

    Impact strengthEF004293

    Choose one value

    IK00IK01IK02IK03IK04IK05IK06IK07IK08IK09
  71. 71

    Protection class according to IEC 61140EF000004

    Choose one value

    IIIIIINone
  72. 72

    Rated ambient temperature according to IEC 62722-2-1EF012090

    A range, from and to, in °C

  73. 73

    Suitable for lamp powerEF000280

    A range, from and to, in W

  74. 74

    Max. system powerEF009347

    A number in W

  75. 75

    Colour of lightEF009350

    Choose one value

    BlueRedAmberGreenYellowRGBRGBWWhiteMulti-colouredOther
  76. 76

    Colour temperatureEF009346

    A range, from and to, in K

  77. 77

    Colour rendering index CRIEF000442

    Choose one value

    20-3940-5960-6970-7980-8990-100
  78. 78

    Luminous fluxEF011587

    A range, from and to, in lm

  79. 79

    Rated luminous flux according to IEC 62722-2-1 (no longer used)EF009349

    A number in lm

  80. 80

    Luminous intensityEF001357

    A number in cd

  81. 81

    Power factorEF025740

    A number

  82. 82

    Flickering value Pst LMEF015827

    A number

  83. 83

    Colour of light adjustableEF016261

    Choose one value

    NoContinuously variablePositions
  84. 84

    Luminous flux adjustableEF016262

    Choose one value

    NoContinuously variablePositions
  85. 85

    Beam angle adjustableEF016263

    Choose one value

    NoContinuously variablePositions
  86. 86

    Stroboscope effect value SVMEF015828

    A number

  87. 87

    WidthEF000008

    A number in mm

  88. 88

    Height/depthEF001456

    A number in mm

  89. 89

    LengthEF001438

    A number in mm

  90. 90

    Outer diameterEF000015

    A number in mm

  91. 91

    Built-in widthEF000846

    A number in mm

  92. 92

    Built-in height/depthEF023518

    A number in mm

  93. 93

    Built-in lengthEF004265

    A number in mm

  94. 94

    Built-in diameterEF016380

    A range, from and to, in mm

  95. 95

    Type of wiringEF011868

    Choose one value

    Suitable for loop-through wiringLoop-through wiring includedEnding
  96. 96

    Number of polesEF001391

    A number

  97. 97

    Conductor cross sectionEF000085

    A number in mm²

  98. 98

    Connectable conductor cross sectionEF008200

    A range, from and to, in mm²

  99. 99

    Connection typeEF000124

    Choose one value

    CrimpingBlade terminalSolderInsulation displacement connectorScrewed terminalPush-in clampBusbar adaptorOther
  100. 100

    Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24EF006420

    Yes or no

    YesNo
  101. 101

    Max. number of luminaires per miniature circuit breaker B16 (MCB)EF015534

    A number

  102. 102

    Max. number of luminaires per miniature circuit breaker C16 (MCB)EF015533

    A number

  103. 103

    Emergency power supply integratedEF005138

    Yes or no

    YesNo
  104. 104

    Glow-wire test according to IEC 60695-2-11EF012091

    Choose one value

    550 °C - 30 s650 °C - 30 s750 °C - 30 s850 °C - 30 s960 °C - 30 sNone
  105. 105

    Luminaire efficacyEF012172

    A number in lm/W

  106. 106

    Photobiological safety according to EN 62471EF011948

    Choose one value

    RG0RG1RG2RG3RG4Other
  107. 107

    Suitable for workplace according to EN 12464-1EF007694

    Yes or no

    YesNo
  108. 108

    Covering of the luminaire with thermally insulating material possibleEF006423

    Yes or no

    YesNo
  109. 109

    IFTTT support availableEF011072

    Yes or no

    YesNo
  110. 110

    Colour consistency (McAdam ellipse)EF011946

    Choose one value

    SDCM1SDCM2SDCM3SDCM4SDCM5SDCM6SDCM7Other
  111. 111

    Unified Glare Ratio (UGR)EF013735

    A number

  112. 112

    Compatible with Apple HomeKitEF014925

    Yes or no

    YesNo
  113. 113

    Compatible with Google AssistantEF014926

    Yes or no

    YesNo
  114. 114

    Compatible with Amazon AlexaEF014927

    Yes or no

    YesNo
