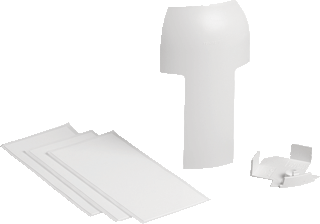

Tee for corner duct EC001947

Published
Installation ducts for wall and ceiling EG000006

Features 13

  1. 1

    HeightEF000040

    A number in mm

  2. 2

    WidthEF000008

    A number in mm

  3. 3

    ModelEF000010

    Choose one value

    Moulded hoodBase unitTop coverBase unit and cover
  4. 4

    Joint coverEF005253

    Yes or no

    YesNo
  5. 5

    AngleEF005434

    A range, from and to, in °

  6. 6

    MaterialEF002169

    Choose one value

    AluminiumPlasticStainless steelSteelOther
  7. 7

    Material qualityEF001257

    Choose one value

    Acrylonitrile butadiene styrene (ABS)GRP (Glass fibre reinforced plastic)Polycarbonate (PC)/ABSPolyvinyl chloride (PVC)Stainless steel 304 (1.4301)Stainless steel 316 (1.4401)Other
  8. 8

    Halogen freeEF000025

    Yes or no

    YesNo
  9. 9

    Surface protectionEF000139

    Choose one value

    UntreatedGalvanic/electrolytic zinc platedGalvanic/electrolytic zinc plated and coatedContinuously galvanisedContinuously galvanised and coatedCoatedWet varnishedAnodisedOther
  10. 10

    ColourEF000007

    Choose one value

    AluminiumAnthraciteBlackBronzeBrownGoldGreySilverStainless steelWhite
  11. 11

    RAL-numberEF000116

    A number

  12. 12

    Degree of protection (IP)EF005474

    Choose one value

    IP00IP05IP10IP12IP13BIP1XIP20IP21IP22IP23
  13. 13

    Impact strengthEF004293

    Choose one value

    IK00IK01IK02IK03IK04IK05IK06IK07IK08IK09

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
