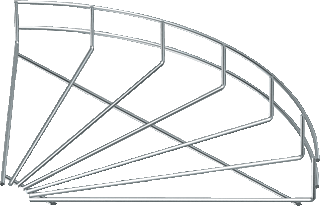

Bend for mesh cable tray EC001949
Published
Cable carrying systems EG000004
Features 13
- 1
Suitable for wire mesh tray heightEF004765
A number in mm
- 2
Suitable for wire mesh tray widthEF004764
A number in mm
- 3
Wire diameterEF004603
A number in mm
- 4
Construction typeEF000767
Choose one value
Bend horizontalBend vertical risingBend vertical falling - 5
AngleEF001218
Choose one value
90°45° - 6
ModelEF000010
Choose one value
Integrated connectorIncluded connectorWithout connector - 7
Suitable for circuit integrityEF007806
Yes or no
YesNo - 8
MaterialEF002169
Choose one value
AluminiumPlasticStainless steelSteelOther - 9
Stainless steel, pickled (no longer used)EF006388
Yes or no
YesNo - 10
Material qualityEF001257
Choose one value
GRP (Glass fibre reinforced plastic)Polyvinyl chloride (PVC)Rustproof and acidproof steel (no longer used)Other - 11
Surface protectionEF000139
Choose one value
Red-leadedGalvanic/electrolytic zinc platedGalvanic/electrolytic zinc plated and coatedGalvanic/electrolytic zinc plated zinc-nickelContinuously galvanisedContinuously galvanised and coatedContinuously galvanised zinc-aluminiumHot-dip galvanisedHot-dip galvanised and coatedAnodisedOther - 12
ColourEF000007
Choose one value
AluminiumAnthraciteBlueGreyRedStainless steelWhiteYellowZincOther - 13
RAL-numberEF000116
A number
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
