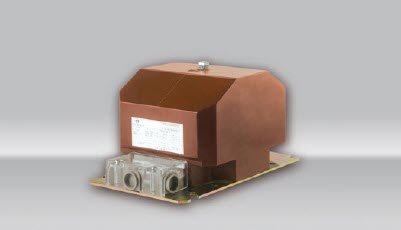

    Voltage measuring transformer

    Code

    EC002046

    Version

    8

    Group

    Low-voltage switchgear and control gear (automation) (EG020048)

    Release

    DYNAMIC, ETIM-10.0
    Features

    01

    Primary voltage 1 (V)

    EF006125 - Range

    02

    Primary voltage 2 (V)

    EF006126 - Range

    03

    Primary voltage 3 (V)

    EF006127 - Range

    04

    Secondary voltage 1 (V)

    EF003776 - Numeric

    05

    Secondary voltage 2 (V)

    EF003777 - Numeric

    06

    Secondary voltage 3 (V)

    EF003778 - Numeric

    07

    Number of phases

    EF000351 - Numeric

    08

    Rated power (VA)

    EF007051 - Numeric

    09

    Accuracy class

    EF001532 - Numeric

    10

    Degree of protection (IP)

    EF005474 - Alphanumeric

    11

    Degree of protection (NEMA)

    EF011959 - Alphanumeric

    12

    Ring core

    EF006170 - Logical

    13

    Suitable for mounting on PCB

    EF006157 - Logical

    14

    Suitable for distribution board

    EF001126 - Logical

    15

    Width (mm)

    EF000008 - Numeric

    16

    Height (mm)

    EF000040 - Numeric

    17

    Depth (mm)

    EF000049 - Numeric
    Synonyms

    Converter

    Power supply transformer

    Toroidal core transformer

    Voltage measuring transformer
