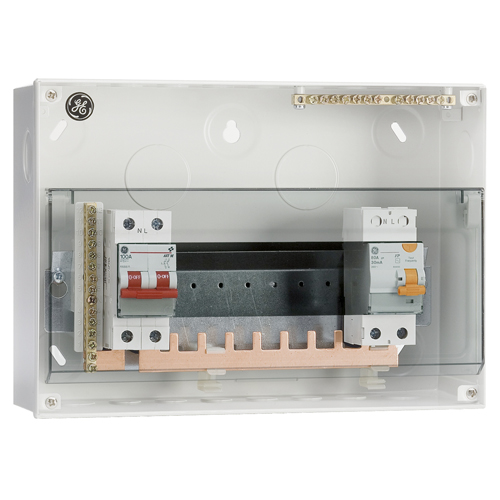

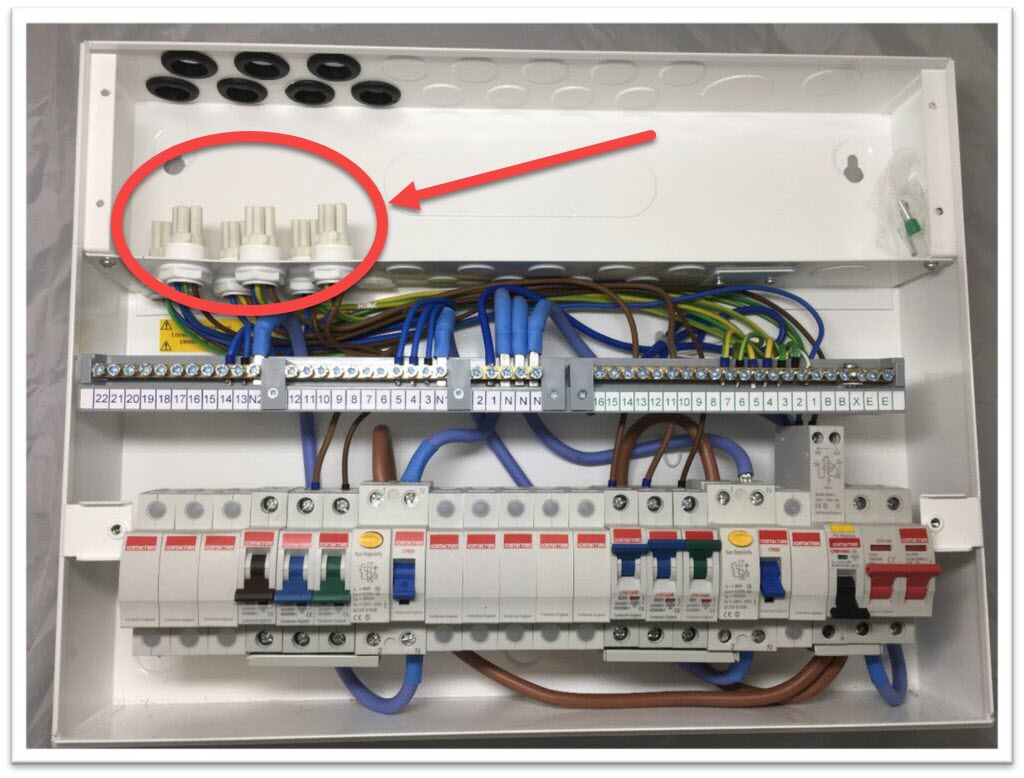

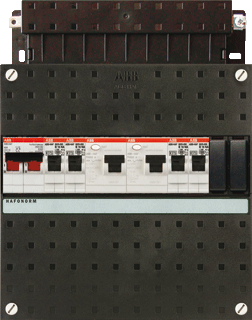

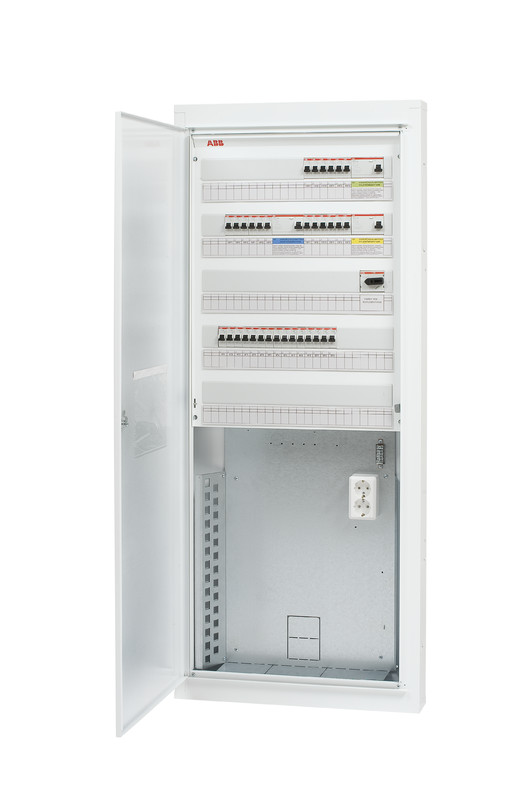

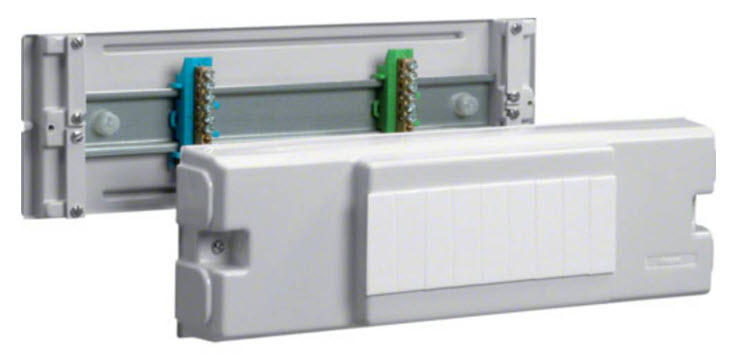

Small distribution board equipped EC002288

Features 49

  1. 1

    Mounting methodEF000003

    Choose one value

    Surface mountedSurface mounted/recessed mountedHollow wallFlush-mountedCabinet mounted/skeleton unitOther
  2. 2

    Number of rowsEF000266

    A number

  3. 3

    Number of phasesEF000351

    A number

  4. 4

    ProtectionEF000781

    Choose one value

    D-system fuse linkMiniature-/earth leakage circuit breakerOther
  5. 5

    Number of single-phase miniature circuit breakers (MCB)EF016419

    A number

  6. 6

    Number of three-phase miniature circuit breakers (MCB)EF016420

    A number

  7. 7

    Release characteristicEF000889

    Choose one value

    ABCCsDEFGKKM
  8. 8

    Rated short-circuit breaking capacity Icn according to EN 60898 at 230 VEF009556

    A number in kA

  9. 9

    Power consumptionEF000346

    A number in W

  10. 10

    Total number of groupsEF006239

    A number

  11. 11

    Number of direct groupsEF005556

    A number

  12. 12

    Number of light groupsEF005571

    A number

  13. 13

    Number of groups behind earth leakage switchEF005561

    A number

  14. 14

    Number of earth leakage circuit breakersEF005540

    A number

  15. 15

    Number of earth leakage switches 30 mAEF005542

    A number

  16. 16

    Number of earth leakage switches 300 mAEF005541

    A number

  17. 17

    Number of arc fault detection devices AFDDEF015946

    A number

  18. 18

    Protection main switchEF014729

    Yes or no

    YesNo
  19. 19

    Number of poles main switchEF005581

    A number

  20. 20

    Main switch rated currentEF007848

    A number in A

  21. 21

    Protection incoming RCDEF014730

    Yes or no

    YesNo
  22. 22

    Protection high integrityEF014731

    Yes or no

    YesNo
  23. 23

    Protection split loadEF014732

    Yes or no

    YesNo
  24. 24

    Protection dual RCDEF014733

    Yes or no

    YesNo
  25. 25

    Number of outgoing waysEF014736

    A number

  26. 26

    Suitable for dataEF008372

    Yes or no

    YesNo
  27. 27

    Cooker groupEF005943

    Choose one value

    Single phase3-phaseNone
  28. 28

    Cooker group suitable as power current groupEF005944

    Yes or no

    YesNo
  29. 29

    With socket outletEF000289

    Yes or no

    YesNo
  30. 30

    With bell transformerEF005639

    Yes or no

    YesNo
  31. 31

    Overvoltage protectionEF001332

    Yes or no

    YesNo
  32. 32

    Type of overvoltage protection deviceEF016043

    Choose one value

    Type 1Type 2Type 1 + 2Type 3Type 2 + 3
  33. 33

    With meterEF016044

    Yes or no

    YesNo
  34. 34

    Housing materialEF001596

    Choose one value

    AluminiumPlasticSteelStainless steelOther
  35. 35

    Degree of protection (IP)EF005474

    Choose one value

    IP20IP21IP22IP23IP24IP2XCIP30IP31IP34IP3X
  36. 36

    HeightEF000040

    A number in mm

  37. 37

    Built-in heightEF000332

    A number in mm

  38. 38

    WidthEF000008

    A number in mm

  39. 39

    Built-in widthEF000846

    A number in mm

  40. 40

    Width in number of modular spacingsEF002950

    A number

  41. 41

    DepthEF000049

    A number in mm

  42. 42

    Built-in depthEF005464

    A range, from and to, in mm

  43. 43

    Extension possibleEF001088

    Yes or no

    YesNo
  44. 44

    Type of coveringEF000339

    Choose one value

    LidDoorOptionalNone
  45. 45

    With transparent coverEF001094

    Yes or no

    YesNo
  46. 46

    Type of closureEF004462

    Choose one value

    Push buttonCylinderOther
  47. 47

    LockableEF000113

    Yes or no

    YesNo
  48. 48

    ColourEF000007

    Choose one value

    BeigeBlackBlueGreyOrangeRedTitaniumWhiteOther
  49. 49

    RAL-numberEF000116

    A number

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
