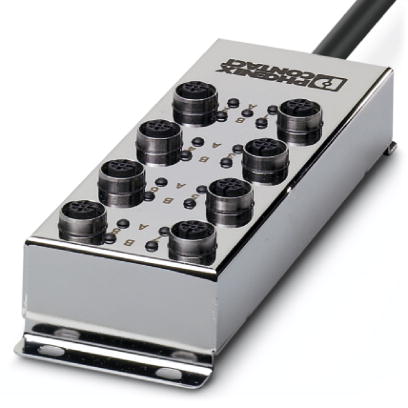

    Passive sensor-actuator interface (with cable)

    Code

    EC002585

    Version

    8

    Group

    Sensors for automation technology (EG020099)

    Release

    DYNAMIC, ETIM-10.0
    Features

    01

    Connectable conductor cross section (mm²)

    EF008200 - Range

    02

    Type of connector for trunk line

    EF007494 - Alphanumeric

    03

    Cable outer diameter for cable gland (mm)

    EF007302 - Range

    04

    Length of the preassembled cable (m)

    EF007300 - Numeric

    05

    Cable length configurable

    EF007301 - Logical

    06

    Number of sensor-/actuator-slots

    EF006939 - Numeric

    07

    Number of channels per connector slot

    EF006885 - Numeric

    08

    Type of branches for sensor-/actuator cables

    EF006972 - Alphanumeric

    09

    Number of poles sensor/actuator slots

    EF007402 - Numeric

    10

    Rated voltage (V)

    EF000228 - Numeric

    11

    Pollution degree

    EF006786 - Alphanumeric

    12

    Operating voltage (V)

    EF003983 - Range

    13

    Max. current carrying capacity per I/O signal (A)

    EF004037 - Numeric

    14

    Max. current carrying capacity per socket (A)

    EF004038 - Numeric

    15

    Max. total current (A)

    EF004039 - Numeric

    16

    Diameter contact female (mm)

    EF007319 - Numeric

    17

    Material contact body

    EF008248 - Alphanumeric

    18

    Material of contact surface

    EF004020 - Alphanumeric

    19

    Material insulation body

    EF007543 - Alphanumeric

    20

    Thread sleeves sensor/actuator slots

    EF007277 - Alphanumeric

    21

    With LED indication

    EF005950 - Logical

    22

    With potential separation

    EF003272 - Logical

    23

    Connection for NPN-sensors

    EF006817 - Logical

    24

    Fix cable version suitable for cable guide chain

    EF007461 - Logical

    25

    Housing material

    EF001596 - Alphanumeric

    26

    Housing colour

    EF000136 - Alphanumeric

    27

    Operating temperature (°C)

    EF002393 - Range

    28

    Degree of protection (IP)

    EF005474 - Alphanumeric

    29

    Explosion safety category for gas

    EF003997 - Alphanumeric

    30

    Explosion safety category for dust

    EF003998 - Alphanumeric

    31

    Width (mm)

    EF000008 - Numeric

    32

    Height (mm)

    EF000040 - Numeric

    33

    Depth (mm)

    EF000049 - Numeric

    34

    Degree of protection (NEMA)

    EF011959 - Alphanumeric
    Synonyms

    Distributor

    Distributor box

    Fixed cable distributor

    Fixed cable version

    Hood distributor

    Master cable connection

    Passive distributor

    Passive input-output module

    Passive sensor-actuator interface

    Passive sensor-actuator interface (with cable)

    Sensor/actuator box

    Sensor/actuator distributor

    Sensor/actuator interface
