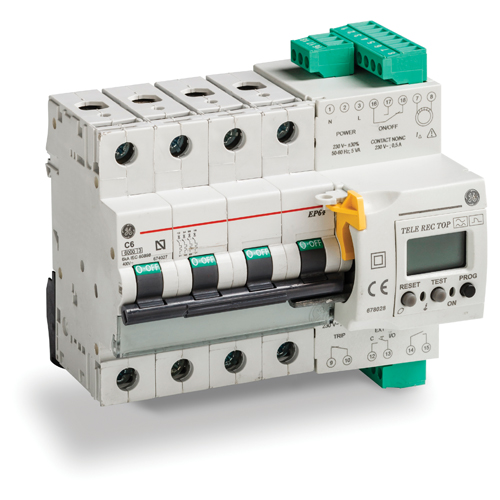

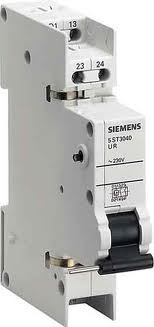

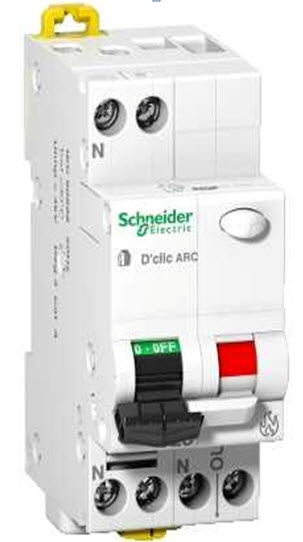

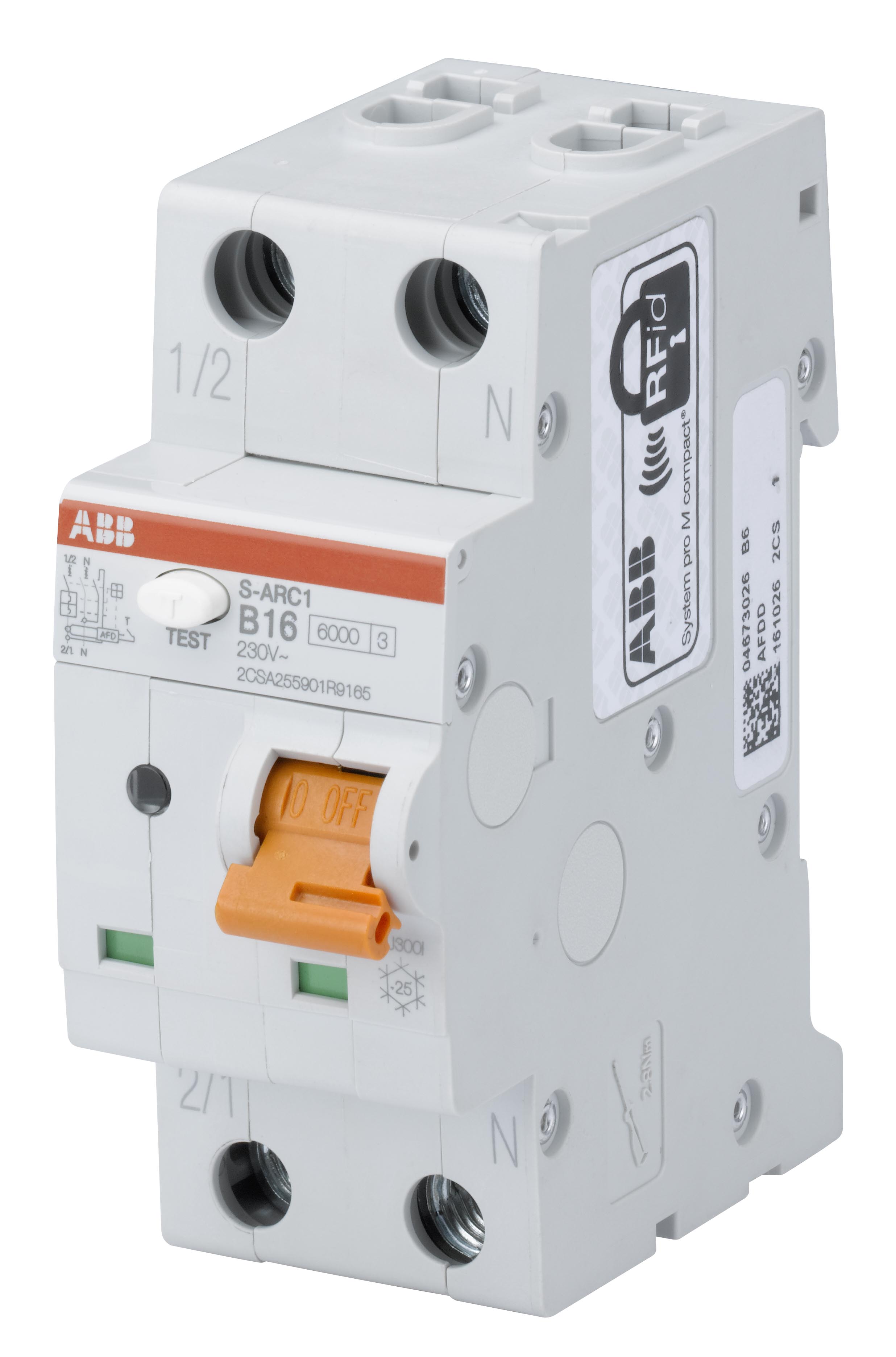

Miniature circuit breaker (MCB) with auxiliary device EC002694

Overcurrent protective device with additional equipment in the electric installation, which is used in low voltage distribution lines and which protects lines against damage caused by heating due to high current.

Ready for publication Circuit breakers and fuses EG000020

/

Changes since v8

Features 43

1
Release characteristicEF000889

Choose one value

ABCCsDEFKZOther
2
Number of polesEF001391

A number
3
Voltage typeEF000187

Choose one value

ACDCAC/DCOther
4
FrequencyEF000416

A range, from and to, in Hz
5
Rated currentEF000227

A number in A
6
Rated operational voltage, ACEF027112

A number in V
7
Rated operational voltage, DCEF027140

A number in V
8
Rated insulation voltage, ACEF027113

A number in V
9
Rated insulation voltage, DCEF027141

A number in V
10
Rated short-circuit breaking capacity Icn according to IEC 60898-1 at 230 V, ACEF027114

A number in kA
11
Rated short-circuit breaking capacity Icn according to IEC 60898-1 at 400 V, ACEF027115

A number in kA
12
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 125 V, DCEF027213

A number in kA
13
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 220 V, DCEF027214

A number in kA
14
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230V, ACEF027116

A number in kA
15
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 250 V, DCEF027215

A number in kA
16
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400V, ACEF027117

A number in kA
17
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 440 V, DCEF027216

A number in kA
18
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 500 V, DCEF027217

A number in kA
19
Rated service short-circuit breaking capacity Ics acc. IEC 60947-2 at 230V, ACEF027122

A number in kA
20
Rated service short-circuit breaking capacity Ics acc. IEC 60947-2 at 400V, ACEF027123

A number in kA
21
Instantaneous short-circuit current setting, ACEF027126

A range, from and to, in A
22
Current limiting classEF002568

A number
23
Concurrently switching neutral conductorEF005997

Yes or no

YesNo
24
Overvoltage categoryEF002569

A number
25
Pollution degreeEF002570

A number
26
Reference calibration temperature according to IEC 60898-1EF027124

A number in °C
27
Reference temperature of non-compensated release according to IEC 60947-2EF027125

A number in °C
28
Width in number of modular spacingsEF002950

A number
29
Built-in depthEF000218

A number in mm
30
Additional equipment attached at deliveryEF008149

Choose one value

Auxiliary switchFault-signal switchAuxiliary switch/fault-signal switchShunt release (for power circuit breaker)Under voltage coilFire protection switchRemote driveRemote releaseRemote turn-on switchMonitoring unit with automatic reclosingOther
31
Rated switch current auxiliary deviceEF007680

A number in A
32
Rated voltage auxiliary deviceEF007683

A number in V
33
Control voltage type auxiliary equipmentEF008071

Choose one value

ACAC/DCDC
34
Degree of protection (IP), front sideEF003118

Choose one value

IP00IP01IP02IP10IP11IP12IP1XIP20IP21IP22IP23IP24IP2XIP30IP31IP32IP33IP34IP3XIP40IP41IP42IP43IP44IP45IP4XIP50IP51IP52IP53IP54IP55IP5657IP58IP5XIP60IP61IP62IP63IP64IP65IP66IP67IP68IP69IP6XIPX0IPX1IPX2IPX3IPX4IPX5IPX6IPX7IPX8Other
35
Degree of protection (IP), terminalsEF027130

Choose one value

IP00IP01IP02IP10IP11IP12IP1XIP20IP21IP22IP2XIP30IP31IP32IP3XIPX1IPX2Other
36
Type of line side terminalsEF027132

Choose one value

Screw-type for aluminium conductorsScrew-type for copper conductorsScrew-type for copper and aluminium conductorsScrewless type for copper conductorsPlug-inOther
37
Type of load side terminalsEF027133

Choose one value

Screw-type for aluminium conductorsScrew-type for copper conductorsScrew-type for copper and aluminium conductorsScrewless type for copper conductorsPlug-inOther
38
Dedicated comb busbar terminalEF027134

Yes or no

YesNo
39
Dual combined terminalEF027135

Yes or no

YesNo
40
Tightening torqueEF005520

A range, from and to, in Nm
41
Provision for lockingEF027136

Yes or no

YesNo
42
Residential and tertiary product standardsEF027137

Choose one value

IEC 60898-1IEC 60898-1 and IEC 60947-2IEC 60947-2Other
43
Construction size according to DIN 43880EFDE0025

A number

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
