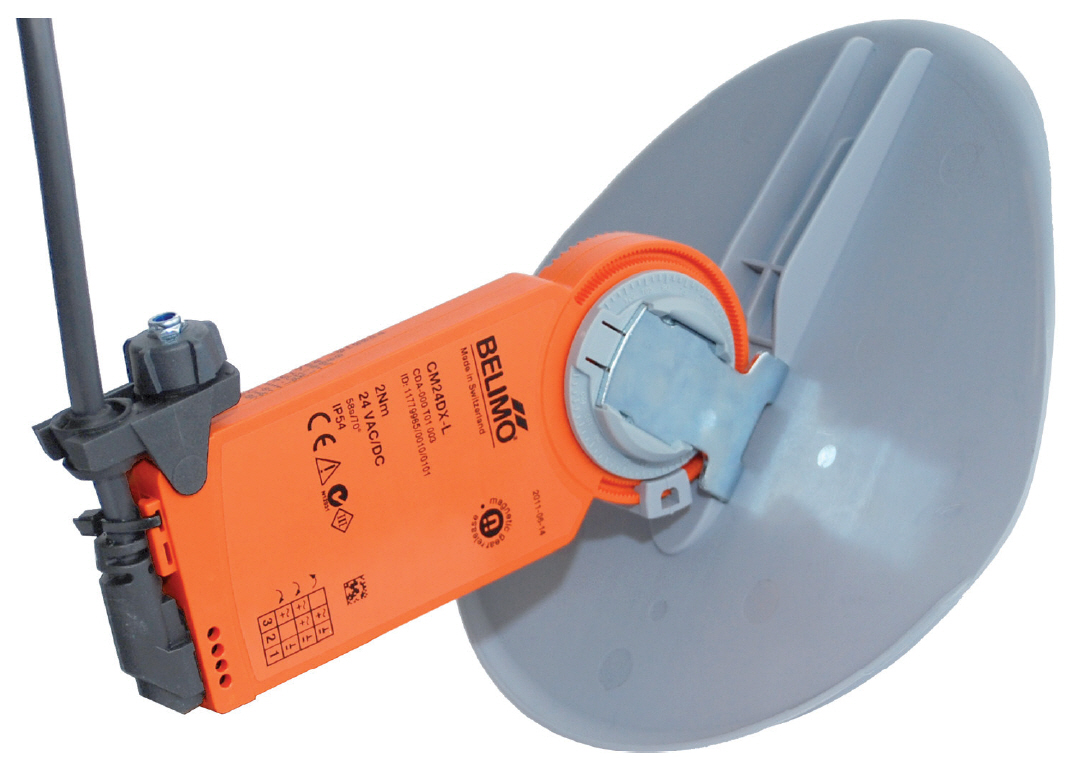

Electric actuator with damper blade round air duct
Code
EC003086Version
Group
Air and fire valves (EG015630)Release
ETIM-8.0, ETIM-9.0
Features
01 | Type of regulation EF000462 - Alphanumeric | |
02 | Supply voltage EF023970 - Alphanumeric | |
03 | Control signal EF000513 - Alphanumeric | |
04 | Suitable for nominal duct diameter (mm) EF020806 - Numeric | |
05 | Built-in length (mm) EF004265 - Numeric | |
06 | Max. angle of rotation (°) EF023860 - Numeric | |
07 | Operating time (s) EF021863 - Numeric | |
08 | Ambient temperature (°C) EF002386 - Range | |
09 | Allowable relative humidity (%) EF023900 - Range | |
10 | Air tightness class according to EN 1751 EF025356 - Alphanumeric | |
11 | Zeta value EF020002 - Numeric | |
12 | Max. pressure difference (Pa) EF002323 - Numeric | |
13 | With connection cable EF005036 - Logical | |
14 | Connection cable length (m) EF003636 - Numeric | |
15 | Degree of protection (IP) EF005474 - Alphanumeric | |
16 | Housing material EF001596 - Alphanumeric | |
17 | Material valve butterfly EF023840 - Alphanumeric | |
18 | Suitable for manual operation EF002978 - Logical | |
19 | Position reporting system EF021862 - Alphanumeric | |
20 | With pre-mounted seal EF022063 - Logical | |
21 | Drive mounting in duct EF011085 - Logical | |
22 | Delivery assembled EF011086 - Logical | |
23 | With mounting material EF006009 - Logical |
Synonyms
Actuator
Control valve, round air duct
Damper actuator
Drive
Electric actuator
Electric actuator with damper blade round air duct
Electric drive
Electric servo motor
Electric servomotor
Induct
In-duct
