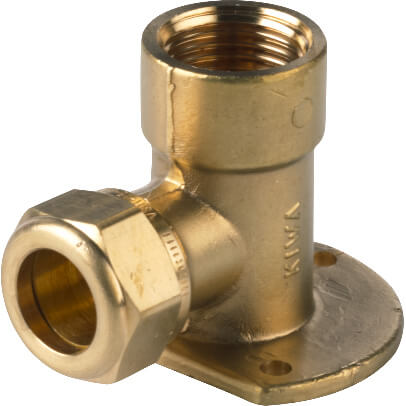

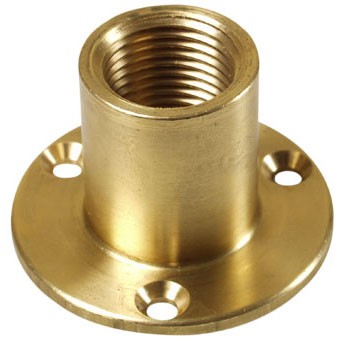

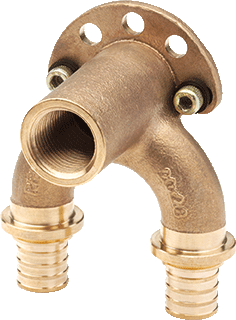

Wall plate EC003099

Published Fittings, flanges and connectors EG015540

/

Features 23

1
Housing material (no longer used)EF022461

Choose one value

AluminiumBronzeCast ironCopperPlasticBrassStainless steelSteelOther
2
Material qualityEF001257

Choose one value

Acrylonitrile butadiene styrene (ABS)Al 99.0 (3.0205)Al 99.5 (3.0255)Al 99.9 (3.0305)Aluminium bronzeBronze (Rg 5)Bronze (Rg 7)Bronze (Rg 12)Zinc-poor bronze (Rg 10)Zinc-free bronze (90/10)EN AW-5083 (AlMg4.5Mn)EN AW-5754 (AlMg3)EN AW-6060 T5(AlMgSi)EN AW-6082 T6(AlSi1MgMn)EN-GJMW-400-5 (EN-JM1030)Ethylene-propylene diene monomer rubber (EPDM)Alloyed steelFibre-reinforced plasticDezincification resistant brass (DZR)Polybutylene (PB)Polyethylene (PE)PE-40PE-50PE-80PE-100PE-reinforcedPE diffusion-tightPolyoxymethylene (POM)PP (no longer used)PP-CPP-GFPP-HPP-RPP-SPolyvinyl chloride (PVC)PVC-CPVC-CPEPVC recycledPVC-OPVC-UPolyvinylidene fluoride (PVDF)Rst 37.2 (1.0038)Rst 37.3 N (1.0116)Rst 37.3 U (1.0114)Stainless steel 304 (1.4301)Stainless steel 304 L (1.4306)Stainless steel 316 (1.4401)Stainless steel 316 L (1.4404)Stainless steel 316 Ti (1.4571)Stainless steel 321 (1.4541)Forged steelSt 33 (1.0035)St 34.2 (1.0034)St 35 (1.0308)St 35.8 (1.0305)St 37 (1.0254)St 37.2 (1.0037)St 37.8 (1.0345)St 44.0 (1.0256)St 44.2 (1.0044)St 44.3 annealed (1.0144)St 44.3 unannealed (1.0431)St 50.2 (1.0050)St 52.0 (1.0421)St 52.3 annealed (1.0570)St 52.3 unannealed (1.0553)St 60.2 (1.0060)St 70.2 (1.0070)TT St 35 N (1.0356)Ust 37.2 (1.0036)Other
3
Surface protectionEF000139

Choose one value

UntreatedChromium-platedNickel-platedTinnedOther
4
ShapeEF000051

Choose one value

Right-angledStraightContinuous straightContinuous right-angledContinuous parallelOther
5
System specificEF025253

Yes or no

YesNo
6
Nominal diameter connectionEF025620

Choose one value

3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)DN 10DN 12DN 15DN 18DN 20DN 25DN 32Other
7
Outer pipe diameter connectionEF020208

A number in mm
8
ConnectionEF000443

Choose one value

Internal thread conical (NPT)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread flare (UNF)Internal thread metricExternal thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)Insert (push-fitting)ClampCompression ringPlastic welded sleeveGlued sleevePress sleeveSlideSoldered sleeveOtherSoldered end
9
Thread size tap connectionEF010681

Choose one value

1/8 inch1/4 inch3/8 inch1/2 inch3/4 inch1 inch1 1/4 inch1 1/2 inch2 inchOther
10
Length of connection 1EF020151

A number in mm
11
Working length connection 1EF020153

A number in mm
12
Length of connection 2EF020152

A number in mm
13
Working length connection 2EF020154

A number in mm
14
Length from wall plateEF020417

A number in mm
15
Length of connection 3EF020159

A number in mm
16
Working length connection 3EF020160

A number in mm
17
Min. medium temperature (continuous)EF020077

A number in °C
18
Max. medium temperature (continuous)EF020023

A number in °C
19
Max. operating pressure at 20 °CEF023116

A number in bar
20
Zeta valueEF020002

A number
21
Contour codeEF025254

Choose one value

UniversalBHRMSASCTHUPVOther
22
KIWA certified (no longer used)EF020075

Yes or no

YesNo
23
Gastec QA (no longer used)EF020074

Yes or no

YesNo

Codes after each name are ETIM feature codes. Use them, not the names, in product data.


1 / 4

Also known as

Floor plateKnee with wall plateT-piece with side nozzle and wall plateWall ductWall duct with wall plateWall plateWall plate longWall plate right-angledWall plate shortWall plate straightWall plate, continuousWall plate, continuous system connectionWall plate, right-angledWall plate, squareWall plate, square system connectionWall plate, straightWall plate, straight system connection

About this class

Group: Fittings, flanges and connectors EG015540
Sectors: W, M
In releases: ETIM 7.0
