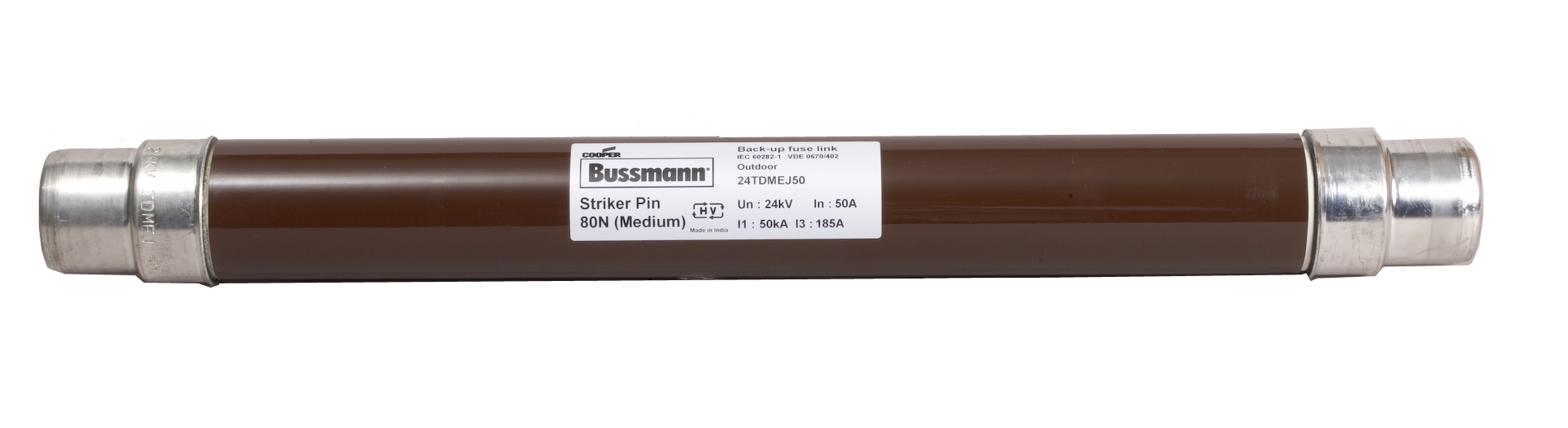

Medium/high voltage fuse EC003507
A protective device used in electrical circuits to prevent overcurrent damage.
Published
Circuit breakers and fuses EG000020
Features 14
- 1
Rated currentEF000227
A number in A
- 2
Rated voltageEF000228
A number in kV
- 3
Voltage typeEF000187
Choose one value
ACDCAC/DC - 4
Rated frequencyEF001663
A range, from and to, in Hz
- 5
Breaking capacityEF005617
A number in kA
- 6
Utilization category according to IEC 60269EF002572
Choose one value
aMaRgBgGgPVgRgTrOther - 7
ApplicationEF000041
Choose one value
Motor protectionPrimary side transformer protectionAuxiliary transformer protectionSwitchgear protectionRailway circuit protectionOther - 8
LengthEF001438
A number in mm
- 9
DiameterEF000551
A number in mm
- 10
Performance category according to IEC 60282-1EF012539
Choose one value
Full-rangeBack-upGeneral purposeOther - 11
With strikerEF008175
Yes or no
YesNo - 12
StandardEF009322
Choose one value
ANSIBritish StandardDINIECIEEEULOther - 13
Release characteristicEF000889
Choose one value
EROther - 14
Installation techniqueEF001474
Choose one value
AirOil
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
