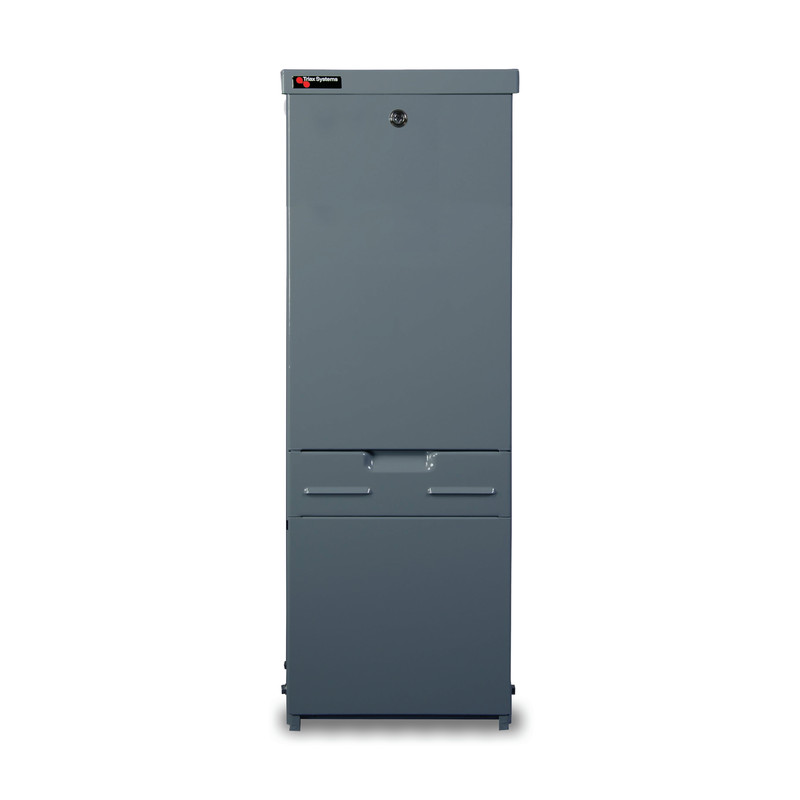

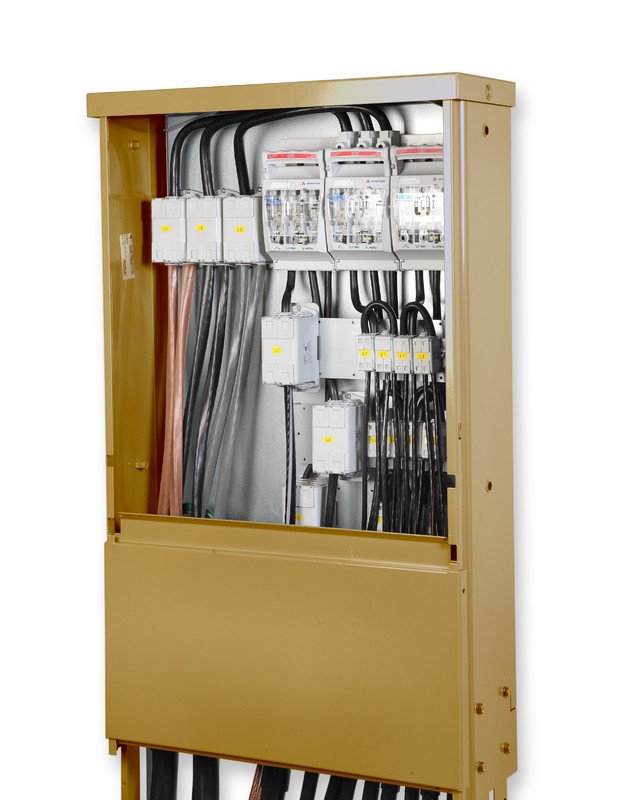

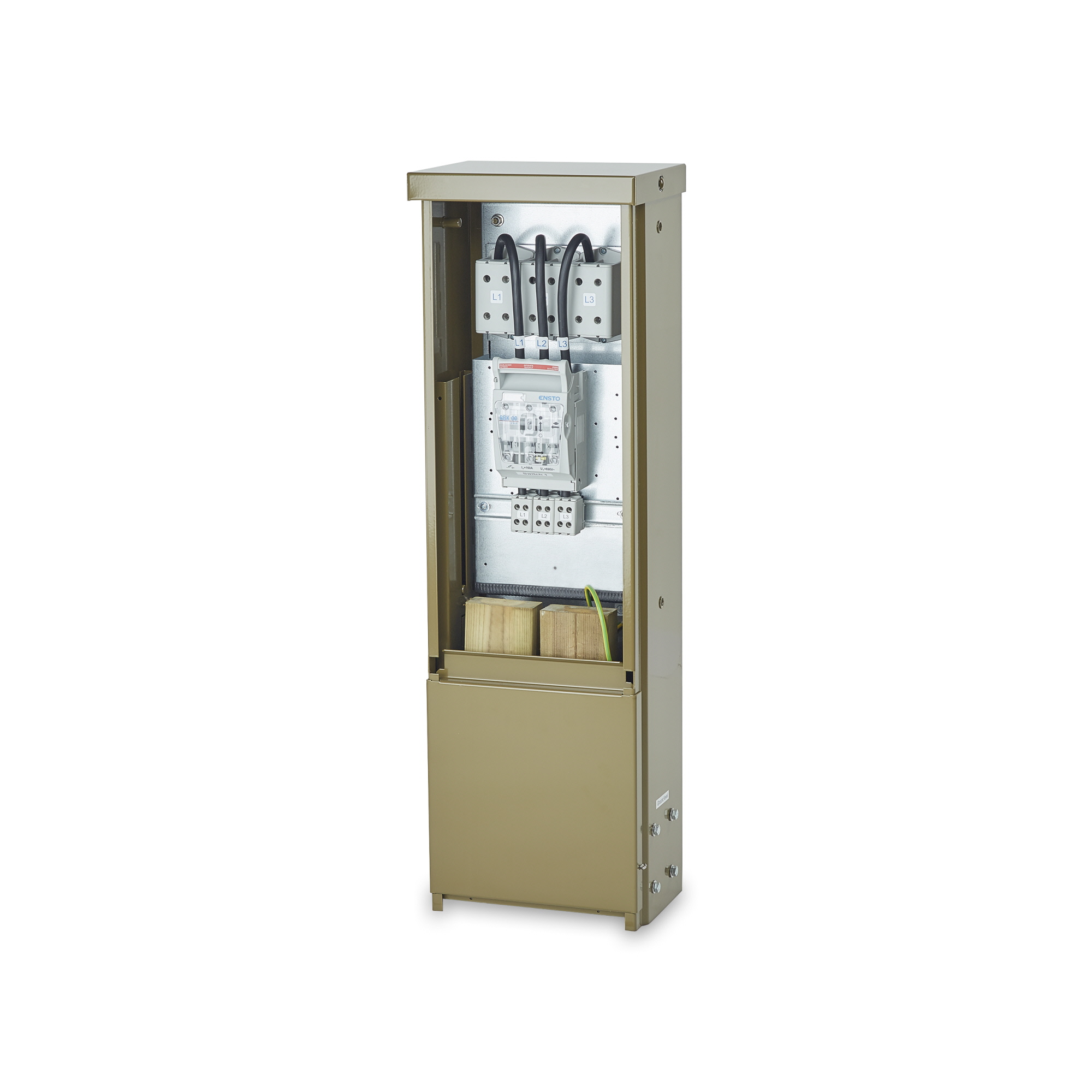

Cable distribution cabinet EC003517
An enclosure used to house and organize electrical cable connections.
Features 21
- 1
Nominal voltageEF000002
A number in V
- 2
Nominal currentEF000001
A number in A
- 3
MaterialEF002169
Choose one value
AluminiumComposite materialSteelOther - 4
Surface protectionEF000139
Choose one value
UntreatedGalvanisedOther - 5
Degree of protection (IP) cabinetEF026395
Choose one value
IP00IP05IP10IP12IP13BIP20IP21IP22IP23IP24 - 6
ColourEF000007
Choose one value
GreenGreyOther - 7
RAL-numberEF000116
A number
- 8
WidthEF000008
A number in mm
- 9
HeightEF000040
A number in mm
- 10
DepthEF000049
A number in mm
- 11
MountingEF005084
Choose one value
FloorPedestal (in-ground mounting)PoleWallOther - 12
Number of polesEF001391
A number
- 13
Nominal cross section conductor branch cableEF007912
A range, from and to, in mm²
- 14
Nominal cross section conductor main cableEF007913
A range, from and to, in mm²
- 15
Equipped with busbarEF007686
Yes or no
YesNo - 16
Degree of protection (IP) busbarEF011695
Choose one value
IP00IP20Other - 17
Equipped with connectorsEF011696
Yes or no
YesNo - 18
With earthingEF007376
Yes or no
YesNo - 19
With stand (base)EF005305
Yes or no
YesNo - 20
With floor plateEF024842
Yes or no
YesNo - 21
With mounting plateEF000118
Yes or no
YesNo
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
