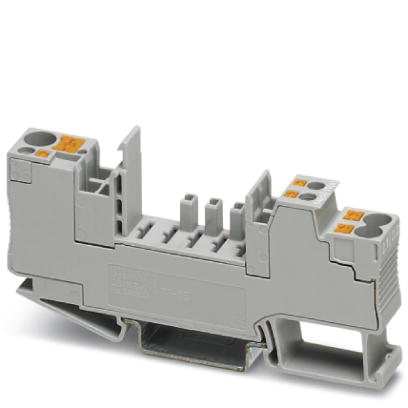

Device circuit breaker
Code
EC003538Version
2
Group
Circuit breakers and fuses (EG000020)Release
DYNAMIC, ETIM-10.0
Features
01 | Number of poles EF001391 - Numeric | |
02 | Construction type EF000767 - Alphanumeric | |
03 | Width (mm) EF000008 - Numeric | |
04 | Height (mm) EF000040 - Numeric | |
05 | Depth (mm) EF000049 - Numeric | |
06 | Mounting method EF000003 - Alphanumeric | |
07 | Operating voltage (V) EF000111 - Numeric | |
08 | Nominal current (A) EF000001 - Numeric | |
09 | Active current limitation x IN EF011922 - Numeric | |
10 | Fuse type EF011923 - Alphanumeric | |
11 | Contact type EF001587 - Alphanumeric | |
12 | Fail safe element (A) EF011924 - Numeric | |
13 | Switch-off time (ms) EF011925 - Numeric | |
14 | Max. capacitive load (µF) EF011926 - Numeric | |
15 | With remote signalling contact EF000422 - Logical | |
16 | Ambient temperature during operating (°C) EF007515 - Range | |
17 | Flammability class of insulation material according to UL 94 EFNA0008 - Alphanumeric |
Synonyms
Device circuit breaker
Device protection unit
