Trickle vent
Code
EC004851Version
1
Group
Window fittings (EG020008)Release
ETIM-10.0
Features

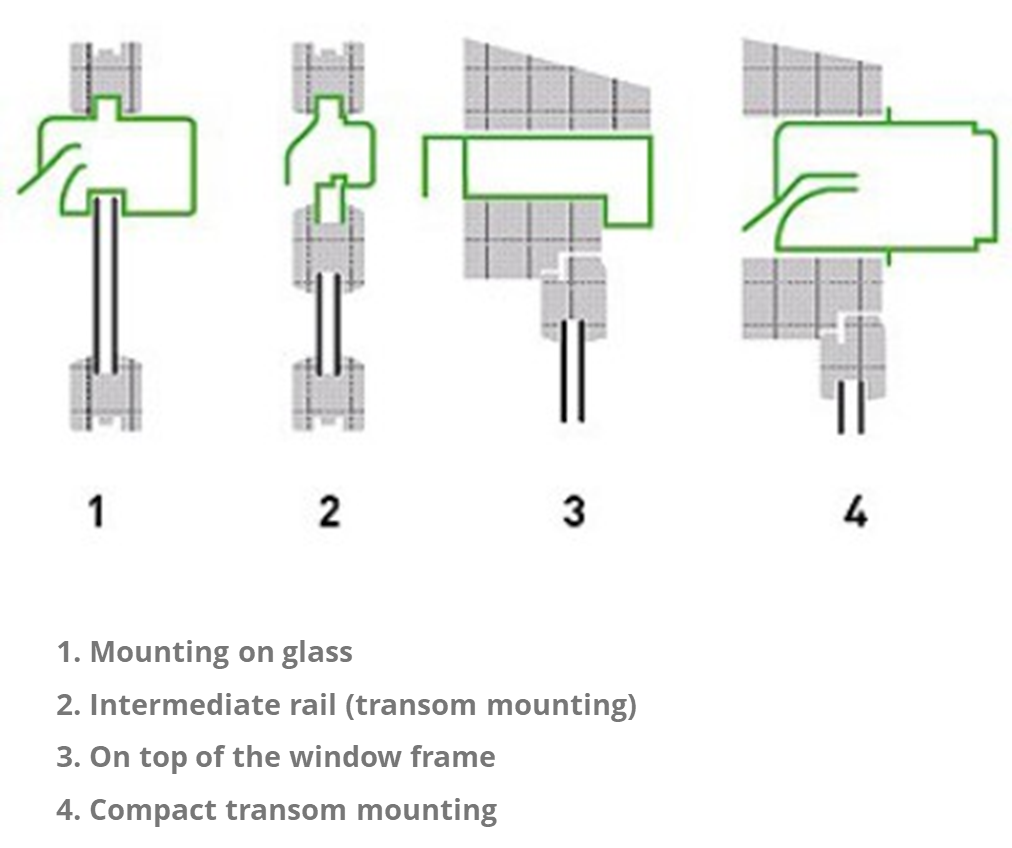

01 | Mounting EF005084 - Alphanumeric | |
02 | Operation EF002147 - Alphanumeric | |
03 | Wind-controlled EF018313 - Logical | |
04 | Min. glass reduction (mm) EF018268 - Numeric | |
05 | Air volume flow (m³/h) EF010277 - Numeric | |
06 | Wind tightness (closed position) according to EN 1027 (Pa) EF018267 - Numeric | |
07 | Water tightness (closed position) according to EN 1027 (Pa) EF018266 - Numeric | |
08 | Insect resistant EF018269 - Logical | |
09 | Thermal separation EF013133 - Logical | |
10 | Insulation value (U) (W/(m²⋅K)) EF010491 - Numeric | |
11 | Height (mm) EF000040 - Numeric | |
12 | Width (mm) EF000008 - Numeric | |
13 | Thickness (mm) EF000125 - Numeric | |
14 | Built-in height (mm) EF000332 - Numeric | |
15 | Built-in depth (mm) EF000218 - Numeric | |
16 | RAL-number inside EF024320 - Numeric | |
17 | RAL-number outside EF012597 - Numeric |
Synonyms
Air ventilation grille for window
Trickle vent
Window vent
Window ventilation
Window ventilation grille
Window ventilator
