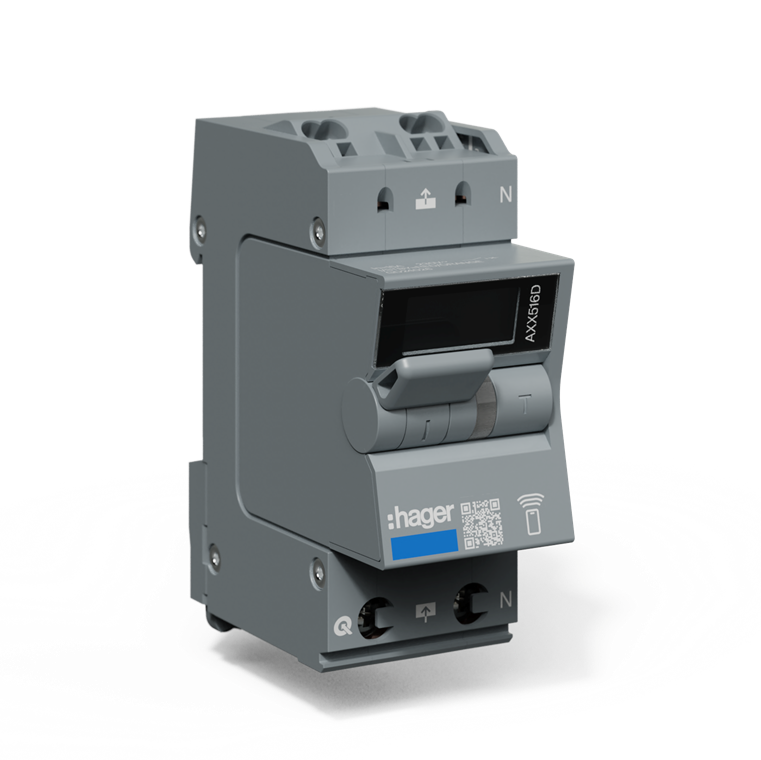

Electronic circuit protection device ECPD EC004964
An electronic component designed to protect circuits from overcurrent or faults.
Features 29
- 1
Number of polesEF001391
A number
- 2
Number of protected polesEF005548
A number
- 3
Rated voltageEF003977
A range, from and to, in V
- 4
Nominal voltageEF000002
A number in V
- 5
Voltage typeEF000187
Choose one value
ACDCAC/DCOther - 6
Rated currentEF000227
A number in A
- 7
Rated fault currentEF002358
A number in A
- 8
Leakage current typeEF002560
Choose one value
AACBB+FOther - 9
Current limiting classEF002568
A number
- 10
Rated switching capacityEF002563
A number in kA
- 11
FrequencyEF000034
A number in Hz
- 12
Concurrently switching neutral conductorEF005997
Yes or no
YesNo - 13
Overvoltage categoryEF002569
A number
- 14
Pollution degreeEF002570
A number
- 15
Width in number of modular spacingsEF002950
A number
- 16
Built-in depthEF000218
A number in mm
- 17
Built-in widthEF000846
A number in mm
- 18
Power lossEF005387
A number in W
- 19
Rated insulation voltage UiEF001366
A number in V
- 20
Ambient temperature during operatingEF007515
A range, from and to, in °C
- 21
Connectable conductor cross section fine-strand without cable end sleeveEF007341
A range, from and to, in mm²
- 22
Connectable conductor cross section solid-coreEF007337
A range, from and to, in mm²
- 23
Connectable conductor cross section fine-strand with cable end sleeveEF007339
A range, from and to, in mm²
- 24
Control voltageEF006144
A range, from and to, in V
- 25
Mounting methodEF000003
Choose one value
Surface mountingDIN railBuilt-inCableConductor barIntermediate plugOther - 26
Short-circuit breaking capacity (Icw)EF002562
A number in kA
- 27
Number of digital outputsEF001993
A number
- 28
Number of digital inputsEF001992
A number
- 29
Degree of protection (IP)EF005474
Choose one value
IP00IP10IP12IP20IP21IP22IP23IP24IP2XIP30
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
