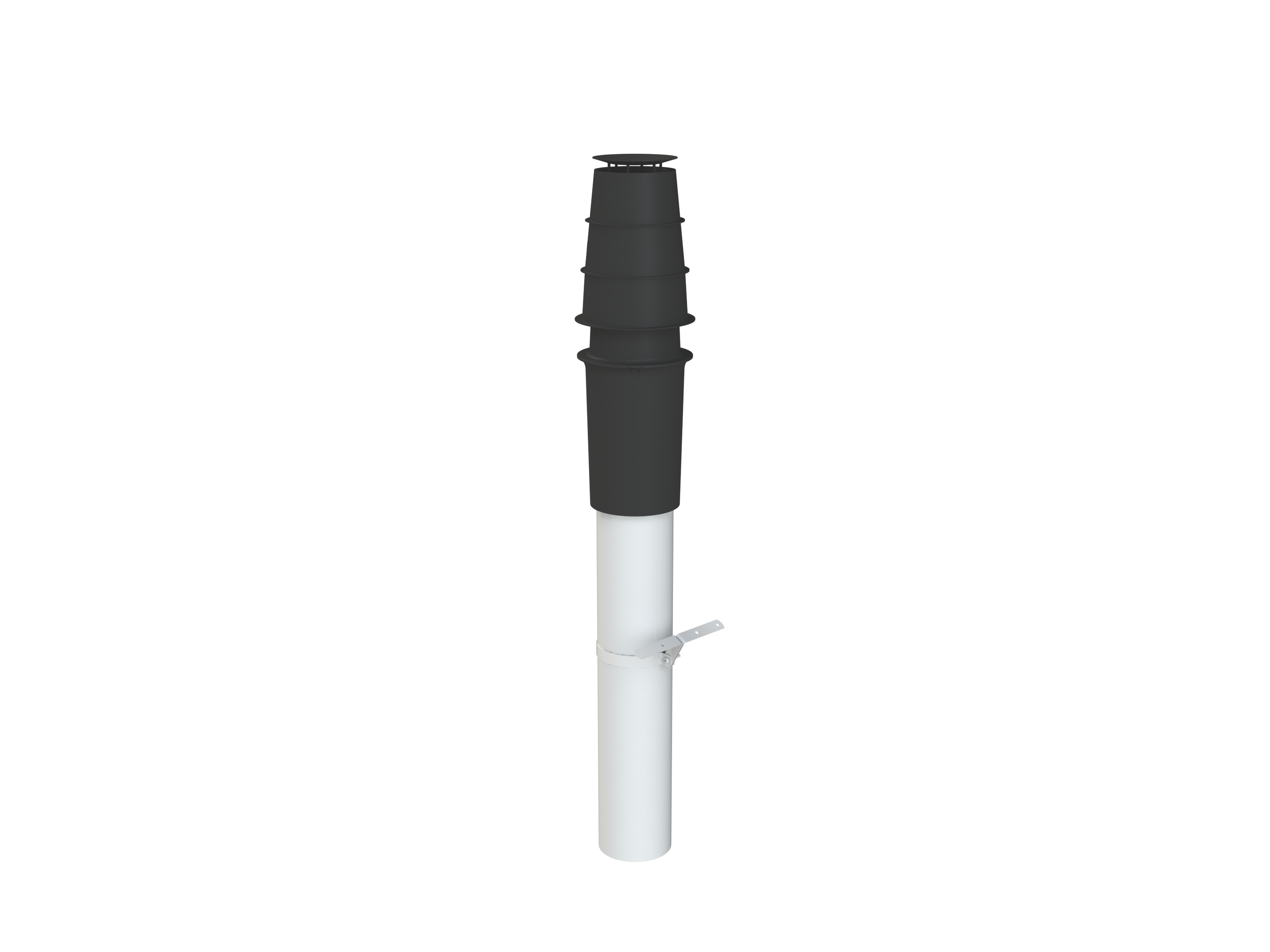

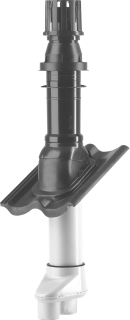

Flue gas roof duct
Accessories for flue gases and air. Flue gas roof duct
Code:
EC010110
Version:
Group:
Accessories for flue gases and air
EG015560Release:
ETIM-9.0, ETIM-8.0, DYNAMIC
Features
01 |
Type of systemEF008552 - Alphanumeric | ||
02 |
Max. medium temperature (continuous) (°C)EF020023 - Numeric | ||
03 |
Diameter of single-walled system (mm)EF024132 - Numeric | ||
04 |
Inner diameter of double-walled system (mm)EF024135 - Numeric | ||
05 |
Outer diameter of double-walled system (mm)EF025630 - Numeric | ||
06 |
Inner diameter part above roof (mm)EF025607 - Numeric | ||
07 |
Diameter of parallel systemEF022689 - Alphanumeric | ||
08 |
Diameter of concentric systemEF022688 - Alphanumeric | ||
09 |
Positive (overpressure)EF024123 - Logical | ||
10 |
Wet (condensing)EF024124 - Logical | ||
11 |
Negative (negative pressure)EF024125 - Logical | ||
12 |
Dry (non-condensing)EF024126 - Logical | ||
13 |
Material flue pipeEF024312 - Alphanumeric | ||
14 |
Material air supply pipeEF024313 - Alphanumeric | ||
15 |
Quality class flue pipeEF024314 - Alphanumeric | ||
16 |
With sliding plateEF024326 - Logical | ||
17 |
Sliding plate modelEF025219 - Alphanumeric | ||
18 |
Roof pitch (°)EF020004 - Range | ||
19 |
Surface protection flueEF024315 - Alphanumeric | ||
20 |
Surface protection air supply pipeEF024316 - Alphanumeric | ||
21 |
Surface treatment air supply pipeEF024317 - Alphanumeric | ||
22 |
Icicle/icing-freeEF024136 - Logical | ||
23 |
With mechanical ventilation connectionEF024137 - Logical | ||
24 |
Diameter, mechanical ventilation connection (mm)EF024138 - Numeric | ||
25 |
Colour on the roofEF024139 - Alphanumeric | ||
26 |
RAL-number on the roofEF024140 - Numeric | ||
27 |
Colour below the roofEF024141 - Alphanumeric | ||
28 |
RAL-number below the roofEF024142 - Numeric | ||
29 |
Total length (mm)EF000369 - Numeric | ||
30 |
Length above roof (including cover) (mm)EF020009 - Numeric |
01 |
Type of systemEF008552 - Alphanumeric | ||
02 |
Max. medium temperature (continuous) (°C)EF020023 - Numeric | ||
03 |
Diameter of single-walled system (mm)EF024132 - Numeric | ||
04 |
Inner diameter of double-walled system (mm)EF024135 - Numeric | ||
05 |
Outer diameter of double-walled system (mm)EF025630 - Numeric | ||
06 |
Inner diameter part above roof (mm)EF025607 - Numeric | ||
07 |
Diameter of parallel systemEF022689 - Alphanumeric | ||
08 |
Diameter of concentric systemEF022688 - Alphanumeric | ||
09 |
Positive (overpressure)EF024123 - Logical | ||
10 |
Wet (condensing)EF024124 - Logical | ||
11 |
Negative (negative pressure)EF024125 - Logical | ||
12 |
Dry (non-condensing)EF024126 - Logical | ||
13 |
Material flue pipeEF024312 - Alphanumeric | ||
14 |
Material air supply pipeEF024313 - Alphanumeric | ||
15 |
Quality class flue pipeEF024314 - Alphanumeric | ||
16 |
With sliding plateEF024326 - Logical | ||
17 |
Sliding plate modelEF025219 - Alphanumeric | ||
18 |
Roof pitch (°)EF020004 - Range | ||
19 |
Surface protection flueEF024315 - Alphanumeric | ||
20 |
Surface protection air supply pipeEF024316 - Alphanumeric | ||
21 |
Surface treatment air supply pipeEF024317 - Alphanumeric | ||
22 |
Icicle/icing-freeEF024136 - Logical | ||
23 |
With mechanical ventilation connectionEF024137 - Logical | ||
24 |
Diameter, mechanical ventilation connection (mm)EF024138 - Numeric | ||
25 |
Colour on the roofEF024139 - Alphanumeric | ||
26 |
RAL-number on the roofEF024140 - Numeric | ||
27 |
Colour below the roofEF024141 - Alphanumeric | ||
28 |
RAL-number below the roofEF024142 - Numeric | ||
29 |
Total length (mm)EF000369 - Numeric | ||
30 |
Length above roof (including cover) (mm)EF020009 - Numeric |
Synonyms
Flue gas roof duct
