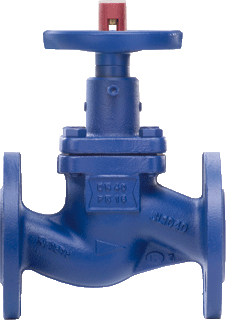

Globe valve
Code
EC010120Version
Group
Valves/taps/controls (EG015610)Release
ETIM-8.0
Features
01 | Housing material EF001596 - Alphanumeric | |
02 | Material quality EF001257 - Alphanumeric | |
03 | Nominal diameter EF023191 - Alphanumeric | |
04 | Outer pipe diameter all connections (mm) EF020126 - Numeric | |
05 | Connection 1 EF000321 - Alphanumeric | |
06 | With coupling connection 1 EF021872 - Logical | |
07 | Connection 2 EF000322 - Alphanumeric | |
08 | With coupling connection 2 EF021873 - Logical | |
09 | Article compression class EF020007 - Alphanumeric | |
10 | Flange compression class EF020149 - Alphanumeric | |
11 | Max. pressure difference at 20 °C (bar) EF020150 - Numeric | |
12 | Max. medium temperature (continuous) (°C) EF020023 - Numeric | |
13 | Min. medium temperature (continuous) (°C) EF020077 - Numeric | |
14 | Surface protection EF000139 - Alphanumeric | |
15 | Internally lined EF023820 - Alphanumeric | |
16 | Freeflow EF020116 - Logical | |
17 | Self-closing EF020103 - Logical | |
18 | Spring closing (NC) EF025203 - Logical | |
19 | Spring opening (NO) EF025204 - Logical | |
20 | Spindle and/or hand wheel rising EF020025 - Logical | |
21 | Operation EF002147 - Alphanumeric | |
22 | Connection operation EF025202 - Alphanumeric | |
23 | Type of shut-off valve EF025240 - Alphanumeric | |
24 | Valve control EF024254 - Alphanumeric | |
25 | Type of bonnet EF025167 - Alphanumeric | |
26 | Right-angled model EF003645 - Logical | |
27 | Bellows seal EF020059 - Logical | |
28 | Sealing EF001776 - Alphanumeric | |
29 | Contour code EF025254 - Alphanumeric | |
30 | With position indicator EF022469 - Logical | |
31 | With drain valve EF020078 - Logical | |
32 | Zeta value EF020002 - Numeric | |
33 | Standard construction length EF025181 - Alphanumeric | |
34 | Length of connection 1 (mm) EF020151 - Numeric | |
35 | Working length connection 1 (mm) EF020153 - Numeric | |
36 | Length of connection 2 (mm) EF020152 - Numeric | |
37 | Working length connection 2 (mm) EF020154 - Numeric | |
38 | Handle/hand wheel height (mm) EF020155 - Numeric | |
39 | Length of handle/diameter of hand wheel (mm) EF020156 - Numeric | |
40 | Angle of the valve (°) EF020157 - Numeric | |
41 | Spindle angle (°) EF020158 - Numeric | |
42 | With backflow safeguard EF021720 - Logical | |
43 | Backflow safeguard according to EN 1717 EF011775 - Alphanumeric | |
44 | Material primary spindle seal EF025197 - Alphanumeric | |
45 | Suitable for liquids EF007245 - Logical | |
46 | Suitable for gases EF007249 - Logical | |
47 | Suitable for steam EF020335 - Logical | |
48 | Stainless steel seat ring EF015203 - Logical | |
49 | Spindle seal replaceable under pressure EF015204 - Logical | |
50 | Spindle thread not in contact with the medium EF015205 - Logical | |
51 | VdS quality mark EFDE0010 - Logical | |
52 | KIWA certified EFNL0001 - Logical | |
53 | Gastec QA mark EFNL0002 - Logical | |
54 | Type approval according to BBR/EKS EFSE0002 - Logical |
Synonyms
Bellows valve
Flange valve
Globe valve
Quick release valve
Screw valve
Self-closing flap valve
Strang valve
Thread valve
Valve
Vortex valve
