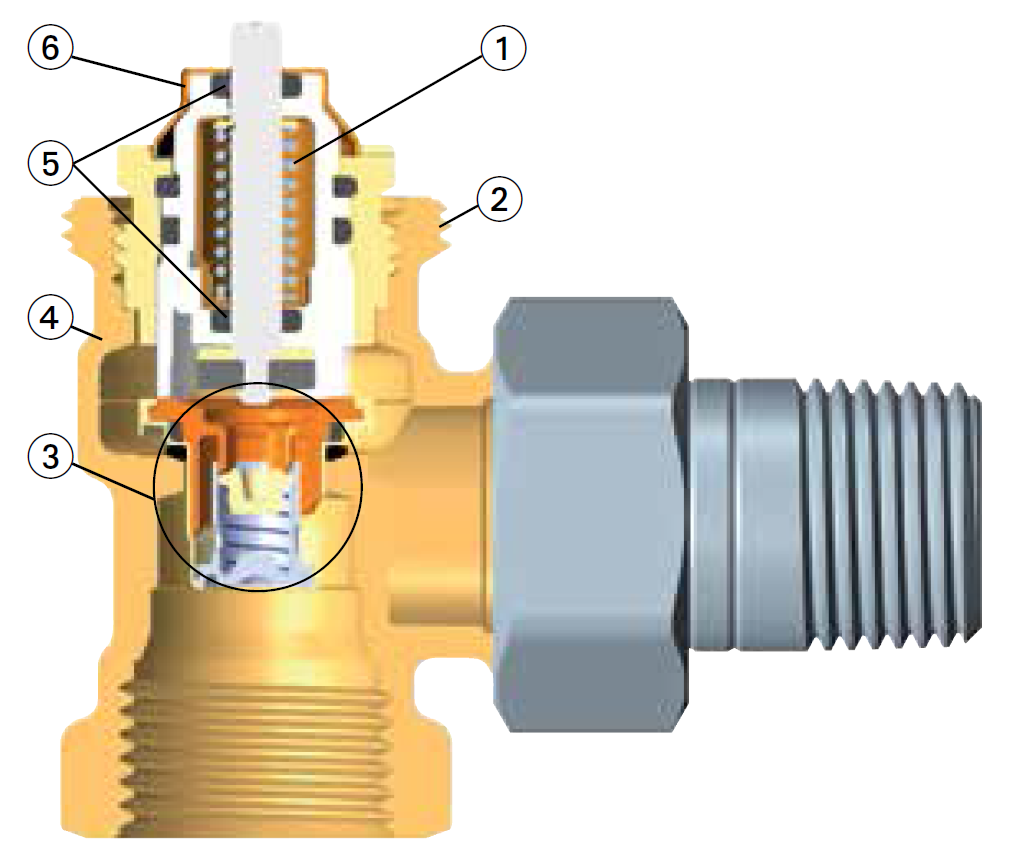

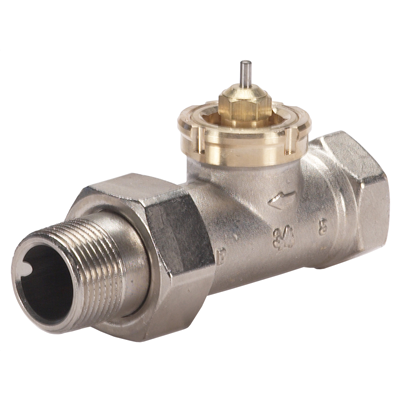

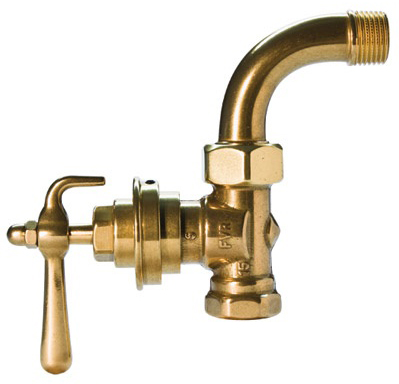

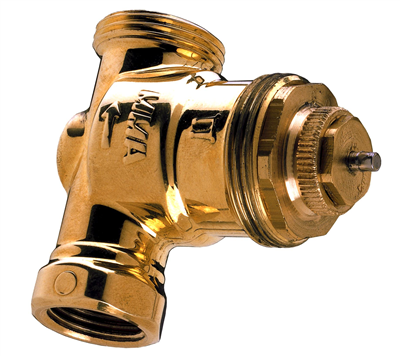

Radiator stop valve EC010136

Published Valves/taps/controls EG015610

/

Changes since v7

Features 32

1
Housing materialEF001596

Choose one value

BronzeBrassOther
2
Surface protectionEF000139

Choose one value

UntreatedNickel-platedChromium-platedGiltCoatedOther
3
Size of radiator connectionEF021250

Choose one value

3/8 inch (10)1/2 inch (15)3/4 inch (20)3/4 inch Euroconus1 inch (25)1 1/4 inch (32)1 1/2 inch (40)M22 x 1.5M24 x 1.5M26 x 1.5M28 x 1.5M34 x 1.5Other
4
Size of pipe connectionEF021187

Choose one value

3/8 inch (10)1/2 inch (15)3/4 inch (20)3/4 inch Euroconus1 inch (25)1 1/4 inch (32)1 1/2 inch (40)M22 x 1.5M24 x 1.5M26 x 1.5M28 x 1.5M34 x 1.5Other
5
Size of thermostatic adjustment element connectionEF021333

Choose one value

M28 x 1.5M30 x 1.5M30 x 1.0M38 x 1.5M40 x 1.5Clamp 26 (no longer used)Clamp 34 (no longer used)Click 22 (no longer used)Allen 22 (no longer used)Other
6
ShapeEF000051

Choose one value

StraightRight-angledRight-angled (reversed)Double right-angled (left-oriented)Double right-angled (right-oriented)Other
7
ModelEF000010

Choose one value

Tailpiece/external threadTailpiece/internal threadInternal thread/external threadExternal thread/external threadOther
8
With straight tailpieceEF015511

Yes or no

YesNo
9
With bent tailpieceEF023855

Yes or no

YesNo
10
With compression setEF020050

Yes or no

YesNo
11
Pipe diameter compression setEF016247

A number in mm
12
Can be presetEF021351

Yes or no

YesNo
13
PresettingEF022467

Choose one value

NoneWith valve guardWithout valve guard
14
OperationEF002147

Choose one value

Manually operatedThermostatic with buttonThermostatic without buttonOther
15
Suitable for single pipe systemEF020523

Yes or no

YesNo
16
Suitable for two pipe systemEF020524

Yes or no

YesNo
17
Thermostatically preparedEF023685

Yes or no

YesNo
18
Reverse direction of flowEF021253

Yes or no

YesNo
19
Colour buttonEF000190

Choose one value

WhiteGreyBlackBlueGreenRedOrangeOther
20
With dust capEF020041

Yes or no

YesNo
21
Kv valueEF021251

A range, from and to
22
Kv 2 valueEF021255

A number
23
Kvs valueEF022466

A number
24
Automatic flow controlEF009265

Yes or no

YesNo
25
Throughflow capacity (min. 10 kPa)EF009262

A range, from and to, in l/h
26
Throughflow capacity (min. 15 kPa)EF009263

A range, from and to, in l/h
27
Shortened construction lengthEF021252

Yes or no

YesNo
28
Length of connection 1EF020151

A number in mm
29
Working length connection 1EF020153

A number in mm
30
Length of connection 2EF020152

A number in mm
31
Working length connection 2EF020154

A number in mm
32
HeightEF000040

A number in mm

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
