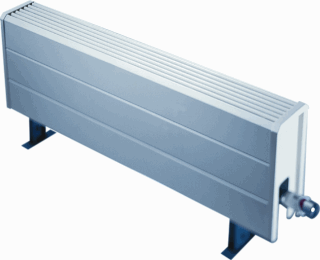

    Convector radiator

    Code

    EC010152

    Version

    5

    Group

    Radiators/convectors (EG015710)

    Release

    ETIM-8.0
    nl 2BA se RSK be InstallData fi Sahkonumerot
    Features

    01

    Housing material

    EF001596 - Alphanumeric

    02

    Material grid

    EF022329 - Alphanumeric

    03

    Material heat exchanger

    EF020003 - Alphanumeric

    04

    Height (mm)

    EF000040 - Numeric

    05

    Length (mm)

    EF001438 - Numeric

    06

    Depth (mm)

    EF000049 - Numeric

    07

    Heat emission according to EN 442 20 °C - 75/65 (W)

    EF024605 - Numeric

    08

    Heat emission according to EN 442 20 °C - 55/45 (W)

    EF015667 - Numeric

    09

    Heat emission according to EN 442 20 °C - 70/40 (W)

    EF012564 - Numeric

    10

    With dynamic power booster

    EF025275 - Logical

    11

    Suitable for top cooling

    EF025276 - Logical

    12

    Total cooling capacity 26 °C - 17/19 (W)

    EF025277 - Numeric

    13

    N-exponent

    EF024606 - Numeric

    14

    Max. operating pressure (bar)

    EF020449 - Numeric

    15

    Water content (l)

    EF002276 - Numeric

    16

    Standard colour

    EF024896 - Logical

    17

    Colour

    EF000007 - Alphanumeric

    18

    RAL-number

    EF000116 - Numeric

    19

    Degree of gloss

    EF024897 - Alphanumeric

    20

    Mounting method

    EF000003 - Alphanumeric

    21

    Connection combi 11, underside left/underside left

    EF024615 - Logical

    22

    Connection combi 21, side bottom-left/underside left

    EF024656 - Logical

    23

    Connection combi 22, side bottom-left/side bottom-left

    EF024653 - Logical

    24

    Connection combi 27, side bottom-left/side bottom-right

    EF024672 - Logical

    25

    Connection combi 72, side bottom-right/side bottom-left

    EF026394 - Logical

    26

    Connection combi 77, side bottom-right/side bottom-right

    EF024654 - Logical

    27

    Connection combi 78, side bottom-right/underside right

    EF024655 - Logical

    28

    Connection combi 88, underside right/underside right

    EF024616 - Logical

    29

    Suitable for damp space

    EF024696 - Logical

    30

    With de-aeration connection

    EF020224 - Logical

    31

    With de-aerator

    EF020079 - Logical

    32

    With drain possibility (connection)

    EF022470 - Logical

    33

    With drain valve

    EF020078 - Logical

    34

    With integrated thermostatic valve

    EF024634 - Logical

    35

    Air inlet

    EF024657 - Alphanumeric

    36

    Air exhaust

    EF024658 - Alphanumeric

    37

    Base colour same as housing

    EF024660 - Logical

    38

    Base height (mm)

    EF024659 - Range

    39

    With consoles

    EF024677 - Logical

    40

    With mounting material

    EF006009 - Logical

    41

    Water-bearing front panel

    EF011738 - Logical
    Synonyms

    Convector radiator
