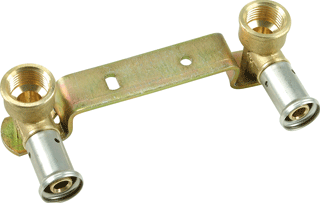

Wall plate on bracket
Code
EC010162Version
4
Group
Fittings, flanges and connectors (EG015540)Release
ETIM-7.0
Features
01 | Model EF000010 - Alphanumeric | |
02 | System specific EF025253 - Logical | |
03 | Housing material EF022461 - Alphanumeric | |
04 | Material quality EF001257 - Alphanumeric | |
05 | Surface protection EF000139 - Alphanumeric | |
06 | Nominal diameter connection EF025620 - Alphanumeric | |
07 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
08 | Connection EF000443 - Alphanumeric | |
09 | Thread size tap connection EF010681 - Alphanumeric | |
10 | Length of connection 1 (mm) EF020151 - Numeric | |
11 | Working length connection 1 (mm) EF020153 - Numeric | |
12 | Length of connection 2 (mm) EF020152 - Numeric | |
13 | Working length connection 2 (mm) EF020154 - Numeric | |
14 | Length from wall plate (mm) EF020417 - Numeric | |
15 | Distance centre-to-centre (mm) EF020200 - Numeric | |
16 | Min. medium temperature (continuous) (°C) EF020077 - Numeric | |
17 | Max. medium temperature (continuous) (°C) EF020023 - Numeric | |
18 | Max. operating pressure at 20 °C (bar) EF023116 - Numeric | |
19 | Zeta value EF020002 - Numeric | |
20 | Contour code EF025254 - Alphanumeric | |
21 | KIWA certified EF020075 - Logical | |
22 | Gastec QA EF020074 - Logical |
Synonyms
Double wall plate on bracket, system connection
Wall plate on bracket
