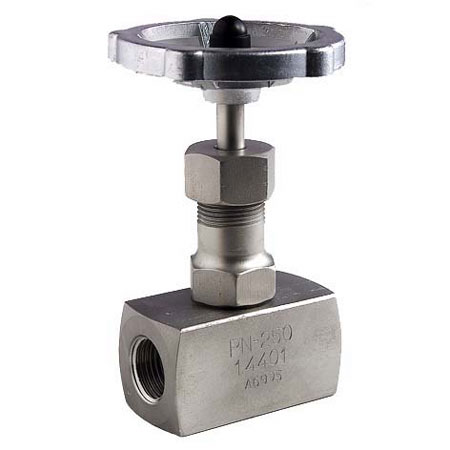

Needle valve
Code
EC010238Version
4
Group
Valves/taps/controls (EG015610)Release
ETIM-7.0
Features
01 | Housing material EF022461 - Alphanumeric | |
02 | Material quality EF001257 - Alphanumeric | |
03 | Surface protection EF000139 - Alphanumeric | |
04 | Nominal diameter EF023191 - Alphanumeric | |
05 | Outer pipe diameter all connections (mm) EF020126 - Numeric | |
06 | Connection 1 EF000321 - Alphanumeric | |
07 | Connection 2 EF000322 - Alphanumeric | |
08 | Article compression class EF020007 - Alphanumeric | |
09 | Flange compression class EF020149 - Alphanumeric | |
10 | Max. pressure difference at 20 °C (bar) EF020150 - Numeric | |
11 | Max. medium temperature (continuous) (°C) EF020023 - Numeric | |
12 | Min. medium temperature (continuous) (°C) EF020077 - Numeric | |
13 | Operation EF002147 - Alphanumeric | |
14 | Right-angled model EF003645 - Logical | |
15 | Rotating needle EF021459 - Logical | |
16 | Spindle and/or hand wheel rising EF020025 - Logical | |
17 | Zeta value EF020002 - Numeric | |
18 | Length of connection 1 (mm) EF020151 - Numeric | |
19 | Working length connection 1 (mm) EF020153 - Numeric | |
20 | Length of connection 2 (mm) EF020152 - Numeric | |
21 | Working length connection 2 (mm) EF020154 - Numeric | |
22 | Handle/hand wheel height (mm) EF020155 - Numeric | |
23 | Length of handle/diameter of hand wheel (mm) EF020156 - Numeric |
Synonyms
Needle valve
Needle valve block
Thread valve
Valve
