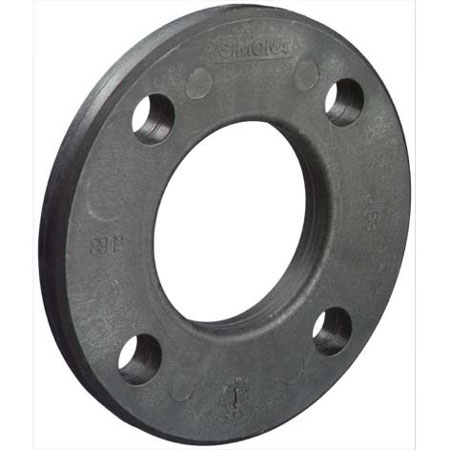

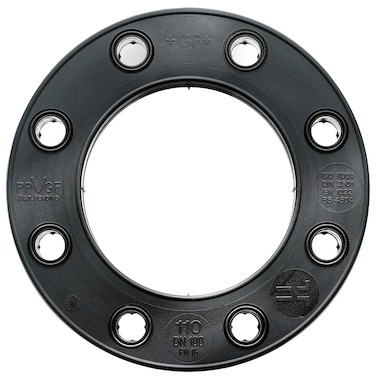

Loose plate flange
Code
EC010591Version
4
Group
Fittings, flanges and connectors (EG015540)Release
ETIM-8.0
Features
01 | Material EF002169 - Alphanumeric | |
02 | Material quality EF001257 - Alphanumeric | |
03 | Fleece reinforced EF010369 - Logical | |
04 | Metal-reinforced EF022811 - Logical | |
05 | Surface protection EF000139 - Alphanumeric | |
06 | Nominal diameter EF023191 - Alphanumeric | |
07 | Inner diameter of push-on flange (mm) EF020226 - Numeric | |
08 | Outer diameter of flange (mm) EF021531 - Numeric | |
09 | Flange compression class EF020149 - Alphanumeric | |
10 | Min. medium temperature (continuous) (°C) EF020077 - Numeric | |
11 | Max. medium temperature (continuous) (°C) EF020023 - Numeric | |
12 | Thickness flange (mm) EF020225 - Numeric | |
13 | Pitch circle (mm) EF021643 - Numeric | |
14 | Number of bolt holes EF021779 - Numeric | |
15 | Diameter bolt hole (mm) EF021780 - Numeric |
Synonyms
Flange
Flat flange
Lap joint flange
Loose flange
Loose plate flange
Push-on flange
Smooth flange
