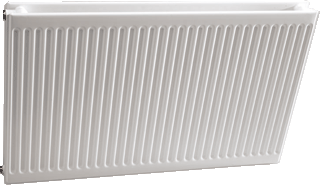

    Panel radiator

    Code

    EC011022

    Version

    4

    Group

    Radiators/convectors (EG015710)

    Release

    ETIM-7.0
    nl 2BA se RSK be InstallData fi Sahkonumerot
    Features

    01

    Material

    EF002169 - Alphanumeric

    02

    Type

    EF001139 - Alphanumeric

    03

    Surface structure front panel

    EF012507 - Alphanumeric

    04

    Water-bearing front panel

    EF011738 - Logical

    05

    Height (mm)

    EF000040 - Numeric

    06

    Length (mm)

    EF001438 - Numeric

    07

    Depth (mm)

    EF000049 - Numeric

    08

    Heat emission according to EN 442 20 °C - 75/65 (W)

    EF024605 - Numeric

    09

    Heat emission according to EN 442 20 °C - 70/40 (W)

    EF012564 - Numeric

    10

    N-exponent

    EF024606 - Numeric

    11

    Max. operating pressure (bar)

    EF020449 - Numeric

    12

    Water content (l)

    EF002276 - Numeric

    13

    Standard colour

    EF024896 - Logical

    14

    Colour

    EF000007 - Alphanumeric

    15

    RAL-number

    EF000116 - Numeric

    16

    Degree of gloss

    EF024897 - Alphanumeric

    17

    Welded-on strips

    EF020014 - Logical

    18

    With side lining

    EF024607 - Logical

    19

    With top lining

    EF024639 - Logical

    20

    Collapsible

    EF000091 - Logical

    21

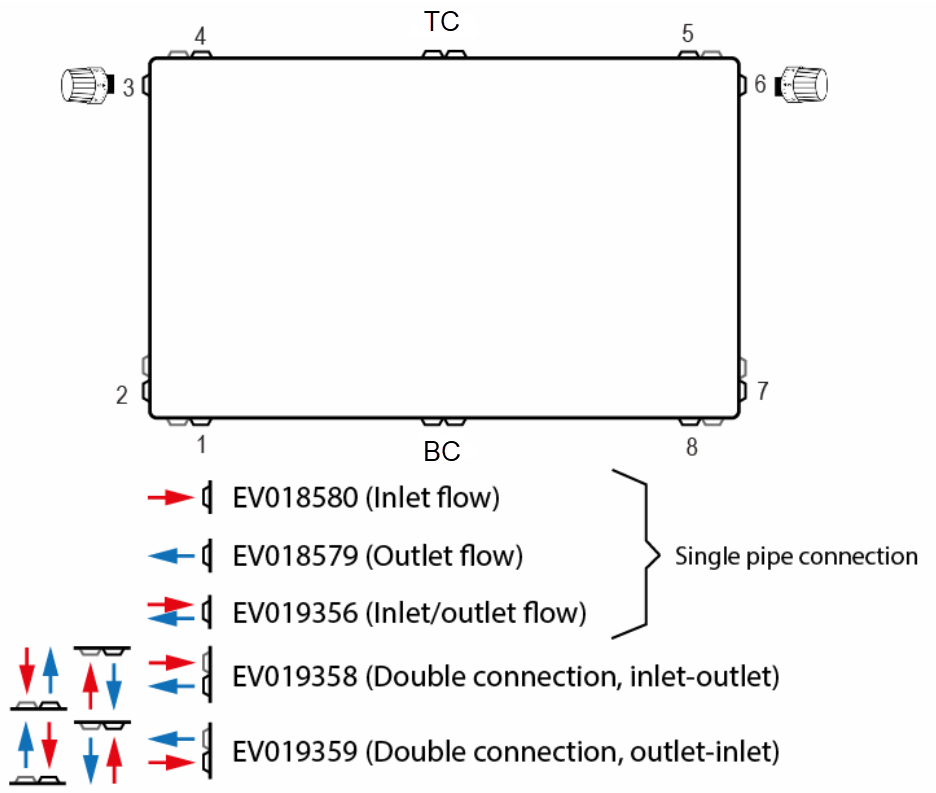

    Number of standard connections

    EF024624 - Alphanumeric

    22

    Connection combi 11, underside left/underside left

    EF024615 - Logical

    23

    Connection combi 18, underside left/underside right

    EF024625 - Logical

    24

    Connection combi 32, side top-left/side bottom-left

    EF024617 - Logical

    25

    Connection combi 37, side top-left/side bottom-right

    EF024611 - Logical

    26

    Connection combi 41, top-left/underside left

    EF024630 - Logical

    27

    Connection combi 45, top-left/top-right

    EF024628 - Logical

    28

    Connection combi 48, top-left/underside right

    EF024632 - Logical

    29

    Connection combi 54, top-right/top-left

    EF024629 - Logical

    30

    Connection combi 58, top-right/underside right

    EF024631 - Logical

    31

    Connection combi 62, side top-right/side bottom-left

    EF024612 - Logical

    32

    Connection combi 67, side top-right/side bottom-right

    EF024610 - Logical

    33

    Connection combi 81, underside right/underside left

    EF024626 - Logical

    34

    Connection combi 88, underside right/underside right

    EF024616 - Logical

    35

    Connection combi MO, bottom-centre/bottom-centre

    EF024614 - Logical

    36

    Connection combi MB, top-centre/top-centre

    EF024613 - Logical

    37

    Thread size (inch)

    EF024307 - Alphanumeric

    38

    Thread connection

    EF022726 - Alphanumeric

    39

    Suitable for damp space

    EF024696 - Logical

    40

    With single-point connection

    EF024619 - Logical

    41

    With de-aeration connection

    EF020224 - Logical

    42

    With de-aerator

    EF020079 - Logical

    43

    With drain possibility (connection)

    EF022470 - Logical

    44

    With drain valve

    EF020078 - Logical

    45

    With integrated thermostatic valve

    EF024634 - Logical

    46

    With wall brackets

    EF024635 - Logical

    47

    Suitable for electrical element

    EF024674 - Logical

    48

    With electrical element

    EF024675 - Logical

    49

    With blind plugs

    EF024636 - Logical

    50

    With mounting material

    EF006009 - Logical

    51

    Heat emission according to EN 442 laboratory

    EF024649 - Logical
    Synonyms

    Panel radiator

    Plinth radiator

    Plinth radiators
