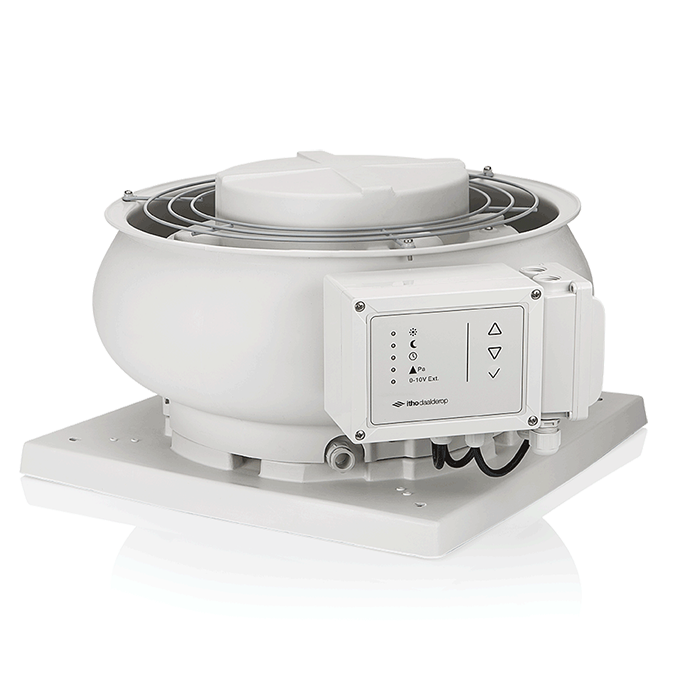

Roof mounted fan with continuous current (DC)
Code
EC011216Version
Group
Pressure increase/decrease (EG015260)Release
ETIM-7.0
Features
01 | Housing material EF001596 - Alphanumeric | |
02 | Housing material quality EF024143 - Alphanumeric | |
03 | Surface protection housing EF024150 - Alphanumeric | |
04 | Material impeller EF024144 - Alphanumeric | |
05 | Material quality impeller/pump wheel EF024149 - Alphanumeric | |
06 | Surface protection impeller EF024151 - Alphanumeric | |
07 | Air volume at 50 Pa (m³/h) EF024152 - Numeric | |
08 | Air volume at 100 Pa (m³/h) EF024153 - Numeric | |
09 | Air volume at 150 Pa (m³/h) EF024154 - Numeric | |
10 | Air volume at 200 Pa (m³/h) EF024155 - Numeric | |
11 | Air volume at 250 Pa (m³/h) EF024156 - Numeric | |
12 | Air volume at 300 Pa (m³/h) EF024157 - Numeric | |
13 | Air volume at 400 Pa (m³/h) EF024158 - Numeric | |
14 | Air volume at 500 Pa (m³/h) EF024159 - Numeric | |
15 | Air volume at 600 Pa (m³/h) EF024160 - Numeric | |
16 | Constant pressure EF024181 - Logical | |
17 | Constant volume EF024180 - Logical | |
18 | Connection voltage EF020233 - Alphanumeric | |
19 | Specific fan power at Qmax (kW/(m³/s)) EF024231 - Numeric | |
20 | Max. electric power input (kW) EF024222 - Numeric | |
21 | Nominal current (A) EF000001 - Numeric | |
22 | Fan tiltable EF024230 - Alphanumeric | |
23 | Back draught shutter EF024229 - Alphanumeric | |
24 | With maintenance-/service switch EF024169 - Logical | |
25 | Electrical connection EF003701 - Alphanumeric | |
26 | Cover design EF024245 - Alphanumeric | |
27 | Exhaust direction EF024166 - Alphanumeric | |
28 | Axial model EF024145 - Logical | |
29 | Air supply roof fan EF024163 - Logical | |
30 | Max. medium temperature (continuous) (°C) EF020023 - Numeric | |
31 | Sound pressure level at 4 m (outdoor) at Qmax (dB(A)) EF024223 - Numeric | |
32 | Exhaust side damped EF024267 - Logical | |
33 | Operating height (mm) EF022065 - Numeric | |
34 | Base size, internal, square (mm) EF024219 - Numeric | |
35 | Base size, internal, round (mm) EF024220 - Numeric | |
36 | Pitch measure (mm) EF006213 - Numeric | |
37 | Nominal duct diameter (mm) EF020311 - Numeric |
Synonyms
Roof mounted fan with continuous current (DC)
