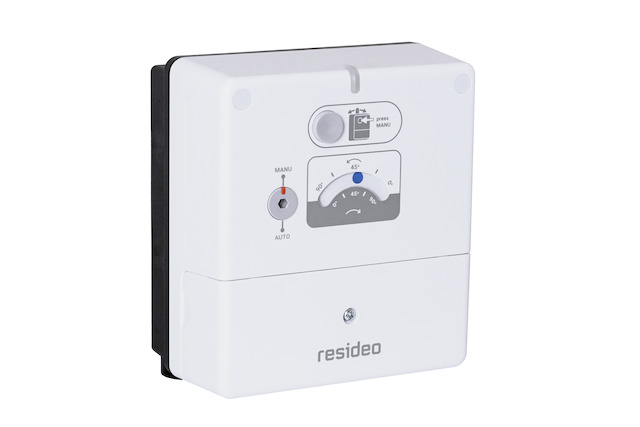

Electric servomotor EC011290
Features 41
- 1
Suitable for valveEF022816
Yes or no
YesNo - 2
Suitable for air accessoryEF020675
Yes or no
YesNo - 3
Supply voltageEF023970
Choose one value
24 V AC24 V DC24 V AC/DC42 V AC42 V DC12 - 48 V DC / 15 - 48 V AC110 V AC115 V AC230 V AC400 V AC - 4
Control signalEF000513
Choose one value
0 - 10 V0 - 5 V / 5 - 10 V2 - 10 V0 - 20 V0 - 20 mA4 - 20 mA0 - 10 V / 4 - 20 mABACnet MSTP/IPBinary3-point - 5
ModelEF000010
Choose one value
LinearRotating - 6
Regulation type on/offEF011927
Yes or no
YesNo - 7
Regulation type modulatingEF011928
Yes or no
YesNo - 8
Regulation type splitrangeEF011929
Yes or no
YesNo - 9
Connection cable lengthEF003636
A number in m
- 10
TransmissionEF023898
Choose one value
With cogwheelsMagneticHydraulic - 11
Connection to stop valveEF021212
Choose one value
NoneM28 x 1.5M30 x 1.5M3822 mm26 mm34 mmBrand-dependentOther - 12
With direct mount top flange according to ISO 5211EF025126
Yes or no
YesNo - 13
Return at zero supply voltageEF023956
Yes or no
YesNo - 14
Deactivated when closedEF021211
Yes or no
YesNo - 15
Automatic stroke recognitionEF020676
Yes or no
YesNo - 16
Adjustable position feedback signalEF024205
Yes or no
YesNo - 17
Auxiliary contactsEF024109
Yes or no
YesNo - 18
Position reporting systemEF021862
Choose one value
NoneOptional0 - 5 V0 - 10 V2-10 V (no longer used)0 - 20 mABus connectionBus connection / 2-10 VPotentiometerOther - 19
Auxiliary contacts optionalEF020636
Yes or no
YesNo - 20
End contactsEF024110
Choose one value
None12Other - 21
Adjustable operating rangeEF023901
Yes or no
YesNo - 22
With mechanical setting indicatorEF021292
Yes or no
YesNo - 23
Suitable for manual operationEF002978
Yes or no
YesNo - 24
Operating timeEF021863
A number in s
- 25
Torque (no longer used)EF021864
A number in Nm
- 26
Potential free switch contactEF003626
Yes or no
YesNo - 27
Adjusting forceEF024111
A number in N
- 28
Stroke lengthEF021866
A number in mm
- 29
Self-adjusting travel lengthEF024112
Yes or no
YesNo - 30
Max. angle of rotationEF023860
A number in °
- 31
With safety functionEF020677
Yes or no
YesNo - 32
Degree of protection (NEMA)EF011959
Choose one value
1233R44X1213Other - 33
Degree of protection (IP)EF005474
Choose one value
IP00IP05IP10IP12IP20IP21IP22IP23IP24IP25 - 34
Max. electric power inputEF023037
A number in VA
- 35
Allowable relative humidityEF023900
A range, from and to, in %
- 36
Ambient temperatureEF002386
A range, from and to, in °C
- 37
HeightEF000040
A number in mm
- 38
WidthEF000008
A number in mm
- 39
DepthEF000049
A number in mm
- 40
Explosion-proofEF004663
Yes or no
YesNo - 41
Housing materialEF001596
Choose one value
SteelAluminiumPlasticOther
Codes after each name are ETIM feature codes. Use them, not the names, in product data.
