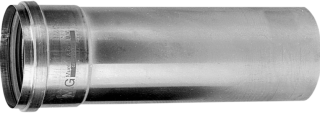

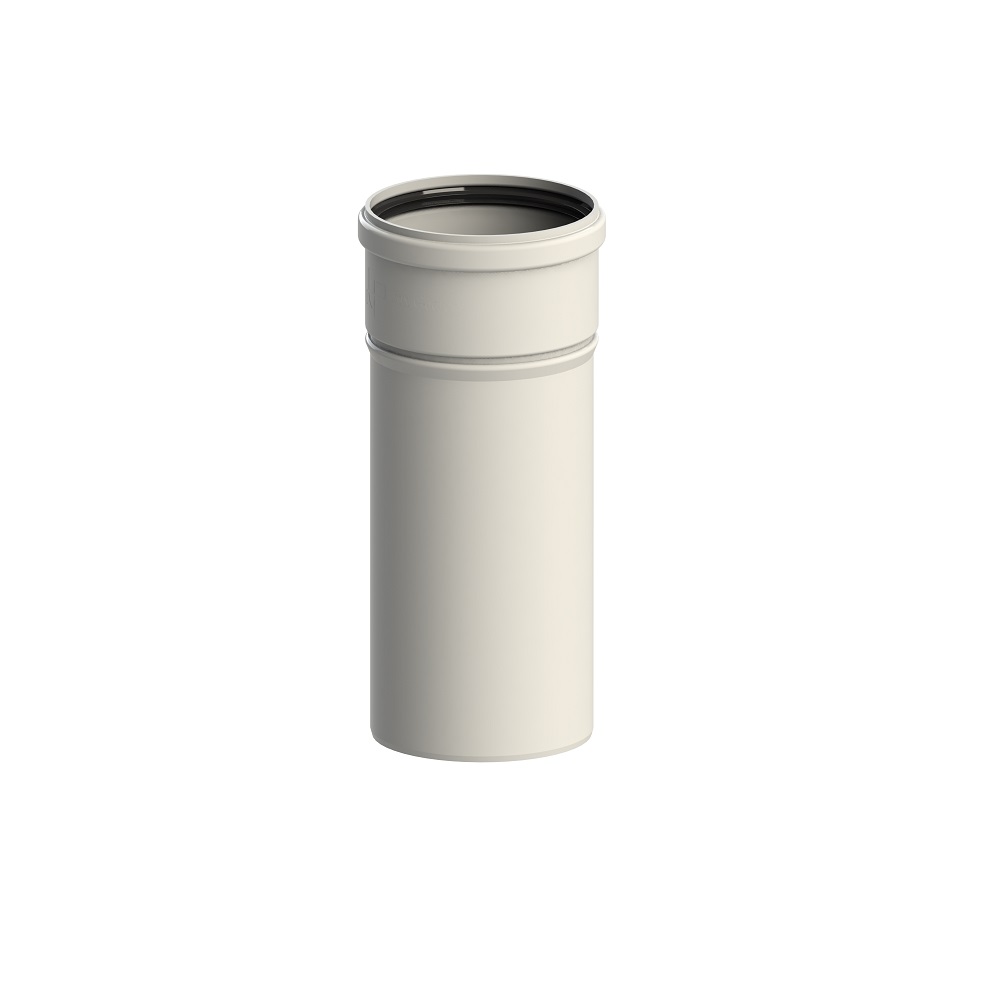

Single-walled flue gas pipe
Code
EC011299Version
6
Group
Duct and pipe for flue gas and air (EG015550)Release
ETIM-8.0
Features
01 | Material EF002169 - Alphanumeric | |
02 | Material quality EF001257 - Alphanumeric | |
03 | Max. medium temperature (continuous) (°C) EF020023 - Numeric | |
04 | Positive (overpressure) EF024123 - Logical | |
05 | Wet (condensing) EF024124 - Logical | |
06 | Negative (negative pressure) EF024125 - Logical | |
07 | Dry (non-condensing) EF024126 - Logical | |
08 | Surface protection EF000139 - Alphanumeric | |
09 | Surface treatment EF025109 - Alphanumeric | |
10 | Outer diameter (mm) EF000015 - Numeric | |
11 | Wall thickness (mm) EF000229 - Numeric | |
12 | Production method EF022465 - Alphanumeric | |
13 | Connector, connection 1 EF024264 - Alphanumeric | |
14 | Outer diameter connection 1 (mm) EF021903 - Numeric | |
15 | Inner diameter, connection 1 (mm) EF025608 - Numeric | |
16 | Connector, connection 2 EF024265 - Alphanumeric | |
17 | Outer diameter connection 2 (mm) EF021904 - Numeric | |
18 | Inner diameter, connection 2 (mm) EF025609 - Numeric | |
19 | Only suitable for air supply EF024071 - Logical | |
20 | With lip ring EF021648 - Logical | |
21 | Number of lips EF022867 - Numeric | |
22 | Position of lips EF021229 - Alphanumeric | |
23 | Material sealing EF022606 - Alphanumeric | |
24 | With clamping strip EF021649 - Logical | |
25 | With pull-out protection EF015287 - Logical | |
26 | Length (mm) EF001438 - Numeric | |
27 | Working length (mm) EF006318 - Numeric | |
28 | Colour EF000007 - Alphanumeric | |
29 | RAL-number EF000116 - Numeric |
Synonyms
Single-walled flue gas pipe
