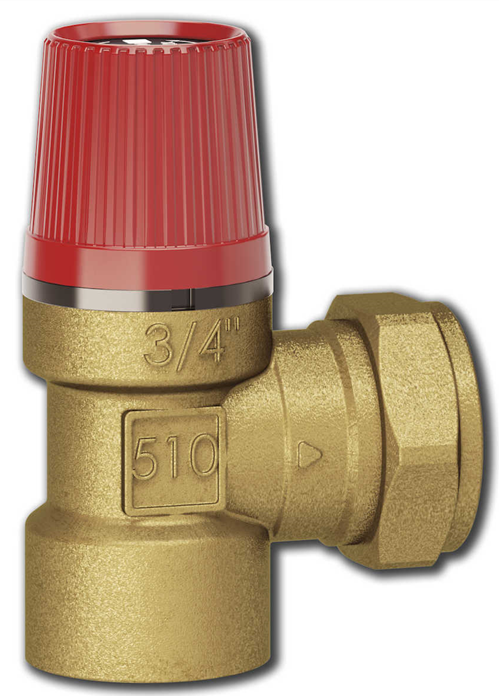

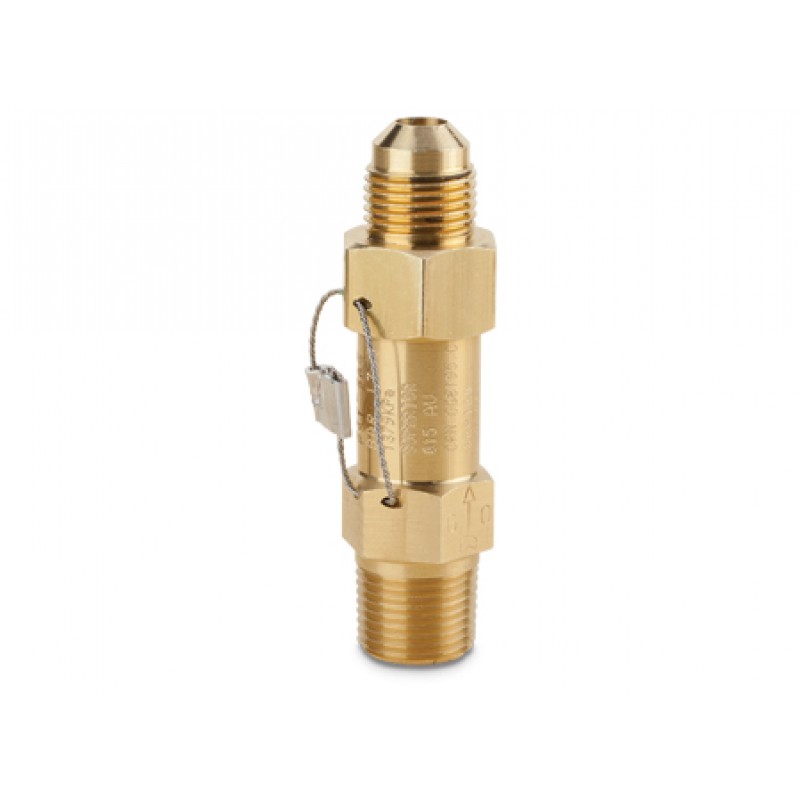

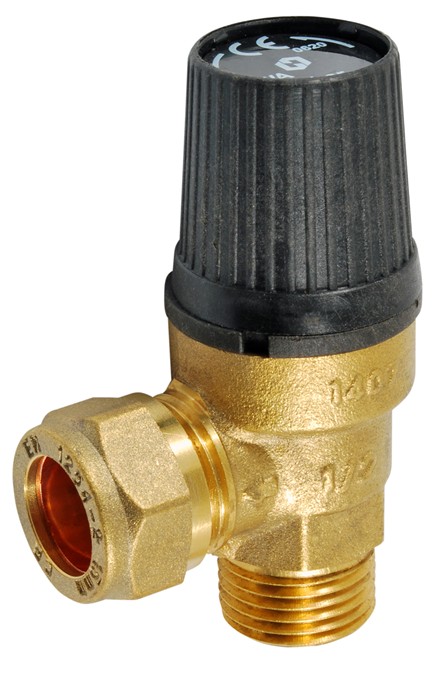

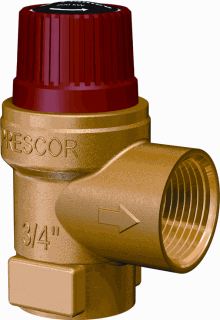

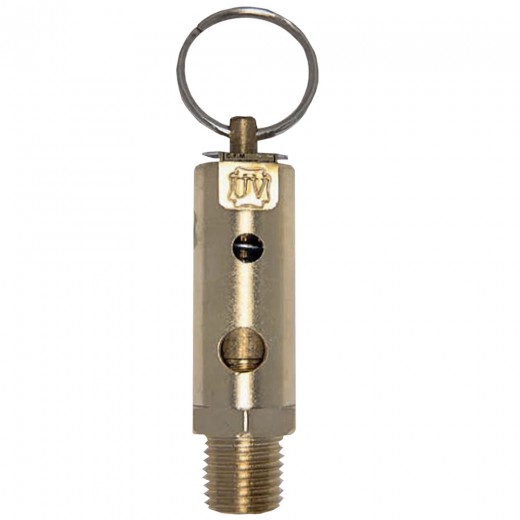

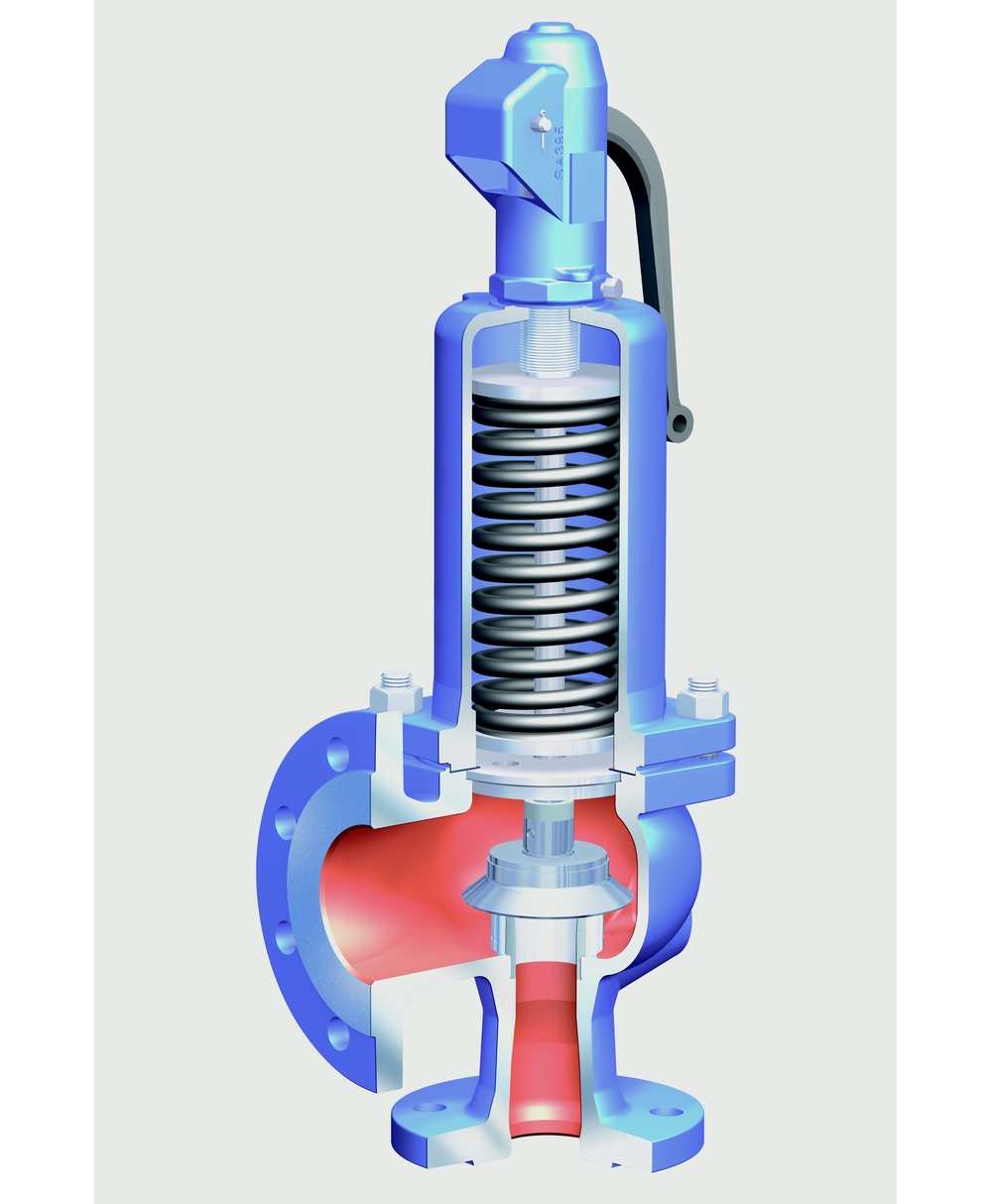

Safety valve EC011311

Published
Measuring and control devices EG015810

Features 30

  1. 1

    ModelEF000010

    Choose one value

    StraightRight-angledOther
  2. 2

    Housing materialEF001596

    Choose one value

    AluminiumBrassBronzeCast ironCopperStainless steelSteelPlasticOther
  3. 3

    Material qualityEF001257

    Choose one value

    Stainless steel 304 (1.4301)Stainless steel 304 L (1.4306)Stainless steel 316 (1.4401)Stainless steel 316 L (1.4404)Stainless steel 316 Ti (1.4571)Stainless steel 321 (1.4541)Cast steelForged steelAlloyed steelSheet steel (no longer used)
  4. 4

    Connection 1EF000321

    Choose one value

    Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)Flange
  5. 5

    Nominal diameter connection 1EF023193

    Choose one value

    1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 101/2 inch (15)DN 153/4 inch (20)DN 20
  6. 6

    Outer pipe diameter connection 1EF020122

    A number in mm

  7. 7

    Connection 2EF000322

    Choose one value

    Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)Flange
  8. 8

    Nominal diameter connection 2EF020052

    Choose one value

    1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 101/2 inch (15)DN 153/4 inch (20)DN 20
  9. 9

    Outer pipe diameter connection 2EF020123

    A number in mm

  10. 10

    Article pressure ratingEF020007

    Choose one value

    PressurelessPN 2.5PN 3.2PN 4PN 6PN 8PN 10PN 12.5PN 16PN 20
  11. 11

    Flange pressure ratingEF020149

    Choose one value

    PN 2.5PN 6PN 10PN 16PN 25PN 40PN 63PN 100PN 160PN 250
  12. 12

    Max. operating pressure at 20 °CEF023116

    A number in bar

  13. 13

    Max. medium temperature (continuous)EF020023

    A number in °C

  14. 14

    Min. medium temperature (continuous)EF020077

    A number in °C

  15. 15

    Surface protectionEF000139

    Choose one value

    UntreatedCoatedNickel-platedPrimerChromium-platedOther
  16. 16

    Bellows sealEF020059

    Yes or no

    YesNo
  17. 17

    SealingEF001776

    Choose one value

    MetalRubber/plasticOther
  18. 18

    Overflow pressureEF020319

    A range, from and to, in bar

  19. 19

    Suitable for continuous operationEF020320

    Yes or no

    YesNo
  20. 20

    Length of connection 1EF020151

    A number in mm

  21. 21

    Working length connection 1EF020153

    A number in mm

  22. 22

    Length of connection 2EF020152

    A number in mm

  23. 23

    Working length connection 2EF020154

    A number in mm

  24. 24

    HeightEF000040

    A number in mm

  25. 25

    Angle of the deviceEF020324

    A number in °

  26. 26

    Spindle angleEF020158

    A number in °

  27. 27

    Suitable for heatingEF024797

    Yes or no

    YesNo
  28. 28

    Suitable for coolingEF024798

    Yes or no

    YesNo
  29. 29

    Suitable for solar heatingEF016117

    Yes or no

    YesNo
  30. 30

    Suitable for hot tap waterEF021195

    Yes or no

    YesNo

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
