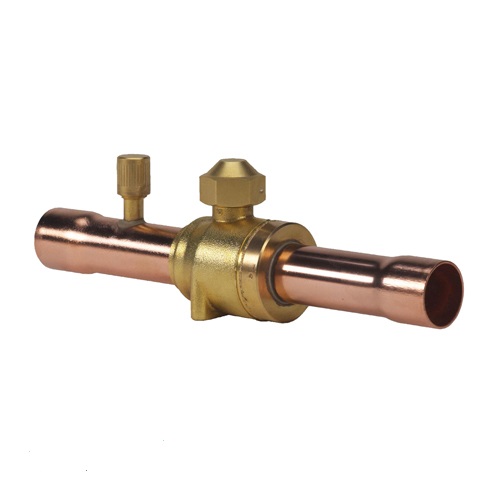

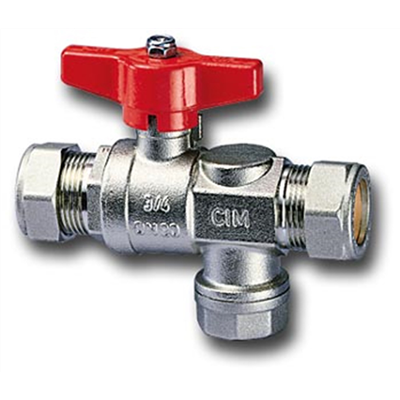

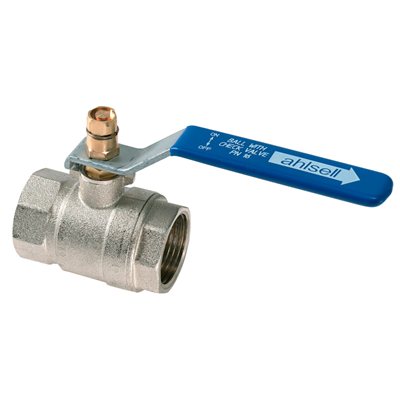

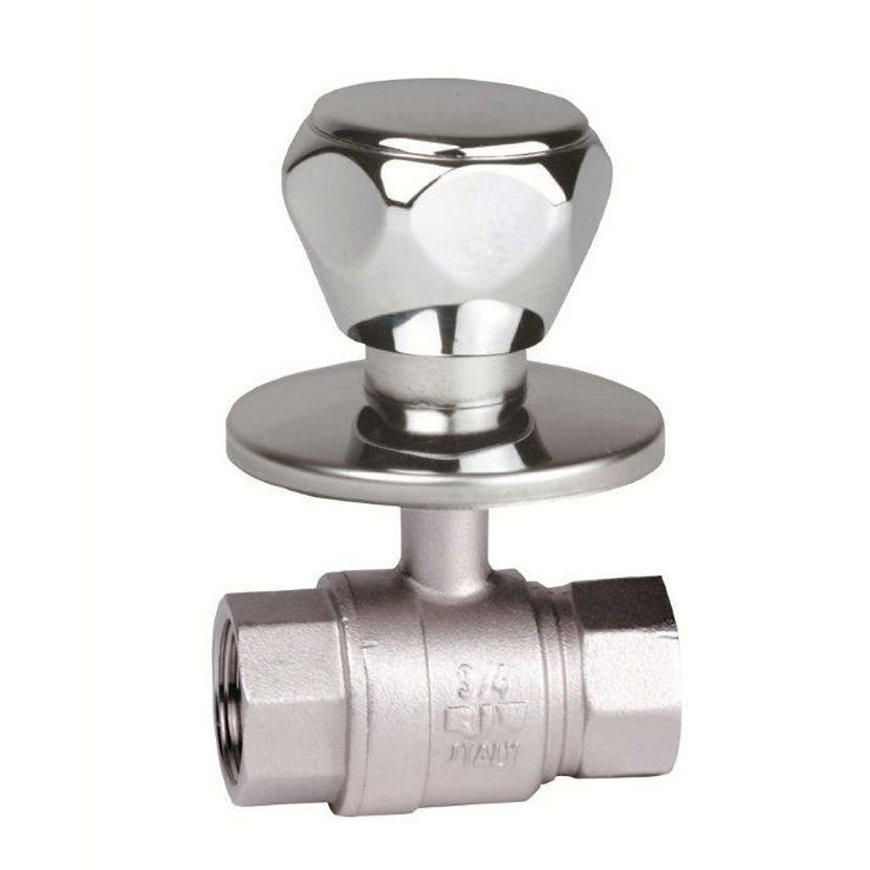

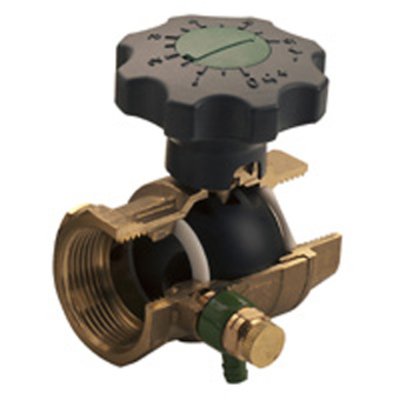

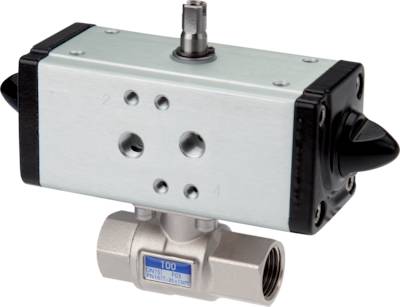

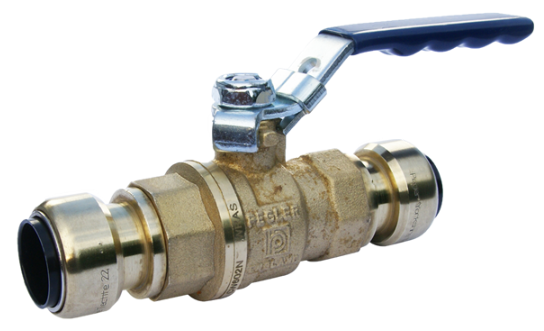

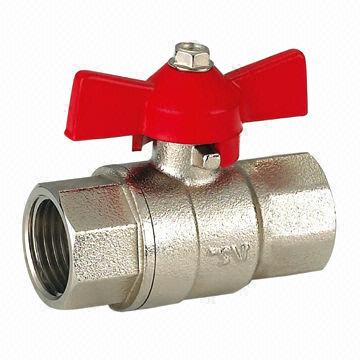

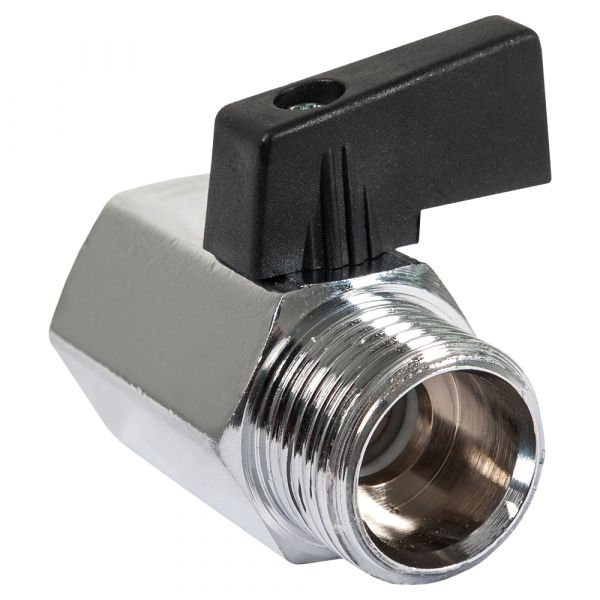

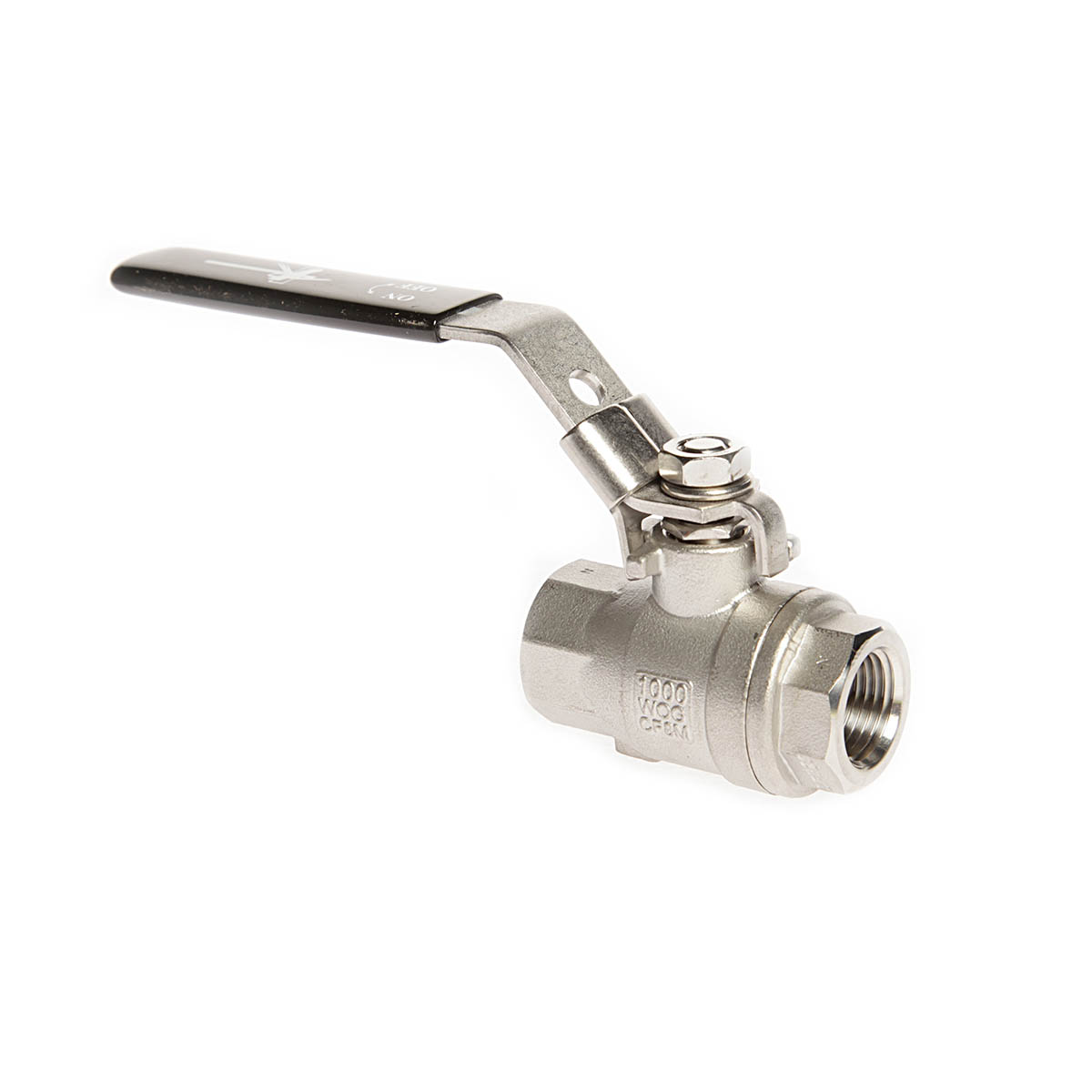

Ball valve
Code
EC011343Version
Group
Valves/taps/controls (EG015610)Release
ETIM-8.0
Features
01 | Housing material EF001596 - Alphanumeric | |
02 | Material quality EF001257 - Alphanumeric | |
03 | Surface protection housing EF024150 - Alphanumeric | |
04 | Material ball seal EF025195 - Alphanumeric | |
05 | Material ball EF025196 - Alphanumeric | |
06 | Surface protection ball EF016115 - Alphanumeric | |
07 | Material spindle EF022468 - Alphanumeric | |
08 | Material primary spindle seal EF025197 - Alphanumeric | |
09 | Material secondary spindle seal EF025198 - Alphanumeric | |
10 | Nominal diameter connection 1 EF023193 - Alphanumeric | |
11 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric | |
12 | Connection 1 EF000321 - Alphanumeric | |
13 | With coupling connection 1 EF021872 - Logical | |
14 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
15 | Contour code connection 1 EF013560 - Alphanumeric | |
16 | Nominal diameter connection 2 EF020052 - Alphanumeric | |
17 | Connection 2 EF000322 - Alphanumeric | |
18 | With coupling connection 2 EF021873 - Logical | |
19 | Contour code connection 2 EF013561 - Alphanumeric | |
20 | Sealing EF001776 - Alphanumeric | |
21 | Article compression class EF020007 - Alphanumeric | |
22 | Flange compression class EF020149 - Alphanumeric | |
23 | With drain valve EF020078 - Logical | |
24 | With drain possibility (connection) EF022470 - Logical | |
25 | With non-return valve EF024841 - Logical | |
26 | With filter EF006013 - Logical | |
27 | With thermometer EF002167 - Logical | |
28 | Model EF000010 - Alphanumeric | |
29 | With insulation shell EF014519 - Logical | |
30 | FM quality mark EF021905 - Logical | |
31 | UL quality mark EF021907 - Logical | |
32 | ULC quality mark EF021908 - Logical | |
33 | LPCB quality mark EF021909 - Logical | |
34 | Fire-safe EF022262 - Logical | |
35 | Max. pressure difference at 20 °C (bar) EF020150 - Numeric | |
36 | Medium temperature (continuous) (°C) EF023182 - Range | |
37 | Medically clean EF022628 - Logical | |
38 | Grease-free EF023842 - Logical | |
39 | Operation EF002147 - Alphanumeric | |
40 | Housing construction EF020162 - Alphanumeric | |
41 | Full bore EF020163 - Logical | |
42 | Zeta value EF020002 - Numeric | |
43 | Length of connection 1 (mm) EF020151 - Numeric | |
44 | Working length connection 1 (mm) EF020153 - Numeric | |
45 | Length of connection 2 (mm) EF020152 - Numeric | |
46 | Working length connection 2 (mm) EF020154 - Numeric | |
47 | Handle height (mm) EF020164 - Numeric | |
48 | Handgrip length (mm) EF020165 - Numeric | |
49 | Angle of the valve (°) EF020157 - Numeric | |
50 | Wrench width (mm) EF000177 - Numeric | |
51 | Wrench width union nut (mm) EF022259 - Numeric | |
52 | DVGW quality mark EFDE0002 - Logical | |
53 | VdS quality mark EFDE0010 - Logical | |
54 | KIWA certified EFNL0001 - Logical | |
55 | Type approval according to BBR/EKS EFSE0002 - Logical |
Synonyms
Ball valve
Flange valve
Thread valve
Valve
