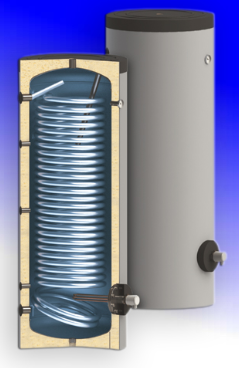

Hot tap water boiler indirectly heated EC011392

Published
Boilers and heaters EG015210

Features 38

  1. 1

    Material boiler tankEF002153

    Choose one value

    Stainless steelCopperSteelOther
  2. 2

    Material casingEF020350

    Choose one value

    NoneStainless steelSteelPlasticWoodOther
  3. 3

    Max. transferable capacity 80/10-45EF025905

    A number in kW

  4. 4

    Surface protection tankEF021064

    Choose one value

    UntreatedEnamelledCoatedOther
  5. 5

    VolumeEF000880

    A number in l

  6. 6

    Heat transferEF021157

    Choose one value

    SpiralDouble-walledOther
  7. 7

    Double separationEF020353

    Yes or no

    YesNo
  8. 8

    Wall set-upEF020359

    Yes or no

    YesNo
  9. 9

    Vertical positioningEF021399

    Yes or no

    YesNo
  10. 10

    Max. primary operating pressureEF022016

    A number in bar

  11. 11

    Max. secondary operating pressureEF022017

    A number in bar

  12. 12

    With pressure reducing valveEF021139

    Yes or no

    YesNo
  13. 13

    With pressure gaugeEF002223

    Yes or no

    YesNo
  14. 14

    With thermometerEF002167

    Yes or no

    YesNo
  15. 15

    With cleaning openingEF020356

    Yes or no

    YesNo
  16. 16

    Protective anodeEF020358

    Yes or no

    YesNo
  17. 17

    HeightEF000040

    A number in mm

  18. 18

    WidthEF000008

    A number in mm

  19. 19

    DepthEF000049

    A number in mm

  20. 20

    DiameterEF000551

    A number in mm

  21. 21

    Cold tap water connectionEF021386

    Choose one value

    Internal thread conical (NPT)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)Internal thread metricExternal thread conical (NPT)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metricThin-walled steel pipe end
  22. 22

    Nominal diameter cold tap waterEF020013

    Choose one value

    1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch
  23. 23

    Outer pipe diameter cold tap waterEF020499

    A number in mm

  24. 24

    Hot tap water connectionEF021387

    Choose one value

    Internal thread conical (NPT)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)Internal thread metricExternal thread conical (NPT)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metricThin-walled steel pipe end
  25. 25

    Nominal diameter hot tap waterEF010896

    Choose one value

    1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch
  26. 26

    Outer pipe diameter hot tap waterEF020504

    A number in mm

  27. 27

    Circulation pipe connectionEF021389

    Choose one value

    Internal thread conical (NPT)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)Internal thread metricExternal thread conical (NPT)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metricThin-walled steel pipe end
  28. 28

    Nominal diameter circulation pipeEF023930

    Choose one value

    1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch
  29. 29

    Outer pipe diameter circulation pipeEF021388

    A number in mm

  30. 30

    Connection, drainage connectionEF021391

    Choose one value

    Internal thread conical (NPT)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)Compression/soldered end (no longer used)Internal thread metricExternal thread conical (NPT)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metric
  31. 31

    Nominal diameter drain connectionEF010881

    Choose one value

    1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch
  32. 32

    Outer pipe diameter drainage connectionEF021390

    A number in mm

  33. 33

    Primary connectionEF022024

    Choose one value

    Internal thread conical (NPT)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)Internal thread metricExternal thread conical (NPT)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metricThin-walled steel pipe end
  34. 34

    Nominal diameter primary connectionEF010882

    Choose one value

    1/8 inch (6)1/4 inch (8)3/8 inch (10)1/2 inch (15)3/4 inch (20)1 inch (25)1 1/8 inch1 1/4 inch (32)1 5/16 inch1 3/8 inch
  35. 35

    Outer pipe diameter primary connectionEF022025

    A number in mm

  36. 36

    ηwh (water heating energy efficiency)EF010599

    A number in %

  37. 37

    Capacity profileEF010777

    Choose one value

    XXXSXXSXSSMLXLXXL
  38. 38

    Energy efficiency classEF000758

    Choose one value

    A+++A++A+ABCDEFG

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
