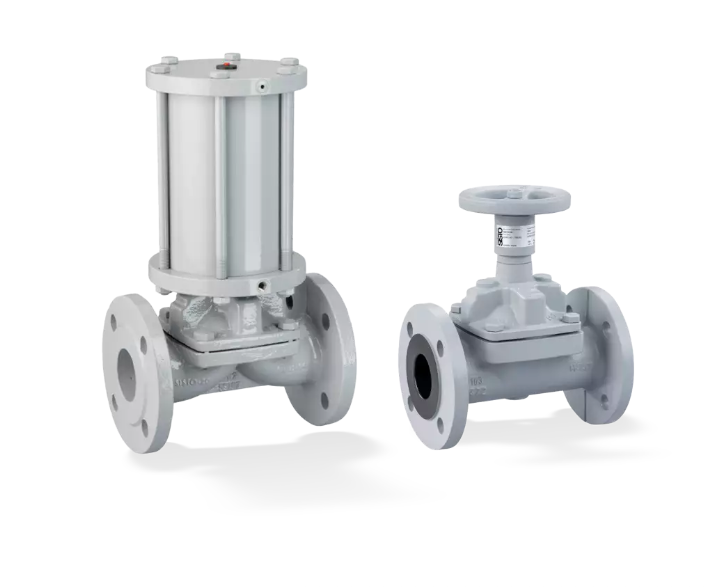

Membrane valve

Code

EC011426

Version

5

Group

Valves/taps/controls (EG015610)

Release

ETIM-7.0
nl 2BA se RSK be InstallData fi Sahkonumerot
Features

01

Housing material

EF022461 - Alphanumeric

02

Material quality

EF001257 - Alphanumeric

03

Material membrane

EF020015 - Alphanumeric

04

Material bonnet

EF025182 - Alphanumeric

05

Nominal diameter

EF023191 - Alphanumeric

06

Outer pipe diameter all connections (mm)

EF020126 - Numeric

07

Connection 1

EF000321 - Alphanumeric

08

Connection 2

EF000322 - Alphanumeric

09

Article compression class

EF020007 - Alphanumeric

10

Flange compression class

EF020149 - Alphanumeric

11

KIWA certified

EF020075 - Logical

12

Gastec QA

EF020074 - Logical

13

Permitted by NCP

EF020076 - Logical

14

Max. pressure difference at 20 °C (bar)

EF020150 - Numeric

15

Max. medium temperature (continuous) (°C)

EF020023 - Numeric

16

Min. medium temperature (continuous) (°C)

EF020077 - Numeric

17

Surface protection

EF000139 - Alphanumeric

18

Internally lined

EF023820 - Alphanumeric

19

Medically clean

EF022628 - Logical

20

Operation

EF002147 - Alphanumeric

21

Right-angled model

EF003645 - Logical

22

Straight bore

EF023843 - Logical

23

Spindle and/or hand wheel rising

EF020025 - Logical

24

Full bore

EF020163 - Logical

25

With position indicator

EF022469 - Logical

26

Zeta value

EF020002 - Numeric

27

Length of connection 1 (mm)

EF020151 - Numeric

28

Working length connection 1 (mm)

EF020153 - Numeric

29

Length of connection 2 (mm)

EF020152 - Numeric

30

Working length connection 2 (mm)

EF020154 - Numeric

31

Standard construction length

EF025181 - Alphanumeric

32

Handle/hand wheel height (mm)

EF020155 - Numeric

33

Length of handle/diameter of hand wheel (mm)

EF020156 - Numeric

34

Angle of the valve (°)

EF020157 - Numeric

35

Spindle angle (°)

EF020158 - Numeric
Synonyms

Diaphragm valve

Duplex diaphragm valve

Duplex membrane valve

Flange valve

Membrane valve

Thread valve

Valve
