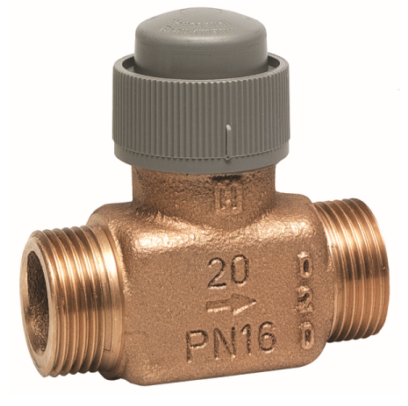

Two way control valve EC011435

Published Valves/taps/controls EG015610

/

Changes since v7

Features 39

1
Housing materialEF001596

Choose one value

AmetalAluminiumBrassBronzeCast ironCopperPlasticStainless steelSteelOther
2
Material qualityEF001257

Choose one value

Ametal-CCuZn21Si3P (CC768S)CuZn21Si3P (CW724R)CuZn40Pb2 (CW617N)CuZn36Pb-C (CC770S)CuSi4Zn4MnP-CCuSi4Zn9MnP-CCuSi4Zn4MnPCuSi4Zn9MnPStainless steel 304 (1.4301)Stainless steel 304 L (1.4306)Stainless steel 316 (1.4401)Stainless steel 316 L (1.4404)Stainless steel 316 Ti (1.4571)Stainless steel 321 (1.4541)Cast steelForged steelAlloyed steelSheet steel (no longer used)Bronze (Rg 5)Zinc-poor bronze (Rg 10)Zinc-free bronze (90/10)Aluminium bronzeDezincification resistant brass (DZR)Cast iron EN-GJL-200 (GG 20)Cast iron EN-GJL-250 (GG 25)Cast iron EN-GJS-400-18 (GGG 40.3)Cast iron EN-GJS-400-15 (GGG 40)Cast iron EN-GJS-500-7 (GGG 50)Acrylonitrile butadiene styrene (ABS)Polycarbonate (PC)Polypropylene (PP)Polybutylene (PB)Polyvinyl chloride (PVC)Polyvinylidene fluoride (PVDF)CuZn36Pb2As (CW602N)Silicon bronzeOther
3
Nominal diameter connection 1EF023193

Choose one value

1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 10DN 121/2 inch (15)DN 153/4 inch (20)DN 201 inch (25)DN 251 1/4 inch (32)DN 321 1/2 inch (40)DN 402 inch (50)DN 502 1/2 inch (65)DN 65DN 703 inch (80)DN 804 inch (100)DN 1005 inch (125)DN 1256 inch (150)DN 150DN 1758 inch (200)DN 20010 inch (250)DN 25012 inch (300)DN 300DN 350M8 x 1.0M10 x 1.0M10 x 1.25M12 x 1.25M12 x 1.5M14 x 1.5M16 x 1.5M18 x 1.5M20 x 1.5M22 x 1.5M24 x 1.5M24 x 2.0M26 x 1.5M27 x 2.0M30 x 2.0M36 x 3.0M45 x 2.0Other
4
Outer pipe diameter connection 1EF020122

A number in mm
5
Connection 1EF000321

Choose one value

Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)FlangeSoldered endSoldered sleeveCutting ringCompression ringClamp connectionWelded endWelded sleevePlastic welded endPlastic welded sleeveElectric welded sleeveLaminateGlued sleeveGlued endGrooveStorzHose pillarPress sleeveWafer typeLug typeOther
6
Contour code connection 1EF013560

Choose one value

UniversalBBEBE/HEDWHAHEHRMM/F (seal)SASCTHTH/BETH/UUUPVSeveralOther
7
With coupling connection 1EF021872

Yes or no

YesNo
8
Nominal diameter connection 2EF020052

Choose one value

1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 10DN 121/2 inch (15)DN 153/4 inch (20)DN 201 inch (25)DN 251 1/4 inch (32)DN 321 1/2 inch (40)DN 402 inch (50)DN 502 1/2 inch (65)DN 65DN 703 inch (80)DN 804 inch (100)DN 1005 inch (125)DN 1256 inch (150)DN 150DN 1758 inch (200)DN 20010 inch (250)DN 25012 inch (300)DN 300DN 350M8 x 1.0M10 x 1.0M10 x 1.25M12 x 1.25M12 x 1.5M14 x 1.5M16 x 1.5M18 x 1.5M20 x 1.5M22 x 1.5M24 x 1.5M24 x 2.0M26 x 1.5M27 x 2.0M30 x 2.0M36 x 3.0M45 x 2.0Other
9
Outer pipe diameter connection 2EF020123

A number in mm
10
Connection 2EF000322

Choose one value

Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread metricInternal thread conical (NPT)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread cylindrical BSPP-G (ISO 228-1)External thread metricExternal thread conical (NPT)FlangeSoldered endSoldered sleeveCutting ringCompression ringClamp connectionWelded endWelded sleevePlastic welded endPlastic welded sleeveElectric welded sleeveLaminateGlued sleeveGlued endGrooveStorzHose pillarPress sleeveOther
11
Contour code connection 2EF013561

Choose one value

UniversalBBEBE/HEDWHAHEHRMM/F (seal)SASCTHTH/BETH/UUUPVSeveralOther
12
With coupling connection 2EF021873

Yes or no

YesNo
13
Article pressure ratingEF020007

Choose one value

PressurelessPN 2.5PN 3.2PN 4PN 6PN 8PN 10PN 12.5PN 16PN 20PN 25PN 32PN 40PN 63PN 100PN 160PN 250PN 320150 mbarOther
14
Flange pressure ratingEF020149

Choose one value

PN 2.5PN 6PN 10PN 16PN 25PN 40PN 63PN 100PN 160PN 250PN 320Other
15
Min. pressure differenceEF020189

A number in bar
16
Max. pressure difference in opened positionEF024113

A number in bar
17
Max. medium temperature (continuous)EF020023

A number in °C
18
Min. medium temperature (continuous)EF020077

A number in °C
19
Surface protectionEF000139

Choose one value

UntreatedCoatedNickel-platedPrimerChromium-platedOther
20
Kvs valueEF022466

A number
21
Leakage loss of Kvs valueEF024114

A number in %
22
Automatic flow controlEF009265

Yes or no

YesNo
23
Kv valueEF021251

A range, from and to
24
With flow measuring pointEF009264

Yes or no

YesNo
25
Characteristic curveEF024116

Choose one value

Equal percentageLinearQuadratic
26
Control ratio (Svo)EF024115

A number in %
27
Stroke lengthEF021866

A number in mm
28
Length of connection 1EF020151

A number in mm
29
Working length connection 1EF020153

A number in mm
30
Length of connection 2EF020152

A number in mm
31
Working length connection 2EF020154

A number in mm
32
Axle heightEF020195

A number in mm
33
Suitable for heatingEF024797

Yes or no

YesNo
34
Suitable for tap waterEF021265

Yes or no

YesNo
35
Suitable for process waterEF014085

Yes or no

YesNo
36
Suitable for coolingEF024798

Yes or no

YesNo
37
DVGW quality mark (no longer used)EFDE0002

Yes or no

YesNo
38
DIN-CERTCO certificateEFDE0006

Yes or no

YesNo
39
Tested according to TÜV GSEFDE0007

Yes or no

YesNo

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
