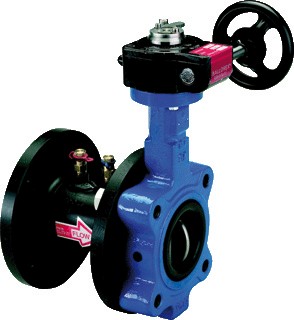

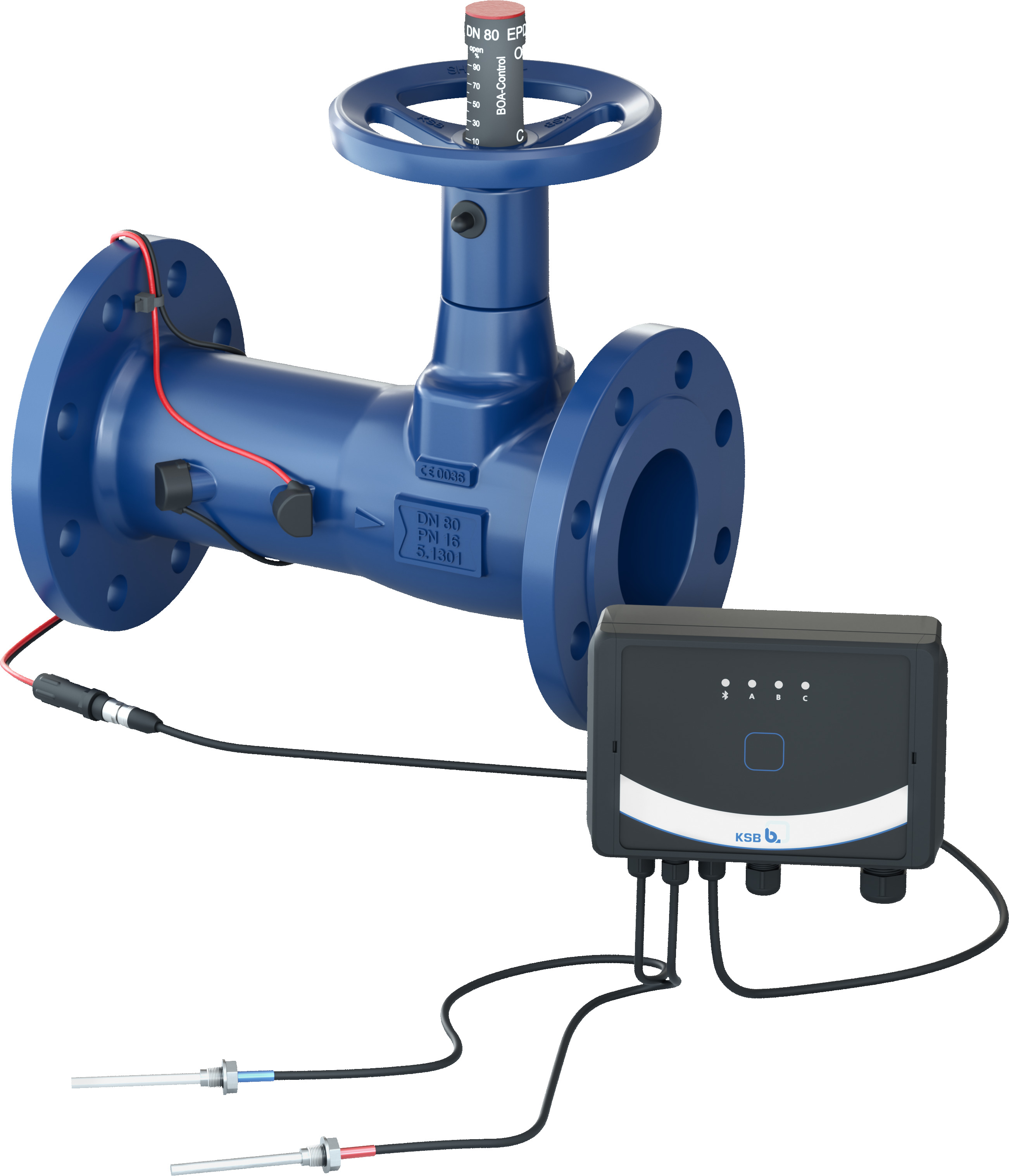

Regulating valve
Code
EC011463Version
Group
Valves/taps/controls (EG015610)Release
ETIM-7.0
Features
01 | Housing material EF022461 - Alphanumeric | |
02 | Material quality EF001257 - Alphanumeric | |
03 | Surface protection EF000139 - Alphanumeric | |
04 | Nominal diameter EF023191 - Alphanumeric | |
05 | Outer pipe diameter (mm) EF006272 - Numeric | |
06 | Connection 1 EF000321 - Alphanumeric | |
07 | With coupling connection 1 EF021872 - Logical | |
08 | Connection 2 EF000322 - Alphanumeric | |
09 | With coupling connection 2 EF021873 - Logical | |
10 | Article pressure rating EF020007 - Alphanumeric | |
11 | Flange pressure rating EF020149 - Alphanumeric | |
12 | Suitable for tap water EF021265 - Logical | |
13 | Suitable for hot tap water EF021195 - Logical | |
14 | Suitable for central heating water EF021280 - Logical | |
15 | Max. pressure difference at 20 °C (bar) EF020150 - Numeric | |
16 | Max. medium temperature (continuous) (°C) EF020023 - Numeric | |
17 | Min. medium temperature (continuous) (°C) EF020077 - Numeric | |
18 | Suitable for manual operation EF002978 - Logical | |
19 | Motor-controlled EF022760 - Logical | |
20 | Thermostatic EF020105 - Logical | |
21 | Type of control gear EF000381 - Alphanumeric | |
22 | With drain valve EF020078 - Logical | |
23 | With thermometer EF002167 - Logical | |
24 | With position indicator EF022469 - Logical | |
25 | With measuring nipples EF022471 - Logical | |
26 | With extended measuring nipples EF020104 - Logical | |
27 | With measuring connector EF020193 - Logical | |
28 | With impulse pipe connection EF020721 - Logical | |
29 | Kv value EF021251 - Range | |
30 | Kvs value EF022466 - Numeric | |
31 | Length of connection 1 (mm) EF020151 - Numeric | |
32 | Working length connection 1 (mm) EF020153 - Numeric | |
33 | Length of connection 2 (mm) EF020152 - Numeric | |
34 | Working length connection 2 (mm) EF020154 - Numeric | |
35 | Height operating element (mm) EF022273 - Numeric | |
36 | Length operating element (mm) EF010484 - Numeric | |
37 | Diameter handwheel (mm) EF010682 - Numeric | |
38 | Spindle angle (°) EF020179 - Numeric | |
39 | KIWA certified EF020075 - Logical |
Synonyms
Adjustable valve for riser
Adjustment valve
Commissioning valve
Double regulating
Manual throttle
Regulating valve
Setting valve
Strang regulating valve
Throttle
Throttle valve
