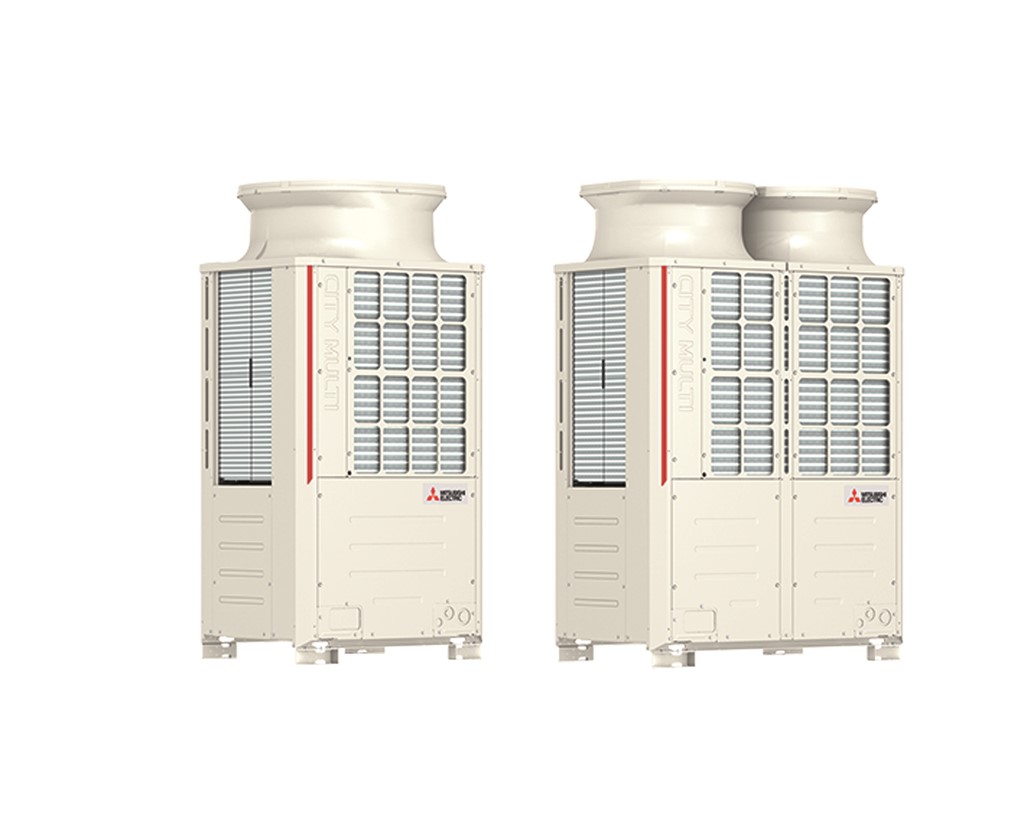

Air-conditioning split system – multi-split condensing unit, air-cooled EC011584

Published Cooling systems EG015230

/

Changes since v1

Features 35

1
Operating principleEF004139

Choose one value

Cooling onlyCooling and heating
2
Number of cooling circuits (compressors)EF024984

A number
3
Suitable for number of indoor unitsEF024991

A number
4
Inverter-controlledEF024944

Yes or no

YesNo
5
VRF model (2-pipe)EF024992

Yes or no

YesNo
6
VRF model (3-pipe)EF024993

Yes or no

YesNo
7
Type of refrigerantEF024945

Choose one value

R22R23R134aR401AR402AR404AR407CR410AR413AR417AR507R290Other
8
Connection voltageEF003625

A number in V
9
Fuse (slow) (no longer used)EF024947

A number in A
10
Cooling input powerEF024948

A range, from and to, in kW
11
Total cooling capacityEF024986

A range, from and to, in kW
12
Heating input powerEF024950

A range, from and to, in kW
13
Total heating capacityEF024994

A range, from and to, in kW
14
EER (cooling)EF024952

A number
15
COP (heating)EF024954

A number
16
Energy efficiency class coolingEF024955

Choose one value

A+++A++A+ABCDEFG
17
Energy efficiency class heatingEF024956

Choose one value

A+++A++A+ABCDEFG
18
Annual cooling energy consumption (500 hours – full load) (no longer used)EF024957

A number in kWh
19
Height outdoor unitEF000868

A number in mm
20
Width outdoor unitEF000869

A number in mm
21
Depth outdoor unitEF000870

A number in mm
22
Sound pressure level outdoor unit (cooling)EF024964

A range, from and to, in dB(A)
23
Sound pressure level outdoor unit (heating)EF024965

A range, from and to, in dB(A)
24
Sound power level outdoor unitEF024966

A range, from and to, in dB(A)
25
Nominal diameter fluid pipeEF024967

Choose one value

1/8 inch1/4 inch3/8 inch1/2 inch3/4 inch7/8 inch5/8 inch1 1/8 inchOther
26
Nominal diameter suction pipeEF020136

Choose one value

1/8 inch1/4 inch3/8 inch1/2 inch5/8 inch3/4 inch7/8 inch1 1/8 inchOther
27
Outer pipe diameter of fluid pipeEF024968

A number in mm
28
Outer pipe diameter suction pipeEF020139

A number in mm
29
Operating temperature for cooling (Dry Bulb)EF024970

A range, from and to, in °C
30
Operating temperature for heating (Wet Bulb)EF024972

A range, from and to, in °C
31
Min. pipe length per circuitEF024987

A number in m
32
Max. pipe length per circuitEF024988

A number in m
33
Max. total pipe lengthEF024989

A number in m
34
Max. height differenceEF024975

A number in m
35
Expansion typeEF024979

Choose one value

InsideOutside

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
