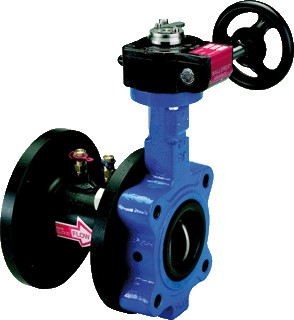

Regulating valve
Code
MC000007Version
Group
Hydronic - Valves and control components (MG000042)Release
Drawing
Features
04 | a | Angle operating shaft (°) EF010537 - Numeric | |
43 | MN1 | Position measuring point 1 (mm) EF010686 - Coordinate | |
44 | MN2 | Position measuring point 2 (mm) EF010687 - Coordinate | |
47 | RV1 | Directional vector point 1 EF010688 - Coordinate | |
48 | RV2 | Directional vector point 2 EF010689 - Coordinate |
Features port 1
01 | Connection 1 EF000321 - Alphanumeric | ||
05 | a1 | Angle to first bolt hole (°) EF010524 - Numeric | |
07 | b1 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
09 | C1 | Height screw gland (mm) EF010040 - Numeric | |
11 | D1 | Outer diameter of flange (mm) EF021531 - Numeric | |
13 | d2-1 | Diameter bolt hole (mm) EF021780 - Numeric | |
15 | d4-1 | Diameter sealing edge (mm) EF010527 - Numeric | |
18 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
20 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
22 | Dr1 | Rim diameter (mm) EF010037 - Numeric | |
26 | f1 | Thickness sealing edge (mm) EF010528 - Numeric | |
28 | g1 | Height screw gland edge (mm) EF010516 - Numeric | |
32 | j1 | Distance to edge (mm) EF010519 - Numeric | |
34 | k1 | Pitch circle (mm) EF021643 - Numeric | |
36 | L1 | Connection length (mm) EF022519 - Numeric | |
45 | n1 | Number of bolt holes EF021779 - Numeric | |
49 | SLW1 | Wrench width (mm) EF000177 - Numeric | |
51 | t1 | Rim thickness (mm) EF010038 - Numeric | |
58 | Z1 | Working length (mm) EF006318 - Numeric |
Features port 2
02 | Connection 2 EF000322 - Alphanumeric | ||
06 | a2 | Angle to first bolt hole (°) EF010524 - Numeric | |
08 | b2 | Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric | |
10 | C2 | Height screw gland (mm) EF010040 - Numeric | |
12 | D2 | Outer diameter of flange (mm) EF021531 - Numeric | |
14 | d2-2 | Diameter bolt hole (mm) EF021780 - Numeric | |
16 | d4-2 | Diameter sealing edge (mm) EF010527 - Numeric | |
19 | DN2 | Nominal diameter EF023191 - Alphanumeric | |
21 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
23 | Dr2 | Rim diameter (mm) EF010037 - Numeric | |
27 | f2 | Thickness sealing edge (mm) EF010528 - Numeric | |
29 | g2 | Height screw gland edge (mm) EF010516 - Numeric | |
33 | j2 | Distance to edge (mm) EF010519 - Numeric | |
35 | k2 | Pitch circle (mm) EF021643 - Numeric | |
37 | L2 | Connection length (mm) EF022519 - Numeric | |
46 | n2 | Number of bolt holes EF021779 - Numeric | |
50 | SLW2 | Wrench width (mm) EF000177 - Numeric | |
52 | t2 | Rim thickness (mm) EF010038 - Numeric | |
59 | Z2 | Working length (mm) EF006318 - Numeric |
Features port 3
03 | Operation EF002147 - Alphanumeric | ||
17 | da3 | Operating shaft diameter (mm) EF010482 - Numeric | |
24 | E3 | Width operating element (mm) EF010479 - Numeric | |
25 | E1-3 | Distance operating shaft to side gearbox (mm) EF010850 - Numeric | |
30 | h1-3 | Axle height (mm) EF020195 - Numeric | |
31 | h2-3 | Offset height handle (mm) EF010518 - Numeric | |
38 | LB3 | Length operating element (mm) EF010484 - Numeric | |
39 | LV3 | Length gearbox (mm) EF010849 - Numeric | |
40 | M1-3 | Shaft distance 1 operating element (mm) EF010480 - Numeric | |
41 | M2-3 | Shaft distance 2 operating element (mm) EF010487 - Numeric | |
42 | M3 | Diameter handwheel (mm) EF010682 - Numeric | |
53 | U | Diameter operating surface (mm) EF010522 - Numeric | |
54 | V | Distance to operating element (mm) EF010523 - Numeric | |
55 | X1-3 | Distance operating shaft to drive shaft (mm) EF010485 - Numeric | |
56 | X2-3 | Distance drive shaft to side gearbox (mm) EF010684 - Numeric | |
57 | Y3 | Height operating element (mm) EF022273 - Numeric |
Related productclasses
Synonyms
Regulating valve
Setting valve
