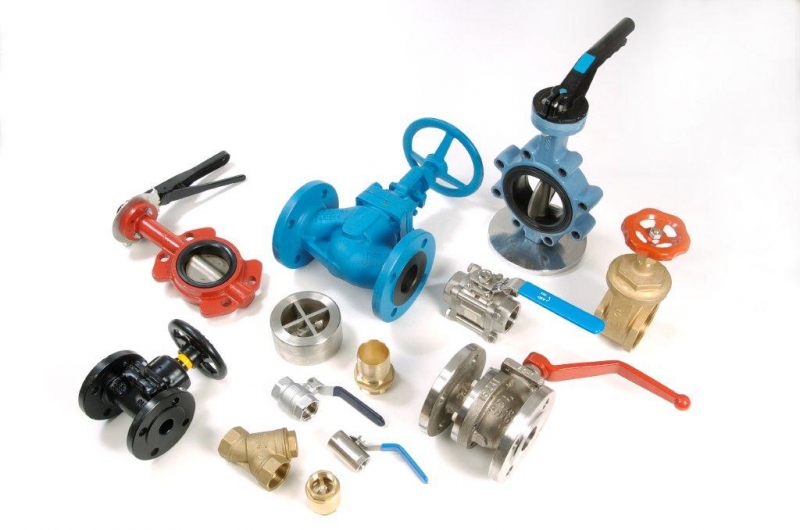

Base valve (with operating element) MC000008

Published
Hydronic - Valves and control components MG000042

Features 62

Class features

  1. 1

    OperationEF002147

    Choose one value

    Electric motorHydraulicPneumaticLever handleHand wheelWorm gearbox
  2. 2

    Angle operating shaftEF010537

    A number in ° · a in drawing

  3. 15

    Operating shaft diameter (no longer used)EF010482

    A number in mm · da in drawing

  4. 22

    Width operating elementEF010479

    A number in mm · E in drawing

  5. 23

    Distance operating shaft to side gearboxEF010850

    A number in mm · E1 in drawing

  6. 28

    Operating height (no longer used)EF010517

    A number in mm · H in drawing

  7. 29

    Axle heightEF020195

    A number in mm · h1 in drawing

  8. 30

    Offset height handleEF010518

    A number in mm · h2 in drawing

  9. 37

    Length operating elementEF010484

    A number in mm · LB in drawing

  10. 38

    Length gearboxEF010849

    A number in mm · LV in drawing

  11. 39

    Diameter handwheelEF010682

    A number in mm · M in drawing

  12. 40

    Shaft distance 1 operating elementEF010480

    A number in mm · M1 in drawing

  13. 41

    Shaft distance 2 operating elementEF010487

    A number in mm · M2 in drawing

  14. 54

    Diameter operating surfaceEF010522

    A number in mm · U in drawing

  15. 55

    Distance to operating elementEF010523

    A number in mm · V in drawing

  16. 56

    Distance operating shaft to drive shaftEF010485

    A number in mm · X1 in drawing

  17. 57

    Distance drive shaft to side gearboxEF010684

    A number in mm · X2 in drawing

  18. 58

    Height operating elementEF022273

    A number in mm · Y in drawing

Port 1

  1. 3

    Angle to first bolt holeEF010524

    A number in ° · a1 in drawing

  2. 5

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b1 in drawing

  3. 7

    Height screw glandEF010040

    A number in mm · C1 in drawing

  4. 9

    Outer diameter of flangeEF021531

    A number in mm · D1 in drawing

  5. 11

    Diameter bolt holeEF021780

    A number in mm · d2-1 in drawing

  6. 13

    Diameter sealing edgeEF010527

    A number in mm · d4-1 in drawing

  7. 16

    Nominal diameterEF023191

    Choose one value · DN1 in drawing

    1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 10DN 121/2 inch (15)DN 153/4 inch (20)
  8. 18

    Outer pipe diameter connectionEF020208

    A number in mm · Do1 in drawing

  9. 20

    Rim diameterEF010037

    A number in mm · Dr1 in drawing

  10. 24

    Thickness sealing edgeEF010528

    A number in mm · f1 in drawing

  11. 26

    Height screw gland edgeEF010516

    A number in mm · g1 in drawing

  12. 31

    Distance to edgeEF010519

    A number in mm · j1 in drawing

  13. 33

    Pitch circleEF021643

    A number in mm · k1 in drawing

  14. 35

    Length of connection 1EF020151

    A number in mm · L1 in drawing

  15. 42

    Number of bolt holesEF021779

    A number · n1 in drawing

  16. 44

    Sleeve length (no longer used)EF010520

    A number in mm · P1 in drawing

  17. 46

    Length gusset/threadEF010521

    A number in mm · Q1 in drawing

  18. 48

    Wall thickness connectionEF010546

    A number in mm · s1 in drawing

  19. 50

    Wrench widthEF000177

    A number in mm · SLW1 in drawing

  20. 52

    Rim thicknessEF010038

    A number in mm · t1 in drawing

  21. 59

    Working length connection 1EF020153

    A number in mm · Z1 in drawing

  22. 61

    Connection 1EF000321

    Choose one value

    Internal thread conical (NPT)Internal thread flare (UNF)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread metricExternal thread conical (NPT)External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metric

Port 2

  1. 4

    Angle to first bolt holeEF010524

    A number in ° · a2 in drawing

  2. 6

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b2 in drawing

  3. 8

    Height screw glandEF010040

    A number in mm · C2 in drawing

  4. 10

    Outer diameter of flangeEF021531

    A number in mm · D2 in drawing

  5. 12

    Diameter bolt holeEF021780

    A number in mm · d2-2 in drawing

  6. 14

    Diameter sealing edgeEF010527

    A number in mm · d4-2 in drawing

  7. 17

    Nominal diameterEF023191

    Choose one value · DN2 in drawing

    1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 10DN 121/2 inch (15)DN 153/4 inch (20)
  8. 19

    Outer pipe diameter connectionEF020208

    A number in mm · Do2 in drawing

  9. 21

    Rim diameterEF010037

    A number in mm · Dr2 in drawing

  10. 25

    Thickness sealing edgeEF010528

    A number in mm · f2 in drawing

  11. 27

    Height screw gland edgeEF010516

    A number in mm · g2 in drawing

  12. 32

    Distance to edgeEF010519

    A number in mm · j2 in drawing

  13. 34

    Pitch circleEF021643

    A number in mm · k2 in drawing

  14. 36

    Length of connection 2EF020152

    A number in mm · L2 in drawing

  15. 43

    Number of bolt holesEF021779

    A number · n2 in drawing

  16. 45

    Sleeve length (no longer used)EF010520

    A number in mm · P2 in drawing

  17. 47

    Length gusset/threadEF010521

    A number in mm · Q2 in drawing

  18. 49

    Wall thickness connectionEF010546

    A number in mm · s2 in drawing

  19. 51

    Wrench widthEF000177

    A number in mm · SLW2 in drawing

  20. 53

    Rim thicknessEF010038

    A number in mm · t2 in drawing

  21. 60

    Working length connection 2EF020154

    A number in mm · Z2 in drawing

  22. 62

    Connection 2EF000322

    Choose one value

    Internal thread conical (NPT)Internal thread flare (UNF)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread metricExternal thread conical (NPT)External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metric

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
