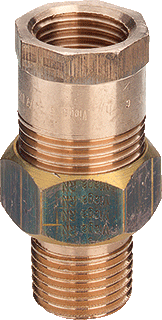

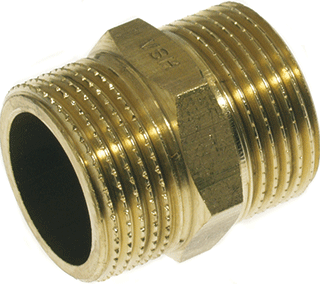

Base conduit coupling with spanner plane
Code
MC000012Version
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
01 | Model EF000010 - Alphanumeric | ||
12 | h | Height spanner plane (mm) EF010694 - Numeric | |
17 | SLW | Wrench width (mm) EF000177 - Numeric |
Features port 1
02 | C1 | Height screw gland (mm) EF010040 - Numeric | |
04 | DN1 | Nominal diameter connection 1 EF023193 - Alphanumeric | |
06 | Do1 | Outer pipe diameter connection 1 (mm) EF020122 - Numeric | |
08 | Dr1 | Rim diameter (mm) EF010037 - Numeric | |
10 | g1 | Height screw gland edge (mm) EF010516 - Numeric | |
13 | j1 | Distance to edge (mm) EF010519 - Numeric | |
15 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
18 | SLW1 | Wrench width union nut (mm) EF022259 - Numeric | |
20 | t1 | Rim thickness (mm) EF010038 - Numeric | |
22 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
24 | Connection 1 EF000321 - Alphanumeric |
Features port 2
03 | C2 | Height screw gland (mm) EF010040 - Numeric | |
05 | DN2 | Nominal diameter connection 2 EF020052 - Alphanumeric | |
07 | Do2 | Outer pipe diameter connection 2 (mm) EF020123 - Numeric | |
09 | Dr2 | Rim diameter (mm) EF010037 - Numeric | |
11 | g2 | Height screw gland edge (mm) EF010516 - Numeric | |
14 | j2 | Distance to edge (mm) EF010519 - Numeric | |
16 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
19 | SLW2 | Wrench width union nut (mm) EF022259 - Numeric | |
21 | t2 | Rim thickness (mm) EF010038 - Numeric | |
23 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
25 | Connection 2 EF000322 - Alphanumeric |
Related productclasses
Synonyms
Base conduit coupling with spanner plane
Fitting with 2 connections
