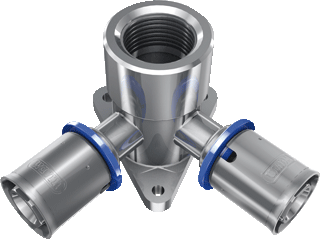

Wall plate continuous right-angled
Code
MC000024Version
Group
Fittings, flanges and adaptors (MG000023)Release
Drawing
Features
01 | Shape EF000051 - Alphanumeric | ||
02 | a | Mutual angle of the holes (°) EF010156 - Numeric | |
05 | D | Diameter wall plate (mm) EF010155 - Numeric | |
16 | H1 | Distance wall plate to connection (mm) EF010696 - Numeric | |
21 | Le1 | Length from wall plate (mm) EF020417 - Numeric | |
22 | n | Number of holes EF026414 - Numeric | |
28 | r | Radius to centre holes (mm) EF010157 - Numeric |
Features port 1
03 | C1 | Height screw gland (mm) EF010040 - Numeric | |
06 | DN1 | Nominal diameter EF023191 - Alphanumeric | |
09 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
12 | Dr1 | Rim diameter (mm) EF010037 - Numeric | |
14 | g1 | Height screw gland edge (mm) EF010516 - Numeric | |
17 | j1 | Distance to edge (mm) EF010519 - Numeric | |
19 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
23 | P1 | Sleeve length (mm) EF010520 - Numeric | |
26 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
29 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
31 | SLW1 | Wrench width union nut (mm) EF022259 - Numeric | |
33 | t1 | Rim thickness (mm) EF010038 - Numeric | |
35 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
38 | Connection EF000443 - Alphanumeric |
Features port 2
04 | C2 | Height screw gland (mm) EF010040 - Numeric | |
07 | DN2 | Nominal diameter EF023191 - Alphanumeric | |
10 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
13 | Dr2 | Rim diameter (mm) EF010037 - Numeric | |
15 | g2 | Height screw gland edge (mm) EF010516 - Numeric | |
18 | j2 | Distance to edge (mm) EF010519 - Numeric | |
20 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
24 | P2 | Sleeve length (mm) EF010520 - Numeric | |
27 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
30 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
32 | SLW2 | Wrench width union nut (mm) EF022259 - Numeric | |
34 | t2 | Rim thickness (mm) EF010038 - Numeric | |
36 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
39 | Connection EF000443 - Alphanumeric |
Features port 3
08 | DN3 | Thread size tap connection EF010681 - Alphanumeric | |
11 | Do3 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
25 | P3 | Sleeve length (mm) EF010520 - Numeric | |
37 | Z3 | Working length connection 3 (mm) EF020160 - Numeric | |
40 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Wall plate
Wall plate continuous right-angled
