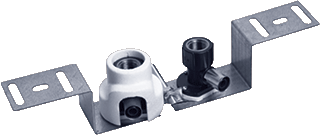

Wall plate on bracket (receding) double
Code
MC000028Version
Group
Piping - Pipe fittings, flanges and adaptors (MG000023)Release
Drawing
Features
01 | Model EF000010 - Alphanumeric | ||
16 | H1 | Distance wall plate to connection (mm) EF010696 - Numeric | |
17 | Hg1 | Height wall bracket (mm) EF010698 - Numeric | |
22 | Le1 | Length wall bracket (mm) EF010699 - Numeric | |
23 | Le2 | Distance centre-to-centre (mm) EF020200 - Numeric | |
24 | Le3 | Length wall bracket bridge (mm) EF010700 - Numeric | |
25 | Le4 | Depth wall bracket bridge (mm) EF010701 - Numeric | |
26 | Le5 | Length from wall plate (mm) EF020417 - Numeric | |
33 | s | Wall plate thickness (mm) EF010043 - Numeric |
Features port 1
02 | C1 | Height screw gland (mm) EF010040 - Numeric | |
04 | DN1 | Nominal diameter connection EF025620 - Alphanumeric | |
08 | Do1 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
12 | Dr1 | Rim diameter (mm) EF010037 - Numeric | |
14 | g1 | Height screw gland edge (mm) EF010516 - Numeric | |
18 | j1 | Distance to edge (mm) EF010519 - Numeric | |
20 | L1 | Length of connection 1 (mm) EF020151 - Numeric | |
27 | P1 | Sleeve length (mm) EF010520 - Numeric | |
31 | Q1 | Length gusset/thread (mm) EF010521 - Numeric | |
34 | s1 | Wall thickness connection (mm) EF010546 - Numeric | |
36 | SLW1 | Wrench width union nut (mm) EF022259 - Numeric | |
38 | t1 | Rim thickness (mm) EF010038 - Numeric | |
40 | Z1 | Working length connection 1 (mm) EF020153 - Numeric | |
44 | Connection EF000443 - Alphanumeric |
Features port 2
03 | C2 | Height screw gland (mm) EF010040 - Numeric | |
05 | DN2 | Nominal diameter connection EF025620 - Alphanumeric | |
09 | Do2 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
13 | Dr2 | Rim diameter (mm) EF010037 - Numeric | |
15 | g2 | Height screw gland edge (mm) EF010516 - Numeric | |
19 | j2 | Distance to edge (mm) EF010519 - Numeric | |
21 | L2 | Length of connection 2 (mm) EF020152 - Numeric | |
28 | P2 | Sleeve length (mm) EF010520 - Numeric | |
32 | Q2 | Length gusset/thread (mm) EF010521 - Numeric | |
35 | s2 | Wall thickness connection (mm) EF010546 - Numeric | |
37 | SLW2 | Wrench width union nut (mm) EF022259 - Numeric | |
39 | t2 | Rim thickness (mm) EF010038 - Numeric | |
41 | Z2 | Working length connection 2 (mm) EF020154 - Numeric | |
45 | Connection EF000443 - Alphanumeric |
Features port 3
06 | DN3 | Thread size tap connection EF010681 - Alphanumeric | |
10 | Do3 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
29 | P3 | Sleeve length (mm) EF010520 - Numeric | |
42 | Z3 | Working length connection 3 (mm) EF020160 - Numeric | |
46 | Connection EF000443 - Alphanumeric |
Features port 4
07 | DN4 | Thread size tap connection EF010681 - Alphanumeric | |
11 | Do4 | Outer pipe diameter connection (mm) EF020208 - Numeric | |
30 | P4 | Sleeve length (mm) EF010520 - Numeric | |
43 | Z4 | Working length connection 4 (mm) EF020168 - Numeric | |
47 | Connection EF000443 - Alphanumeric |
Related productclasses
Synonyms
Wall plate on bracket
Wall plate on bracket (receding) double
