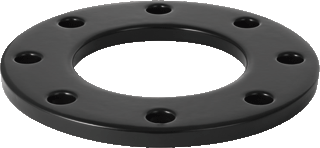

Loose plate flange

Code

MC000031

Piping - Pipe fittings, flanges and adaptors (MG000023)

Drawing

Features

01	a	Angle to first bolt hole (°) EF010524 - Numeric
02	b	Thickness flange (mm) EF020225 - Numeric
03	D	Outer diameter of flange (mm) EF021531 - Numeric
04	d2	Diameter bolt hole (mm) EF021780 - Numeric
05	DB	Inner diameter of push-on flange (mm) EF020226 - Numeric
06	DN	Nominal diameter EF023191 - Alphanumeric
07	k	Pitch circle (mm) EF021643 - Numeric
08	n	Number of bolt holes EF021779 - Numeric

Features port 1

Connection 1

EF000321 - Alphanumeric

Features port 2

Connection 2

EF000322 - Alphanumeric

Related productclasses

Synonyms

Loose plate flange
