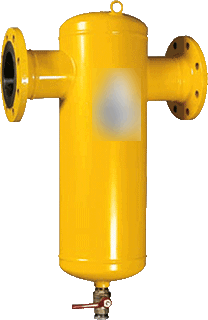

Dirt separator (horizontal) for heating/cooling system

Code

MC000038

Piping - Filtration and separators (MG000022)

Drawing

Features

01		Separator type EF020768 - Alphanumeric
02		Model EF000010 - Alphanumeric
09	D	Diameter (mm) EF000551 - Numeric
28	H1	Height (mm) EF000040 - Numeric
29	H2	Distance connection to bottom side vessel (mm) EF010711 - Numeric
30	H3	Distance to bottom side drain (mm) EF010865 - Numeric

Features port 1

03	a1	Angle to first bolt hole (°) EF010524 - Numeric
05	b1	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
07	C1	Height screw gland (mm) EF010040 - Numeric
10	D1	Outer diameter of flange (mm) EF021531 - Numeric
12	d2-1	Diameter bolt hole (mm) EF021780 - Numeric
14	d4-1	Diameter sealing edge (mm) EF010527 - Numeric
16	DN1	Nominal diameter EF023191 - Alphanumeric
18	Do1	Outer pipe diameter (mm) EF006272 - Numeric
20	Dr1	Rim diameter (mm) EF010037 - Numeric
22	ex1	Distance eccentricity (mm) EF010762 - Numeric
24	f1	Thickness sealing edge (mm) EF010528 - Numeric
26	g1	Height screw gland edge (mm) EF010516 - Numeric
31	k1	Pitch circle (mm) EF021643 - Numeric
33	L1	Connection length (mm) EF022519 - Numeric
35	n1	Number of bolt holes EF021779 - Numeric
37	P1	Sleeve length (mm) EF010520 - Numeric
39	Q1	Length gusset/thread (mm) EF010521 - Numeric
41	s1	Wall thickness connection (mm) EF010546 - Numeric
43	SLW1	Wrench width union nut (mm) EF022259 - Numeric
45	Z1	Working length (mm) EF006318 - Numeric
47		Connection EF000443 - Alphanumeric

Features port 2

04	a2	Angle to first bolt hole (°) EF010524 - Numeric
06	b2	Thickness flange (incl. sealing edge) (mm) EF010525 - Numeric
08	C2	Height screw gland (mm) EF010040 - Numeric
11	D2	Outer diameter of flange (mm) EF021531 - Numeric
13	d2-2	Diameter bolt hole (mm) EF021780 - Numeric
15	d4-2	Diameter sealing edge (mm) EF010527 - Numeric
17	DN2	Nominal diameter EF023191 - Alphanumeric
19	Do2	Outer pipe diameter (mm) EF006272 - Numeric
21	Dr2	Rim diameter (mm) EF010037 - Numeric
23	ex2	Distance eccentricity (mm) EF010762 - Numeric
25	f2	Thickness sealing edge (mm) EF010528 - Numeric
27	g2	Height screw gland edge (mm) EF010516 - Numeric
32	k2	Pitch circle (mm) EF021643 - Numeric
34	L2	Connection length (mm) EF022519 - Numeric
36	n2	Number of bolt holes EF021779 - Numeric
38	P2	Sleeve length (mm) EF010520 - Numeric
40	Q2	Length gusset/thread (mm) EF010521 - Numeric
42	s2	Wall thickness connection (mm) EF010546 - Numeric
44	SLW2	Wrench width union nut (mm) EF022259 - Numeric
46	Z2	Working length (mm) EF006318 - Numeric
48		Connection EF000443 - Alphanumeric

Related productclasses

Synonyms

Dirt separator (horizontal) for heating/cooling system

Dirt separator for CH/cooling system
