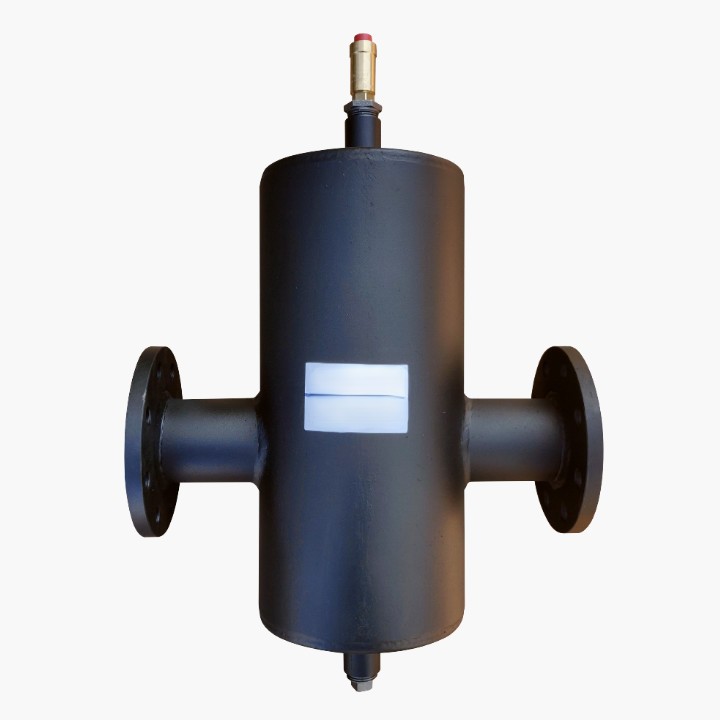

Air separator (horizontal) for heating/cooling system MC000039

Published
Piping - Filtration and separators MG000022

Features 49

Class features

  1. 1

    Separator typeEF020768

    Choose one value

    Air
  2. 2

    ModelEF000010

    Choose one value

    Horizontal
  3. 9

    DiameterEF000551

    A number in mm · D in drawing

  4. 28

    HeightEF000040

    A number in mm · H1 in drawing

  5. 29

    Distance connection to bottom side vesselEF010711

    A number in mm · H2 in drawing

  6. 30

    Distance connection to top side vesselEF010714

    A number in mm · H3 in drawing

Port 1

  1. 3

    Angle to first bolt holeEF010524

    A number in ° · a1 in drawing

  2. 5

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b1 in drawing

  3. 7

    Height screw glandEF010040

    A number in mm · C1 in drawing

  4. 10

    Outer diameter of flangeEF021531

    A number in mm · D1 in drawing

  5. 12

    Diameter bolt holeEF021780

    A number in mm · d2-1 in drawing

  6. 14

    Diameter sealing edgeEF010527

    A number in mm · d4-1 in drawing

  7. 16

    Nominal diameterEF023191

    Choose one value · DN1 in drawing

    1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 101/2 inch (15)DN 153/4 inch (20)DN 20
  8. 18

    Outer pipe diameterEF006272

    A number in mm · Do1 in drawing

  9. 20

    Rim diameterEF010037

    A number in mm · Dr1 in drawing

  10. 22

    Distance eccentricityEF010762

    A number in mm · ex1 in drawing

  11. 24

    Thickness sealing edgeEF010528

    A number in mm · f1 in drawing

  12. 26

    Height screw gland edgeEF010516

    A number in mm · g1 in drawing

  13. 32

    Pitch circleEF021643

    A number in mm · k1 in drawing

  14. 34

    Connection lengthEF022519

    A number in mm · L1 in drawing

  15. 36

    Number of bolt holesEF021779

    A number · n1 in drawing

  16. 38

    Sleeve length (no longer used)EF010520

    A number in mm · P1 in drawing

  17. 40

    Length gusset/threadEF010521

    A number in mm · Q1 in drawing

  18. 42

    Wall thickness connectionEF010546

    A number in mm · s1 in drawing

  19. 44

    Wrench width union nutEF022259

    A number in mm · SLW1 in drawing

  20. 46

    Working lengthEF006318

    A number in mm · Z1 in drawing

  21. 48

    ConnectionEF000443

    Choose one value

    Internal thread flare (UNF)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread metricInternal thread conical (NPT)External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metricExternal thread conical (NPT)

Port 2

  1. 4

    Angle to first bolt holeEF010524

    A number in ° · a2 in drawing

  2. 6

    Thickness flange (incl. sealing edge)EF010525

    A number in mm · b2 in drawing

  3. 8

    Height screw glandEF010040

    A number in mm · C2 in drawing

  4. 11

    Outer diameter of flangeEF021531

    A number in mm · D2 in drawing

  5. 13

    Diameter bolt holeEF021780

    A number in mm · d2-2 in drawing

  6. 15

    Diameter sealing edgeEF010527

    A number in mm · d4-2 in drawing

  7. 17

    Nominal diameterEF023191

    Choose one value · DN2 in drawing

    1/8 inch (6)DN 61/4 inch (8)DN 83/8 inch (10)DN 101/2 inch (15)DN 153/4 inch (20)DN 20
  8. 19

    Outer pipe diameterEF006272

    A number in mm · Do2 in drawing

  9. 21

    Rim diameterEF010037

    A number in mm · Dr2 in drawing

  10. 23

    Distance eccentricityEF010762

    A number in mm · ex2 in drawing

  11. 25

    Thickness sealing edgeEF010528

    A number in mm · f2 in drawing

  12. 27

    Height screw gland edgeEF010516

    A number in mm · g2 in drawing

  13. 31

    Centre distance connectionEF010827

    A number in mm · H4 in drawing

  14. 33

    Pitch circleEF021643

    A number in mm · k2 in drawing

  15. 35

    Connection lengthEF022519

    A number in mm · L2 in drawing

  16. 37

    Number of bolt holesEF021779

    A number · n2 in drawing

  17. 39

    Sleeve length (no longer used)EF010520

    A number in mm · P2 in drawing

  18. 41

    Length gusset/threadEF010521

    A number in mm · Q2 in drawing

  19. 43

    Wall thickness connectionEF010546

    A number in mm · s2 in drawing

  20. 45

    Wrench width union nutEF022259

    A number in mm · SLW2 in drawing

  21. 47

    Working lengthEF006318

    A number in mm · Z2 in drawing

  22. 49

    ConnectionEF000443

    Choose one value

    Internal thread flare (UNF)Internal thread cylindrical BSPP-G (ISO 228-1)Internal thread conical BSPT-Rc (ISO 7-1 / EN 10226-1)Internal thread metricInternal thread conical (NPT)External thread flare (UNF)External thread cylindrical BSPP-G (ISO 228-1)External thread conical BSPT-R (ISO 7-1 / EN 10226-1)External thread metricExternal thread conical (NPT)

Codes after each name are ETIM feature codes. Use them, not the names, in product data.
